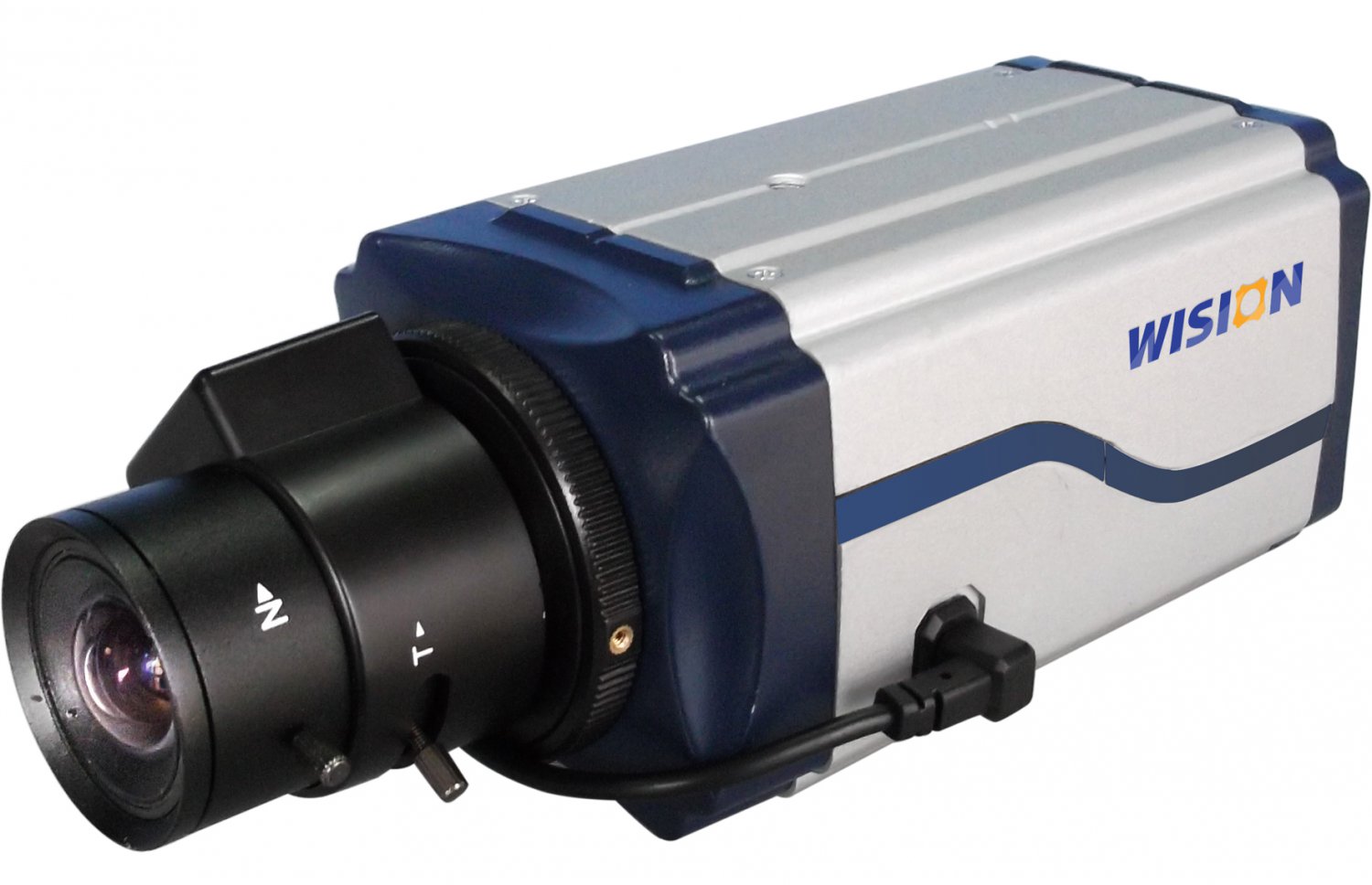

5 Megapixels HD Network Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
＊ Up to 5MP; up to 2592*1920 resolutions; output complete real-time FULL HD1080P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; built-in SD Card slot; multiple network storage protocols supported
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ AC 24V, DC 12V, POE
Application Scene
Applicable to the finance, telecommunications, supermarkets, hotels, government, schools, airports, factories, public security, justice, transportation, museums, safe cities and other places where ultra-high quality is required.
Ordering Model
WS-A8P31-A（DC12V/AC24V）, WS-A8P31-P（DC12V/POE）
Parameters
Model WS-A8P31
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/2.5” 5M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens C/CS
Auto Iris DC Drive
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711，Two way Audio; support audio and video sync
Image Max.Size 2592 x 1920
Resolution& Frame Rate 10fps(2592 x 1920), 20fps(2048 x 1536), 30fps(1920 x 1080P)
30fps(1280 x 720P)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage SD/SDHC, MAX32G
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch,the pickup input supported
Audio Output 1ch, connecting headphones or amplifier supported
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 2ch
Alarm Output 1ch
Video Output (analog) CVBS 1Vp-p Composite Output(75Ω/BNC)
GeneralSpecification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply AC 24V, DC 12V, POE
Power Consumption Max.3W
Dimension（mm） 140mm(L)×72mm(W)×66mm(H)
Installment Methods Optional
Weight about 397g
Ordering Model WS-A8P31-A / WS-A8P31-P
