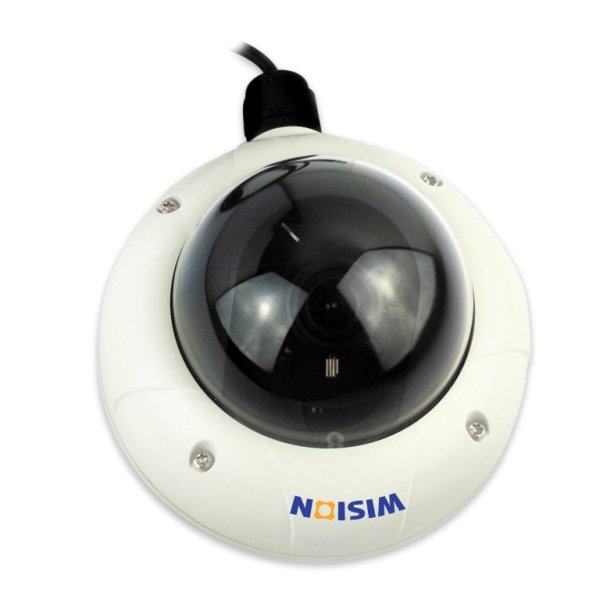

3 Megapixels HD WDR Dome IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* Up to 3MP and resolution 2048×1536; excellent low illumination; output full HD 1080p images
* H.264 Compression, dual streaming, mobile surveillance; Support browsers such as IE,Firfox, Chrome; compatible with various smart Phone operating system;
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
* Multi users browsing at one time; system online upgrade
* Abnormal auto-recovery, network interrupt auto-connected
* Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
* Support AWB and AGC; support analog video output
* 3 Axis adjustment design makes installation more convenient
Application Scene：
Applicable to hotels, supermarkets, offices, corridors, stairs and other indoor places where ultra-high quality, WDR, low illumination are required.
Ordering Model:
WS--C8R2328
Product dimension
Parameters
Model WS-C8R2328
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 3.1M Pixels, Progressive WDR low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2
SNR ＞50dB(SNR); >100dB(WDR)
Shutter 1/5-1/50,000sec
Lens 4mm / 6mm
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 2048 x 1536
Resolution& Frame Rate 20fps(2048 x 1536), 30fps(1600 x 1200), 30fps(1920 x 1080)
30fps(1280 x 720)
OSD Control Channel Name, Date and time Information Superimposition supported,
Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input —
Alarm Output —
General
Specification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V /1. 5A
Power Consumption Max.10W
Dimension（mm） Ø151mm×135mm
Installment Methods Ceiling mount
Weight about 1190g
* Up to 3MP and resolution 2048×1536; excellent low illumination; output full HD 1080p images
* H.264 Compression, dual streaming, mobile surveillance; Support browsers such as IE,Firfox, Chrome; compatible with various smart Phone operating system;
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
* Multi users browsing at one time; system online upgrade
* Abnormal auto-recovery, network interrupt auto-connected
* Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
* Support AWB and AGC; support analog video output
* 3 Axis adjustment design makes installation more convenient
Application Scene：
Applicable to hotels, supermarkets, offices, corridors, stairs and other indoor places where ultra-high quality, WDR, low illumination are required.
Ordering Model:
WS--C8R2328
Product dimension
Parameters
Model WS-C8R2328
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 3.1M Pixels, Progressive WDR low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2
SNR ＞50dB(SNR); >100dB(WDR)
Shutter 1/5-1/50,000sec
Lens 4mm / 6mm
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 2048 x 1536
Resolution& Frame Rate 20fps(2048 x 1536), 30fps(1600 x 1200), 30fps(1920 x 1080)
30fps(1280 x 720)
OSD Control Channel Name, Date and time Information Superimposition supported,
Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input —
Alarm Output —
General
Specification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V /1. 5A
Power Consumption Max.10W
Dimension（mm） Ø151mm×135mm
Installment Methods Ceiling mount
Weight about 1190g
