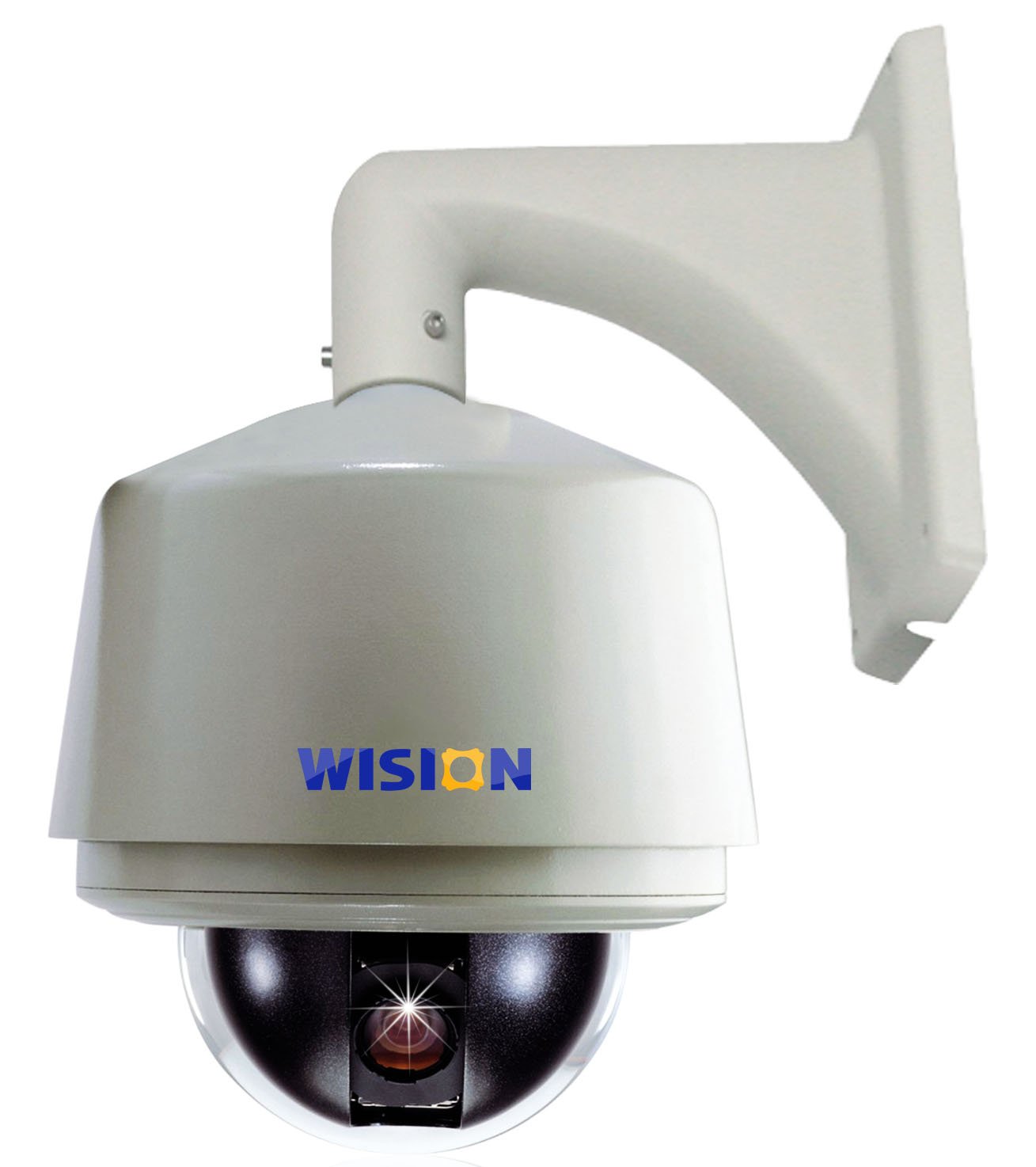

2 Megapixels HD IP IR High Speed Dome Camera

Features
＊ TI SOC Chipset; Built-in (ARM9＋DSP）and high speed video processor
＊ Optimized H.264 Compression; support HD, D1, CIF triple streaming output at one time; mobile surveillance; compatible with various smart Phone operating system
＊ UP to 2MP and resolution of 1080P (1920*1080)
＊ Power infrared light, 120 meters of infrared night vision distance
＊ Infrared lamp uses classification and grouping light adjustment control matching with lens zooming to
ensure that images are clear with any multiple
＊ To control by viewing image effect via IE browser and client software
＊ Support user rights management and transparent transmission protocol
＊ Support protocols such as HTTP, TCP/IP, DHCP, DNS, UDP, RTSP, ANNP, etc.
＊ Provide heartbeat, video lost, motion detection (Area, Sensitivity Selectable)
＊ Built-in thermal dissipation system to reduce the temperature of the inner cavity and prevent from fogging
＊ Built-in Chinese and English OSD screen menu
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ PC terminal can edit camera title and relative information online
＊ Support display of 20 Chinese characters English letters of each line
＊ Power off memory function; when restart, it can back to the position or status before power off;
timing automatic activation function: it can be set that when the camera idle for a while, it
automatically invoke the preset point
＊ Auto cruise, pattern scan, auto scan and display area; built-in 400V lightning protection, anti-surge
and anti-surge protection; and all-weather cover
＊ Precision motor-driven, quick response, smooth running, accuracy deviation of less than 0.1 degrees;
image jitter-free at any speed
Application Scene
It can be widely used in HD monitoring places with no light or low light, such as rivers, forests, highways, railways, airports, ports, sentry, squares, parks, scenic areas, streets, railway stations, large venues etc..
Parameters
Model WS-D9838H
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/2.8” 2M Pixels, Progressive CMOS
Min.Lux Color: 1.8Lux/F1.2; B/W:0.02Lux/F1.6
SNR ＞50dB
Shutter 1/5-1/50,000sec
AGC Auto, manual
BLC BLC(ON/OFF)
Focus Length 4.7-94mm, 20x optical zoom
PTZ Parameters Horizontal Range 360°continuous rotation
Vertical Range 0° ～ 90° /s
Horizontal Speed 0.1° ～ 200° /s
Vertical Speed 0.1° ～ 100° /s
Cruise Scan 8 lines with each line has 16 preset position;
Video and Audio Specification Bit Rate 64 Kbps-12Mbps
Video Compression H.264
Audio Compression G.711
Max.Size 1920 x 1080
Resolution& Frame Rate 30fps(1920 x 1080), 30fps(1280 x 720)
30fps(640 x 352), 30fps(352 x 192)
Function OSD Control Channel Name, Date and time Information Superimposition supported, Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
PTZ Protocol WISION, PELCO-P/D
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password protected, OSD Technology
GeneralSpecification Network Interface RJ45 10M/100M self adaptive Ethernet
Power Supply AC24V / 3A
Power Consumption Max. 34W
Temperature Control Working Range Fan 35℃
Working Temperature -30℃～60℃
Working Humidity 30%-90% RH
Dimension Ø210mm×317mm
Installment Methods Wall and lifting optional
Weight about 4500g
