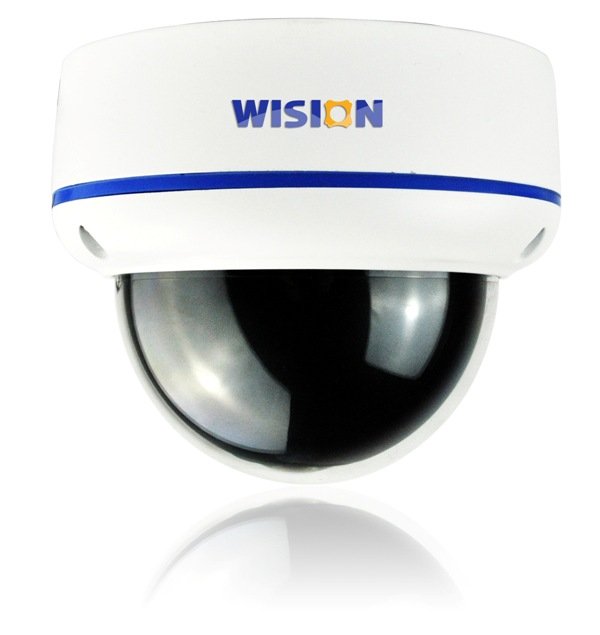

5 Megapixels HD Panorama IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* 5MP，Up to 2592×1920，output complete real-time FULL HD1080P images
* H.264 Compression; triple code stream; support browsers such as IE、Firfox、Chrome; compatible with smart phone operation platform such as iPhone, Android etc.
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
* Multi users browsing at one time; system online upgrade
* 360 degree monitoring without any blind spot; cost saving-one F8P31 equals fours ordinary cameras; flexible image distortion correction and virtual PTZ
* Better heat insulation performance; suitable for environment
* AWB and AGC
* Abnormal auto-recovery, network interrupt auto-connected
* Support ONVIF; Wall or ceiling installation
Application Scene
Applicable to the finance, supermarkets,hotels,governments, schools, airports,factories,public security, justice, subway, meseum and other places where ultra-high quality and vandal-proof are required.
Ordering Model
WS-F8P31
Product dimension
Parameters
Model WS-WS-F8P31
Camera Processor TI single chip SOC：built-in（ARM9＋DSP）and high-speed video processor
Image Sensor 1/2.5 Inch 5M progressive CMOS
Min.Lux Color:1Lux/F1.2, B/W: 0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5 sec. to 1/50,000 sec.
Lens Interface C/CS
ICR Built-in ICR
Lens 1/2 Inch Focal length:1.55mm; Filed angle:185 degree
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps~12Mbps
Audio Compression G.711
Image Max.Size 10fps (2592x1920),20fps (2048x1536)
Resolution& Frame Rate 30fps (1920x1080)(1080P),30fps (1280x720)(720P)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable; reversible color
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Intelligent Alarm Motion detection, off net, I/O alarm
Network Protocol HTTP、TCP/IP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF，PSIA
General Functions Reset button, Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch
Alarm Output 1ch
GeneralSpecification Temperature&Humidity -10℃～+50℃ 30%～90%RH
Power Supply DC12V/1.5A
Vandal-proof level IEC60068-2-75 test，Eh，50J；EN50102，more than IK10
Defend level IP65
Installation Wall or ceiling
Power Consumption Max. 3.3W
Dimension（mm） ￠100*80mm
Weight 0.44KG
