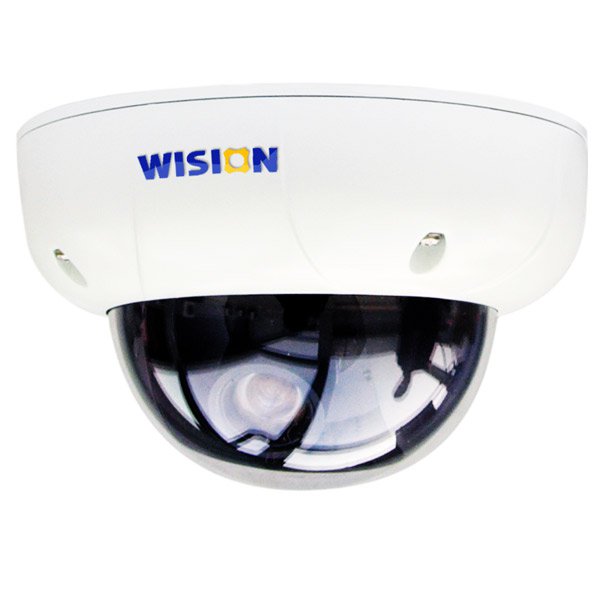

Megapixel HD Low Illumination Vari-focusing Vandal-proof Dome IP Camera

Features
＊ Up to 1.3MP and resolution 1280*720; excellent low illumination; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC
＊ Vandal-proof grade: 1K10
＊ Adjustable lens focal length and flexible monitoring scene
＊ 3 Axis adjustment design makes installation more convenient
＊ DC12V, POE
Application Scene
Applicable to Department of public security organs, hotels, supermarkets, offices, corridors, stairs and other places where ultra-high quality and vandal-proof are required.
Ordering Model
WS-C5M2328-Z（DC12V）, WS-C5M2328-PZ（DC12V/POE）
Parameters
Model WS-C5M2328
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 1.3M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.01Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens 3-12mm/F1.4
IR Distance —
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280x720
Resolution& Frame Rate 30fps(1280x720), 30fps(640x352), 30fps(352x192)
30fps(1280x720)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input —
Alarm Output —
Video Output (analog) —
GeneralSpecifications Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V 1. 5A/ POE
Power Consumption Max.3W
Dimension（mm） Ø151mm×135mm
Installment Methods Ceiling mount
Weight about 1190g
