$1.00
Add to Cart

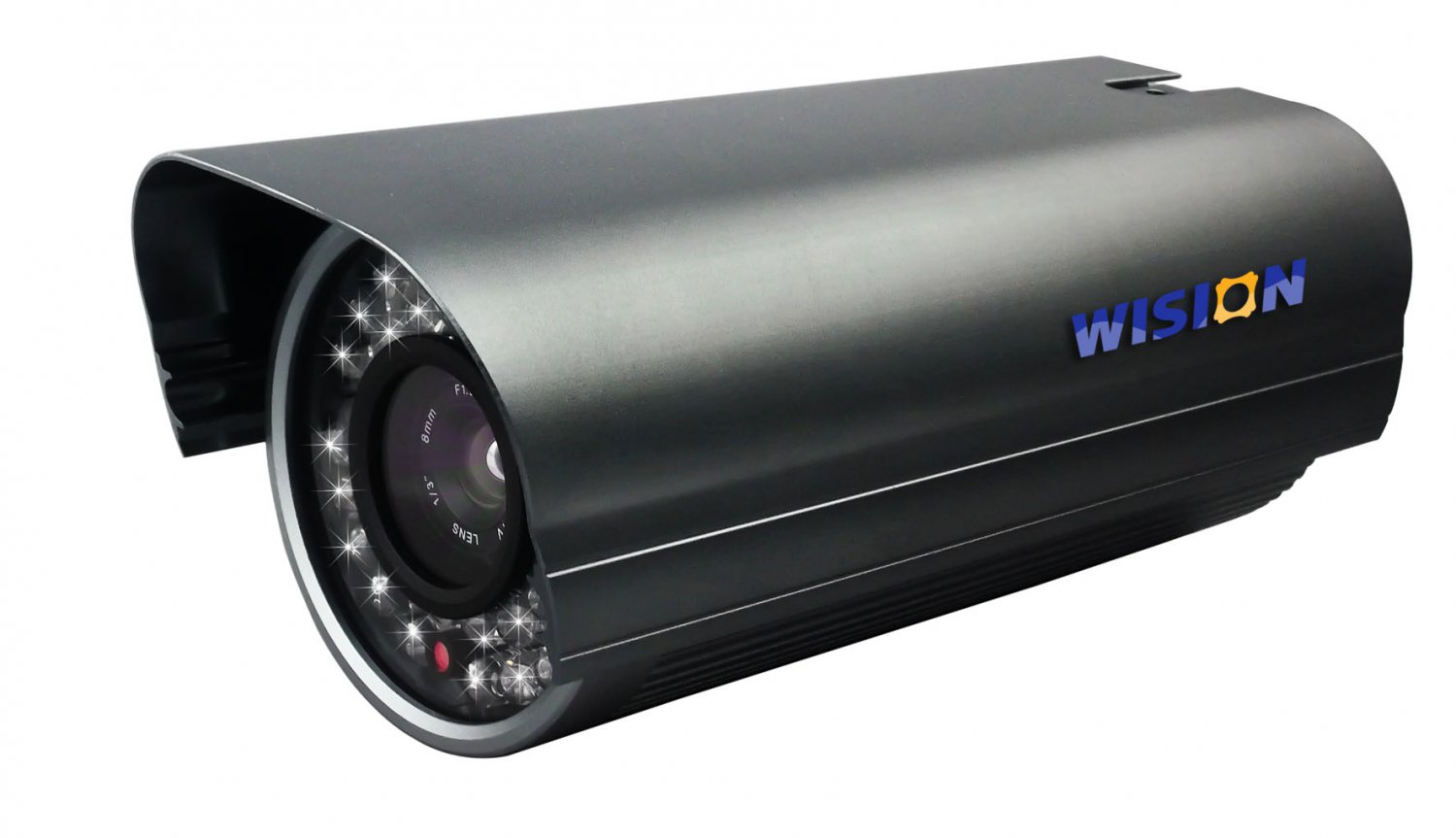

Megapixel HD IR IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
＊ Up to 1280*720 resolutions; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; multiple network storage protocols supported
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ IP66-rated waterproof and dustproof design, high reliability and safety;
＊ CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
＊ Built-in long-life, high efficiency infrared emission components; non-spherical IR lens brings sharp and clear images without distorting.
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality and low illumination are required.
Ordering Model
WS-B5V12-06（6mm lens），WS-B5V12-08（8mm lens）
Parameters
Model WS-B5V12
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/4” 1M Pixels, Progressive CMOS
Min.Lux Color: 1Lux/F1.2; B/W:0.1Lux/F1.2 (IR OFF), 0Lux/F1.2 (IR ON)
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR 6mm / 8mm
Auto Iris / Lens 36 IR lamp; 20m
Day&Night Electronic or ICR
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF, PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input —
Alarm Output —
Video Output (analog) —
GeneralSpecifications Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V / 1.5A
Power Consumption Max.10W
Dimension（mm） 245mm(L)×100mm(W)×93mm(H)
Installment Methods Optional
Weight about 1950g
