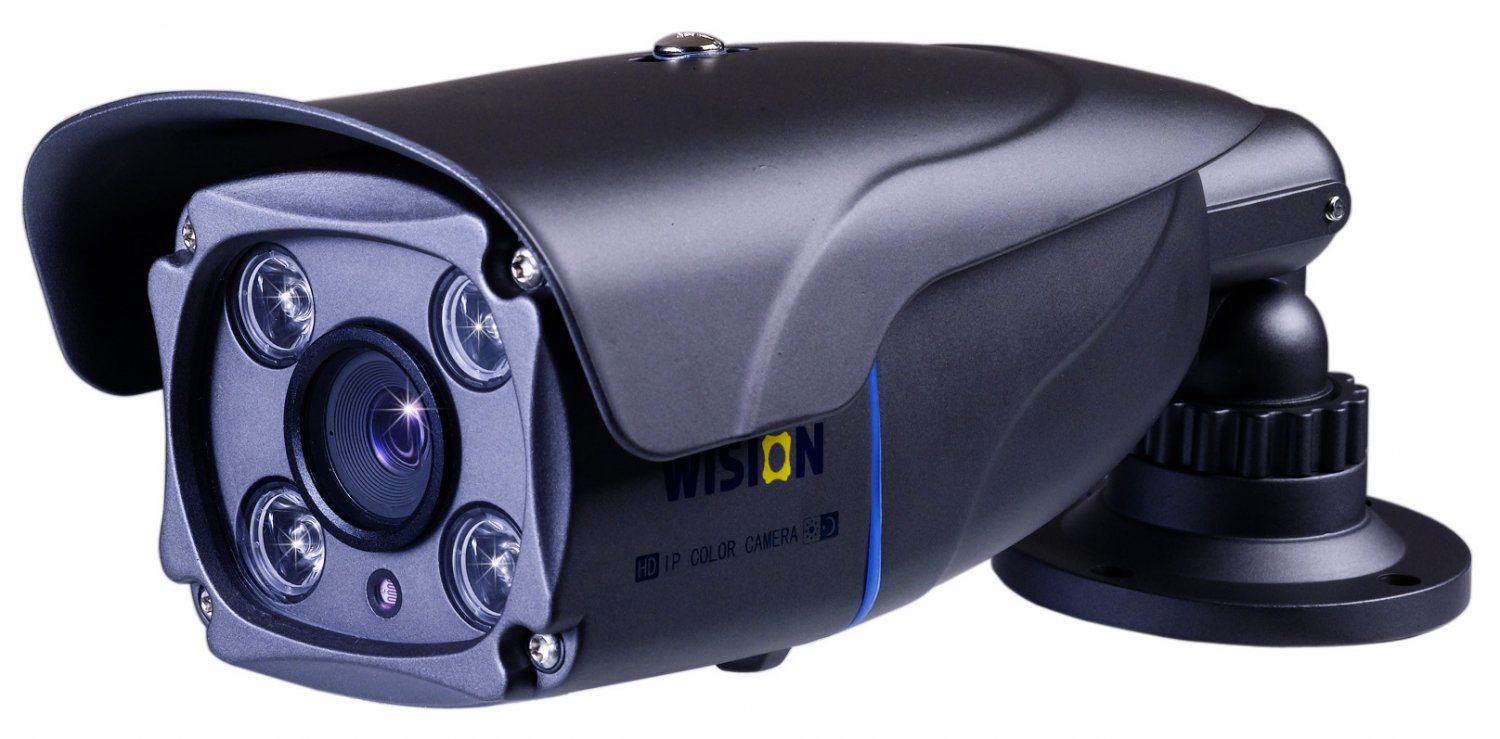

2.0 Megapixel IR IP Camera

Features

* High Sensitivity、High S/N Ratio 1/2.5″Low Illumination Progressive CMOS
* TI(Texas Instrument) SOC Chipset，Built-in (ARM9＋DSP）and High Speed Video Processor
* Max Video Output up to 5.0 Megapixel ，Resolutiion 1080P ( 1920*1080)
* Built-in Long Life and Efficient Infrared Array Components
* Non-spherical Lens, Sharp Clear Image W/O Distorting
* CDS Light Control, IR-CUT Dual Filter Auto Switching and Delay Technology, Ture
D/N Surveillance
* H.264 Compression，Tripple Streaming，Mobile Surveillance，Multi Smart Phone Operating
System Supported
* Built-in Web Server, Standard Internet Explorer Real Time Borwsing and Configuration
Setting Management
* Maximum Support 10 Users Browsing
* 10M/100M Adaptive Ethernet
* Network Storage, Multi Network Storage Protocol Supported
* RS485 connector，Transparent Transmission Protocol
* Abnormal Auto Recovery, Network Interrupt Auto Connetction
* Remote Online F/W Upgrade


Product dimension


Parameters
Model
WS-B5P31
Camera
Image Sensor 1080P, Waterproof IR Bullet IPC
Effective Pixels 1/2.5” 5M Pixels Progressive, CMOS
Min.Lux Color: [email protected]; B/W:[email protected]
optical lens 6mm/8mm/16mm
Angle of view 43.60" /33.40" /17.06"
Auto Eletronic Shutter 1/5-1/50000 sec(manual mode)
1/25-1/2000 sec(outo mode)
Day&Night Auto . 4High Power IR LEDs
IR Distance 25m
WDR -
Audio/Video
Video Compression H.264/MJPEG
Audio Compression G,711,Two way Audio,optional
Bit Rate 64Kbps - 12Mbps
Resolution&Frame Rate 1080P@20fps,720P@30fps,640*352,352*192
Multi-code stream Triple 720P/VGA/CIF & Dual 1080P/CIF
Color Brightness,Saturation,Contrast(Adjustable)
Motion Detection Support
Network
Browser IE 6.0 and above
Network Protocol HTTP / TCP/ IP / DHCP/ DNS/ UDP/ RTSP/ ANNP ,etc
Software Free client software
Onvif Compliant
Interface
Alarm I/O 2/1
Network Interface Rj45 10M/100M self adaptive Ethernet;RS485
Serial Communication Interface
RS485
Other
Power Supply DC12V / 3A POE
Dimension（mm） 317mm(L)×119mm(W)×102mm(H)
Weight 940g
0perating Temperatuer -10℃~50℃
0perating Humidity 30%-90%
