$1.00
Add to Cart

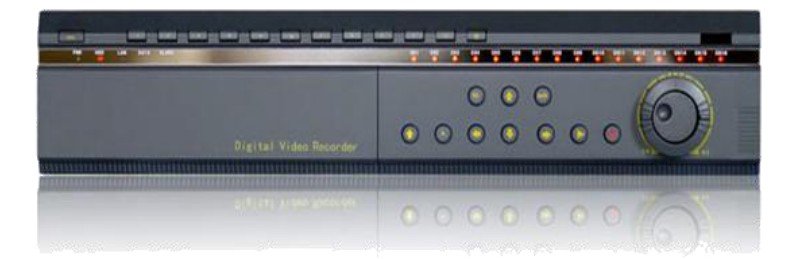

16ch HD NVR
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
﹡H.264 encoding, up to 32ch@D1 or 16ch HD camera connection
﹡Support SD, HD camera connection to achieve HD real-time monitoring;
﹡Standard 2U thermally efficient chassis design, built-in 8 hard drive, support rack / desktop installation;
﹡Embedded Linux operating system, proprietary file system with database, quicker query and retrieve and better data security
﹡TV, VGA sync output display, outstanding HD menu interface design, maximum resolution up to 1440 × 900, 19-inch LCD perfect point-to-point display
﹡Can be extended to support the HDMI interface, audio and video composite output
﹡Plug and play network; built-in professional dynamic DNS service, global access; SMTP, SSL E-mail alerts; JPEG capture and mail sending
﹡Dual-stream technology, direct connection between mobile phones and monitor
Brief Introduction
Equipped with a wealth of network application protocol, and can be connected to various types of HD and SD network camera, to achieve HD video monitoring and storage; Either as an embedded DVR video surveillance system control center,or be networked to form a powerful security guard system, suitable for business, education, finance, energy, electric power, public security, safe city professional security video surveillance.
Parameters
Model WS-9816G
Operation System Embedded Linux system
Audio/Video Input CVBS Input 16ch
BNC Interface(1.0Vp-p,75ohms), PAL/NTSC optional
IPC Input (NVR Mode) 32ch D1, 16ch 720P, 6ch 1080P
IPC Input (Mixed Mode) 16ch CIF, 12CH 720P, 6ch 1080P
Protocol ONVIF
Audio Input (Local) 16ch
BNC Interface(3.3Vp-p,4.7Kohms)
Voice Intercom 1ch independent voice intercom input
Audio/Video Output CVBS Output 1 ch, BNC Interface(1.0Vp-p,75ohms)
VGA 1ch, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 optional
HDMI Optional, 1.3a standard
Audio Output 2ch, BNC Interface(3.3Vp-p,4.7Kohms), one of them is vooice intercom output
Loop-through Output Optional
Audio/Video Codec Real-time Monitoring Resolution Local Channel D1; Networl Channel D1，720P，1080P
Video Codec Standard H.264/MPEG 4 AVC, Support up to Main Profile 3.0
Encoding Resolution 720P
Video Frame Rate Local Channel: 1~25 fps/PAL, 1~30 fps/NTSC; Network Channel: 1~30fps/D1, 1~30fps/720p, 1~30 fps/ 1080p
Encoding Control Limited bit rate, variable bit rate optional
Video Bit Rate Local Channel: 48Kbps~2048Kbps; Network Channel Resolution D1: max 2Mbps; 720p: max 4Mbps; 1080p: max 8Mbps
Code Stream Type Composite stream/ Vedio stream
Audio Encoding Standard Local Channel: G．711A；Network Channel: G.711A，G.711U，G.726，AAC
Audio Bit Rate Local Channel: 64Kbps; Network Channel: 16~128Kbps
Dual-stream Auxiliary Stream CIF/QCIF are optional in Local Channel
Playback Channel (NVR Mode) Max 16ch D1,9ch 720p,or 4ch 1080p sync playback
Playback Channel (Mixed Mode) Max 16ch D1,4ch 720p,or 2ch 1080p sync playback
Voice intercom Two-way voice intercom function
others Dynamic Detection Each screen can set 396(22x18）detection areas;Multi-level sensitivity can be set
Obscured Block Each channel supports four region obscured blocks
Image Capture Support JEPG capture
HDD Number of SATA Interface 8
External Interface Network Interface 1 RJ45 (10M/100M/1000M) self-adaptive Ethernet port
USB Interface 2 USB ports(1 on the front-panel, 1 on the rear panel)
Alarm Iutput 16ch
Switch Value
Alarm Output 4ch
Relay NO、NC
RS-232 1ch DB-9
RS-485 1 ch, half duplex
Size Height:2U, 445x440x89（mm）
Weight 7.5Kg(HDD excluded)
Installation Rack mount, desk mount
Electrical Performance Power Supply 220V±10% 47Hz~63Hz
Working Temperature -10℃ ～ ＋55℃
Working Humidity 10％--90％
Consumption 40W(HDD excluded)
Note 1、NVR mode and mixed mode are selectable 2、IPC needs to support dual-stream；It is recommended that SD IPC auxiliary stream to be CIF @ 25p or CIF @ 30p, HD IPC auxiliary stream to be D1 @ 25p or D1 @ 30p
