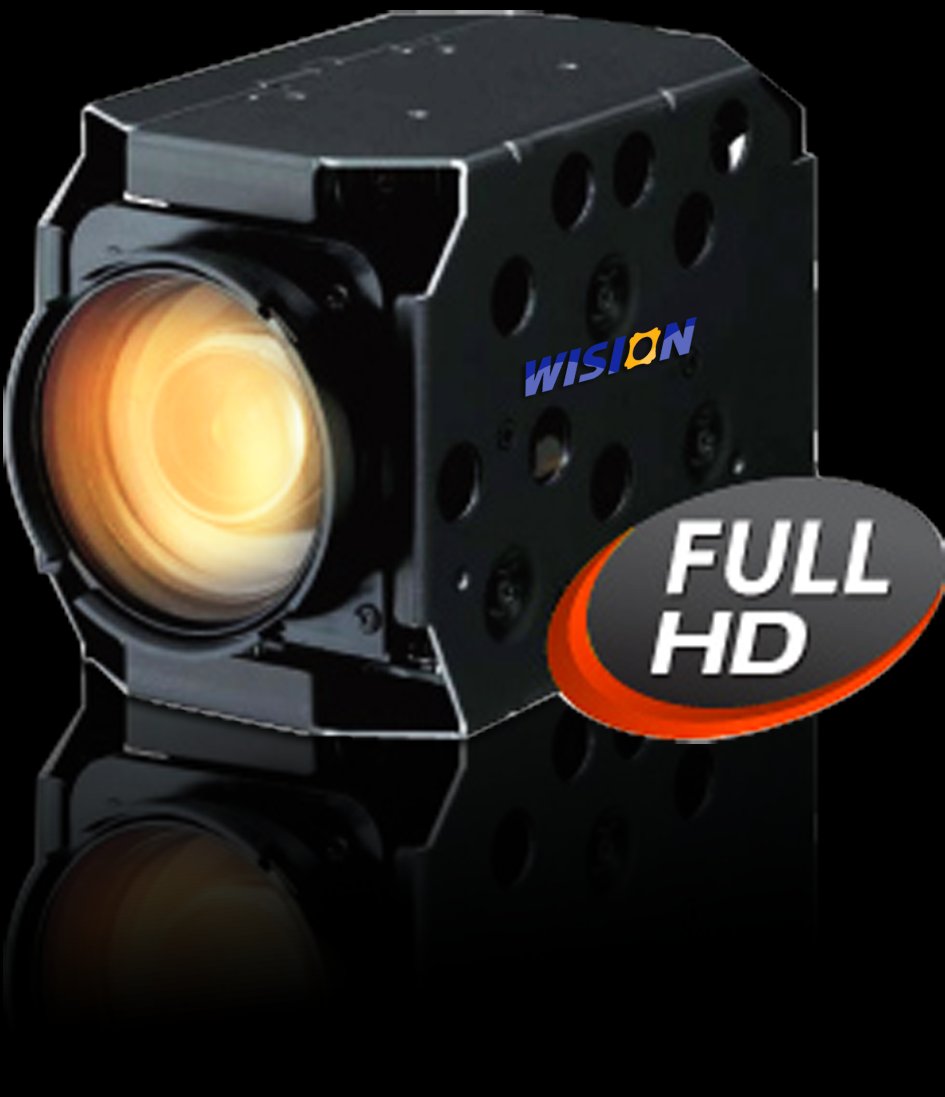

3 Megapixels HD WDR Intergrated Module
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
﹡Up to 3MP and resolution of 2048 x 1536; excellent WDR, low illumination effect; output complete real-time FULL HD1080P images
﹡18x optical zoom, 12x digital zoom; WDR >100dB
﹡Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
﹡High level of integration, real single DSP network HD integrated movement which can directly output the H.264 network coding format data;
﹡High compatibility; support the network H.264 coded data; the YUV encoded data can be output directly;
﹡High performance, independent R&D 3A image processing technology can not only achieve superior image color performance, efficient focusing, also support customization functions development, to meet the needs of market differentiation;
﹡Multi users browsing at one time; system online upgrade
﹡IR-CUT filter auto switching; auto color to black; true D/N monitoring
﹡PTZ control, alarm, audio, digital NR, privacy mask
﹡Uses auto-focus, exposure, auto white balance algorithm that has complete independent intellectual property rights
Application Scene
Applicable to high speed dome and intergrated monitoring market. Ideal choice for Safe City, highway, railway, airport, port, army and other places where the requirement for security is high.
Parameters
Model WS-Z18300
Sensor 3.1M,Progressive, WDR, Low Illumination, CMOS
Effective Pixels 2048(horizontal) x 1536(vertical)
Video Frame Rate 2048 x 1536@30fps; 1920 x 1080@30fps; 1280 x 720@30fps
Min. Lux Color: 0.1Lux@ (F1.2 , AGC ON); B/W: 0.01@ (F1.2 , AGC ON)
Day & Night ICR
SNR >50dB
Focal Length 18x optical zoom, fw=4.70 ± 0.235mm (±5%), ft=84.6 ± 4.23mm (±5%)
Digital Zoom Max x12
Zoom Speed About 2 sec. ( optical, wide angle - telescopic)
Horizontal Viewing Angle 67.3-4.0 degree (wide angle - telescopic)
Near Record Distance 10mm (wide angle); 1500mm (telescopic)
Iris Value Fw=1:1.6 ± 0.08 (±5%) Ft=1:2.8 ± 0.14 (±5%)
OSD Display OFF/ON (20x12 Character)
WDR >100dB
Exposure Mode Auto/manual
Shutter 1/5 - 1/50000 sec
Automatic Gain Support
Slow Shutter Support
50hz/60hz anti-flicker Support
White Balance Auto/manual/Daylight/Shade/Indoor/Incandescent
Focus Mode Auto/semi-auto(focus when the environment change greatly)/manual
Color/ Black and White Auto/Color/ Black and White
Private Mask OFF/ON, max 8 area
Sharpness Adjustable
Image Mirroring Horizontal/vertical
Digital NR Support
Contrast Ratio Adjustable
Saturation Adjustable
Image Freeze OFF/ON
Communication Interface Nine core interface, compatible with the common protocol
Temperature&Humidity -10℃～60℃; humidity:
