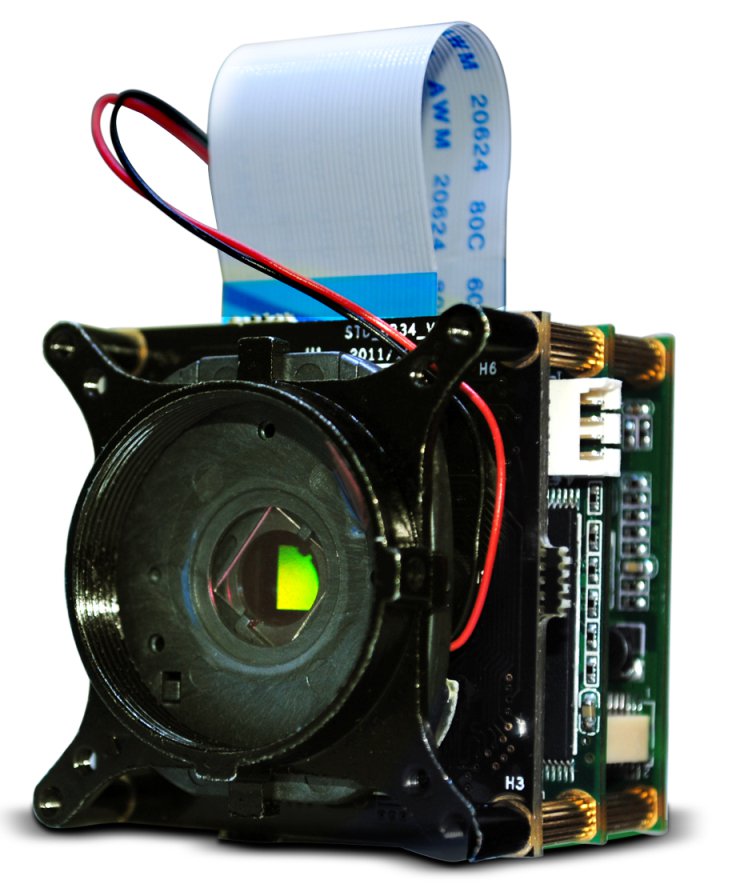

3 Megapixel HD WDR IP Camera Module
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* Up to 3 megapixels; 2048 x 1536 resolutuon; output complete real-time FULL HD 1080P images；* H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system ；* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)；* Multi users browsing at one time; system online upgrade; support 1600x1200(4:3) display mode;* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control；* AWB and AGC and CVBS Video output；* Abnormal auto-recovery, network interrupt auto-connected* 38mm x 38mm standard size design, compact appearance, simple structure; suitable for a variety of housing, easy to install* Embedded RTOS, high-performance DSP, pure hardware compression,and longer life；* Provide centralized management client freely; Provide CS platform for large scale system which support various storage platform.
Parameters
Parameters
Processor TI Single Chip SOC
Image Sensor 1/3" 3.1M Pixels CMOS
Min.Lux Color: 0.1Lux @ F1.2, B/W: [email protected]
IR-Cut Support
Shutter Control 1/5-1/50,000 sec
Lens C/CS
Auto Iris DC Drive
Day&Night Electronic or ICR
Compression
Video Compression H.264/M-JPEG
Bite Rate 64 Kbps~12Mbps
Audio Compression G.711
Max. Size 2048×1536
Resolution& Frame Rate 20fps 2048×1536
30fps 1600×1200(1080P)
30fps 1920×1080(1080P)
30fps 1280×720(720P)
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network
Storage SD/SDHC 32G
Intelligent Alarm Motion，Interruption Network，Alarm I/O
Network Protocol Support HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF、PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password-protected, OSD Technology
Interface
Audio Input 1ch,Level:3.3Vp-p,12dB Gain Amplification, Audio Input(ADC),WDR:70dB,Sample Rate:8kHZ
Audio Output 1ch, Audio Signal Output WDR:70dB, Connecting Amplifier
Network Interface RJ45-10/100M self adaptive Ethernet，RS485
Alarm Input 1ch
Alarm Output 1ch
Video Output An Analog Video Output, Support CVBS Standard, PAL / NTSC Optional
Power Supply DC12V/POE
* Up to 3 megapixels; 2048 x 1536 resolutuon; output complete real-time FULL HD 1080P images；* H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system ；* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)；* Multi users browsing at one time; system online upgrade; support 1600x1200(4:3) display mode;* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control；* AWB and AGC and CVBS Video output；* Abnormal auto-recovery, network interrupt auto-connected* 38mm x 38mm standard size design, compact appearance, simple structure; suitable for a variety of housing, easy to install* Embedded RTOS, high-performance DSP, pure hardware compression,and longer life；* Provide centralized management client freely; Provide CS platform for large scale system which support various storage platform.
Parameters
Parameters
Processor TI Single Chip SOC
Image Sensor 1/3" 3.1M Pixels CMOS
Min.Lux Color: 0.1Lux @ F1.2, B/W: [email protected]
IR-Cut Support
Shutter Control 1/5-1/50,000 sec
Lens C/CS
Auto Iris DC Drive
Day&Night Electronic or ICR
Compression
Video Compression H.264/M-JPEG
Bite Rate 64 Kbps~12Mbps
Audio Compression G.711
Max. Size 2048×1536
Resolution& Frame Rate 20fps 2048×1536
30fps 1600×1200(1080P)
30fps 1920×1080(1080P)
30fps 1280×720(720P)
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network
Storage SD/SDHC 32G
Intelligent Alarm Motion，Interruption Network，Alarm I/O
Network Protocol Support HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF、PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password-protected, OSD Technology
Interface
Audio Input 1ch,Level:3.3Vp-p,12dB Gain Amplification, Audio Input(ADC),WDR:70dB,Sample Rate:8kHZ
Audio Output 1ch, Audio Signal Output WDR:70dB, Connecting Amplifier
Network Interface RJ45-10/100M self adaptive Ethernet，RS485
Alarm Input 1ch
Alarm Output 1ch
Video Output An Analog Video Output, Support CVBS Standard, PAL / NTSC Optional
Power Supply DC12V/POE
