Parameters

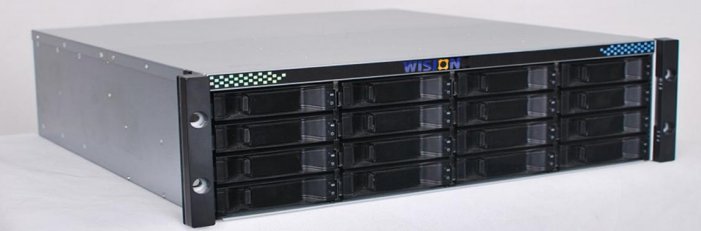

Name IP-SAN
Module IPS316
RAID Technical Features RAID Level RAID 0/1/1E/10/5/6/50/60 support global and designated hot spare
System Characteristic write hole prevent、read-write detection mechanism；Disk error handling, SMART hard disk status summary; online capacity expansion, RAID level migration, advanced data migration technology, PDM PerfectRAID error processing, array recovery technology, recalibration of bad sectors.
Hardware xor, automatic RAID rebuilding Yes
Support number of logical volumes (LUN) 256
Number of logical volumes per array (LUN) 32
Common Features Host channel 4 1Gb iSCSI host interface
Number of slot in HDD 16
Disc Interfaces 16 SAS/SATAII interface channel with rate of 300MB/s
Max. number of HDD 112（support 6 expansion cabinets cascade）
Extended Channel single channel SAS port (×4) SFF-8088 mini-SAS
HDD capacity 300G/450G/600GB SAS HDD OR 500G/750G/1T/2TB SATAII enterprise-class HDD
Max. storage of a machine 9.6TB（600GB SAS HDD）or 32TB（2TB SATAII HDD）
Max. storage capacity 67.2TB（600GB SAS HDD）or 224TB（2TB SATAII HDD）
Other Features Dimension Standard 3U 19 inch rack-mounted 131.1 mm （H）×446.1 mm （W）×461 mm（D）
Weight 15Kg (only machine) 、24.6 Kg (include HDD)
Working Environment Temperature: 5℃～40℃ (-40℃～60℃ when not operating)；Relative humidity: under 95%
Power Source Specification 90～264 VAC, 47～63Hz；8A (100V AC); 4A (240V AC)
Redundant Power Source Two sets of 450W、90-264V auto detection w/PFC、hot plug and backup design
Authentications CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL,TUV
Name IP-SAN
Module IPS316
RAID Technical Features RAID Level RAID 0/1/1E/10/5/6/50/60 support global and designated hot spare
System Characteristic write hole prevent、read-write detection mechanism；Disk error handling, SMART hard disk status summary; online capacity expansion, RAID level migration, advanced data migration technology, PDM PerfectRAID error processing, array recovery technology, recalibration of bad sectors.
Hardware xor, automatic RAID rebuilding Yes
Support number of logical volumes (LUN) 256
Number of logical volumes per array (LUN) 32
Common Features Host channel 4 1Gb iSCSI host interface
Number of slot in HDD 16
Disc Interfaces 16 SAS/SATAII interface channel with rate of 300MB/s
Max. number of HDD 112（support 6 expansion cabinets cascade）
Extended Channel single channel SAS port (×4) SFF-8088 mini-SAS
HDD capacity 300G/450G/600GB SAS HDD OR 500G/750G/1T/2TB SATAII enterprise-class HDD
Max. storage of a machine 9.6TB（600GB SAS HDD）or 32TB（2TB SATAII HDD）
Max. storage capacity 67.2TB（600GB SAS HDD）or 224TB（2TB SATAII HDD）
Other Features Dimension Standard 3U 19 inch rack-mounted 131.1 mm （H）×446.1 mm （W）×461 mm（D）
Weight 15Kg (only machine) 、24.6 Kg (include HDD)
Working Environment Temperature: 5℃～40℃ (-40℃～60℃ when not operating)；Relative humidity: under 95%
Power Source Specification 90～264 VAC, 47～63Hz；8A (100V AC); 4A (240V AC)
Redundant Power Source Two sets of 450W、90-264V auto detection w/PFC、hot plug and backup design
Authentications CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL,TUV
