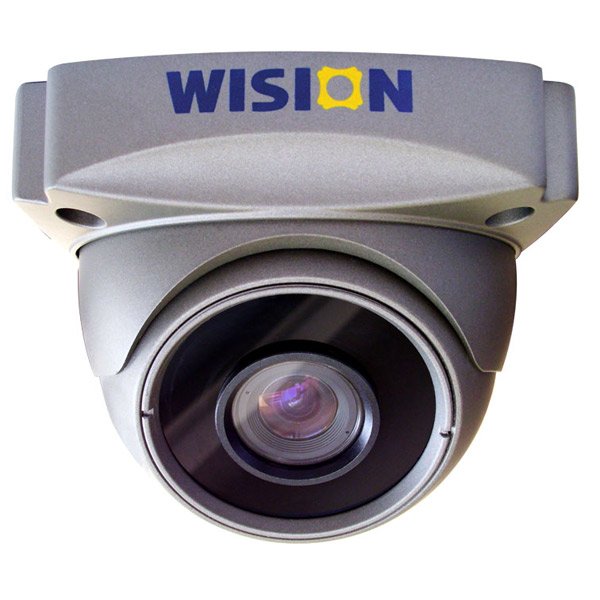

Megapixel HD Low Illumination IR Dome IP Camera

Features
＊ Up to resolution 1280*720; excellent low illumination; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC
＊ Built-in long-life, high efficiency infrared emission components; non-spherical IR lens brings sharp and clear images without distorting.
＊ CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
＊ IP66-rated waterproof and dustproof design, high reliability and safety;
＊ 3 Axis adjustment design makes installation more convenient
Application Scene
Applicable to hotels, supermarkets, offices, corridors, stairs and other indoor places where ultra-high quality and low illumination are required.
Ordering Model
WS-C5M34H-2.8（2.8mm lens）,WS-C5M34H-04（4mm lens）, WS-C5M34H-06（6mm lens）
Parameters
Model WS-C5M34H
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 1.3M Pixels, Progressive low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2 (IR OFF), 0Lux/F.12(IR ON)
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens 2.8mm / 4mm / 6mm
IR Distance ICR, third generation ir lamp; 10m / 15m
Day&Night Electronic or ICR
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch (optional)
Audio Output 1ch (optional)
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch (optional)
Alarm Output 1ch (optional)
Video Output (analog) —
GeneralSpecifications Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V /1. 5A
Power Consumption Max.10W
Dimension（mm） 123mm(L)×123mm(W)×97mm(H)
Installment Methods Ceiling mount
Weight about 625g
