1.5U NVR 4ch&9ch&16ch

Features
* Can connect IP camera, IP speed dome camera and DVS; support Onvif protocol;
* Support megapixel HD network video preview, storage and playback;
* Click any area and zoom in or zoom out on the image by mouse;
* Support digital zooming under preview and playback modes;
* Support search, playback and backup by event;
* Support 4ch playback simultaneously.
* Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;
* The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
* The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
* Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
* The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
* Recording backup can be accurate to second. Any time period of backup is available;
* The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
* Support 3G and WIFI ( but there is no 3G and WIFI module in hardware, you should add USB 3G and USB WIFI);
* Standard resolution which can be adjusted according to the display device in order to get the best image quality;
* Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD.

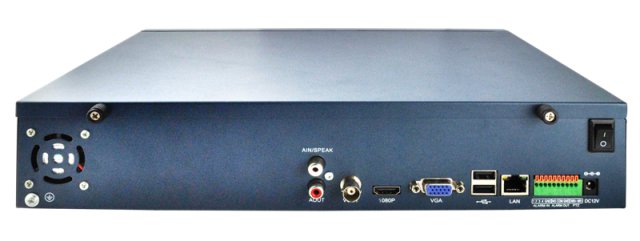

Rear Panel:

Parameters
Model Number
WS-N1204 WS-N1209 WS-N1216
Operating System
Embedded LINUX operating system
Image Code Control
Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream
Each channel can set main stream and sub stream
Video Standard
1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps
Monitoring Image Quality
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720)
Image Motion Detection
Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
Recording Playback Quality
Any 4ch 1080P/720P playback simultaneously
Region Cover
Every channel can set 4 cover regions（IPC Support）
Recording Mode
Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup Way
Support U disk, USB mobile HDD, USB DVD-RW .network storage and backup
Operation Way
Mouse, remote control, front panel
Local Login
User name and password
Recording Storage
Local HDD, network
External Ports
Video Input
① 2×(1920*1080) +2×(1280*720) IP camera 9×(1920*1080) IP camera 16×(1920*1080) IP camera
② 4×(1280*960) IP camera 4×(2048*1536) 300MP IPC 16×(1280*960) /(1280×720)IPC
Audio Input
4ch network audio input 9ch network audio input 16ch network audio input
Video Output
1ch VGA+1ch HDMI
Audio Output
1ch RCA auxiliary Output 1ch BNC
Network Port
1 RJ45,10M/100M self-adaptive LAN port 1 RJ45,10M/100M/1000M self-adaptive LAN port
RS485 Port
Full duplex standard 485 port
USB Port
3 USB 2.0 ports
Alarm Input
4ch
Alarm Output
1ch 2ch
Wireless Port
3G，WIFI
HDD
HDD Port
2 SATA HDD Port
MAX Capacity
Each port supports MAX 4TB HDD
Mobile Surveillance
Support( iPhone, Windows Mobile, BlackBerry, Symbian,Android) smart phone
Power Supply
12V4A
Power Consumption
≤25（without HDD）
Working Temperature
-10℃～＋55℃
Working Humidity
10％-90％
Dimension
Equipment：350mm×240mm×70mm， Packing： 409mm×365mm×129mm
Weight(without HDD)
N.W.：1.7Kg；With packing：2.89Kg
Outside Carton
5 pcs/carton. 675mm×425mm×385mm； Weight：15.22 Kg.
Installation Way
Desktop Installation
