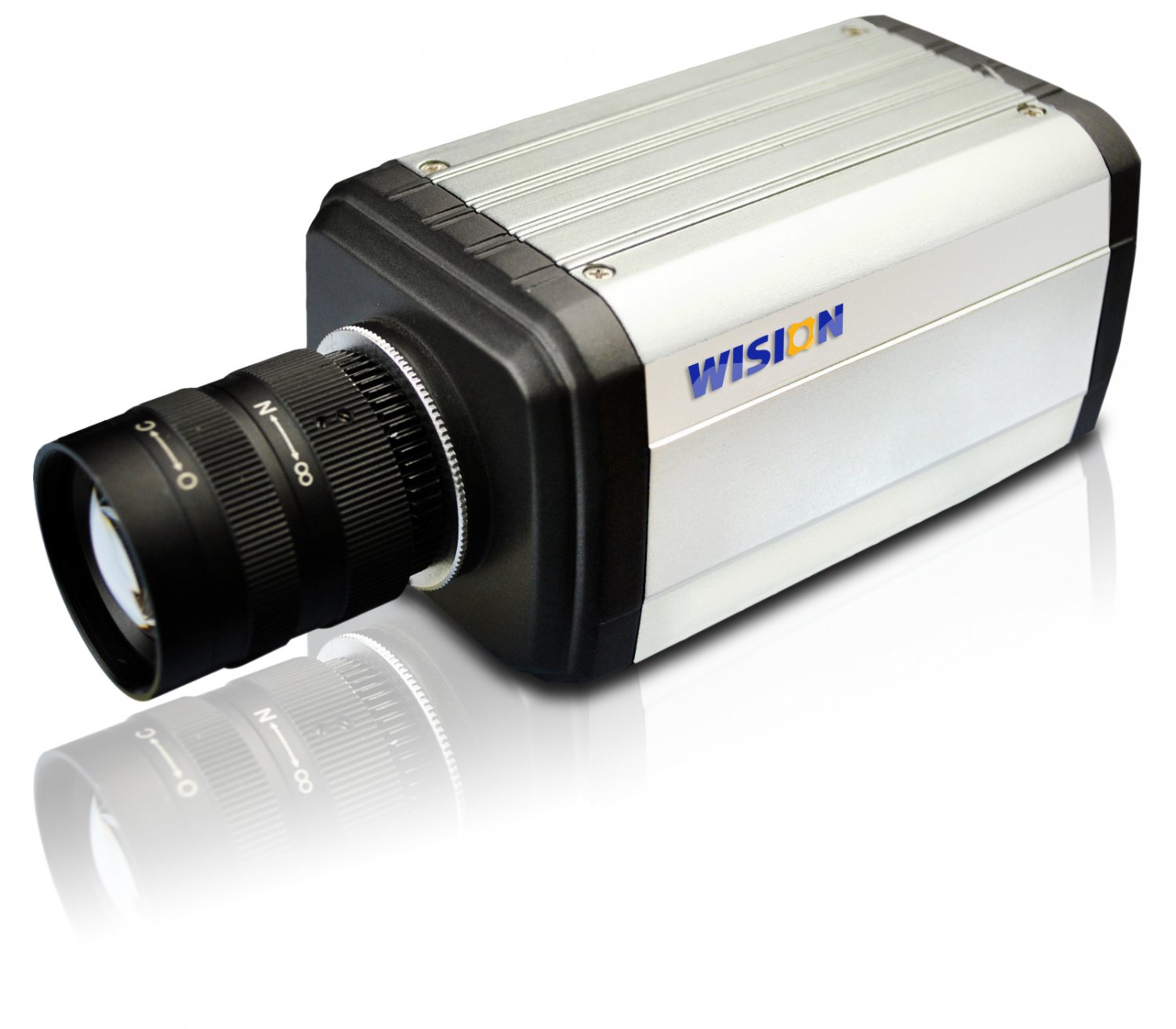

2 Megapixels HD IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* Up to 2MP; up to 1920×1080 resolutions
* H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
* Multi users browsing at one time; system online upgrade
* Local and network storage; built-in SD Card slot; multiple network storage protocols supported
* Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
* AWB and AGC and CVBS Video output
* Abnormal auto-recovery, network interrupt auto-connected
* ICR filter switch, Day &Night Monitoring
* Hot-swap SFP optical module interface（optional）; the fiber optical transmission; strong anti-interference ability, remote monitoring supported.
* AC 24V/DC, 12V, POE
Application Scene
Applicable to the finance, telecommunications, supermarkets, hotels, government, schools, airports, factories, public security, justice, transportation, museums, safe cities and other places where ultra-high quality is required.
Ordering Model
WS-A5P201（DC12V）,WS-A5P201-A（DC12V/AC24V）, WS-A5P201-P（DC12V/POE）,WS-A5P201C-A（with ICR）, WS-A5P201F（with optical fiber interface）
Parameters
Model WS-A5P201-A
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/2.5” 5M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens C/CS
Auto Iris DC Drive (except for A5P201F)
Day&Night ICR (only for A5P201C-A)
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1920 x 1080
Resolution& Frame Rate 20fps(1920 x 1080P), 30fps(1280 x 720P), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage SD/SDHC, MAX32G
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Heartbeat, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485 (A5P201-A/P/C); 100M optical fiber interface(A5P201F)
Alarm Input 2ch (except for A5P201F)
Alarm Output 1ch (except for A5P201F)
Video Output (analog) CVBS 1Vp-p Composite Output(75Ω/BNC)
GeneralSpecification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply AC24V/DC12V 1A/POE
Power Consumption Max.3W
Dimension（mm） 110mm(L) × 64mm(W) × 65mm(H)
Installment Methods Optional
Weight about 320g
* Up to 2MP; up to 1920×1080 resolutions
* H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
* Multi users browsing at one time; system online upgrade
* Local and network storage; built-in SD Card slot; multiple network storage protocols supported
* Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
* Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
* AWB and AGC and CVBS Video output
* Abnormal auto-recovery, network interrupt auto-connected
* ICR filter switch, Day &Night Monitoring
* Hot-swap SFP optical module interface（optional）; the fiber optical transmission; strong anti-interference ability, remote monitoring supported.
* AC 24V/DC, 12V, POE
Application Scene
Applicable to the finance, telecommunications, supermarkets, hotels, government, schools, airports, factories, public security, justice, transportation, museums, safe cities and other places where ultra-high quality is required.
Ordering Model
WS-A5P201（DC12V）,WS-A5P201-A（DC12V/AC24V）, WS-A5P201-P（DC12V/POE）,WS-A5P201C-A（with ICR）, WS-A5P201F（with optical fiber interface）
Parameters
Model WS-A5P201-A
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/2.5” 5M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens C/CS
Auto Iris DC Drive (except for A5P201F)
Day&Night ICR (only for A5P201C-A)
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1920 x 1080
Resolution& Frame Rate 20fps(1920 x 1080P), 30fps(1280 x 720P), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage SD/SDHC, MAX32G
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Heartbeat, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485 (A5P201-A/P/C); 100M optical fiber interface(A5P201F)
Alarm Input 2ch (except for A5P201F)
Alarm Output 1ch (except for A5P201F)
Video Output (analog) CVBS 1Vp-p Composite Output(75Ω/BNC)
GeneralSpecification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply AC24V/DC12V 1A/POE
Power Consumption Max.3W
Dimension（mm） 110mm(L) × 64mm(W) × 65mm(H)
Installment Methods Optional
Weight about 320g
