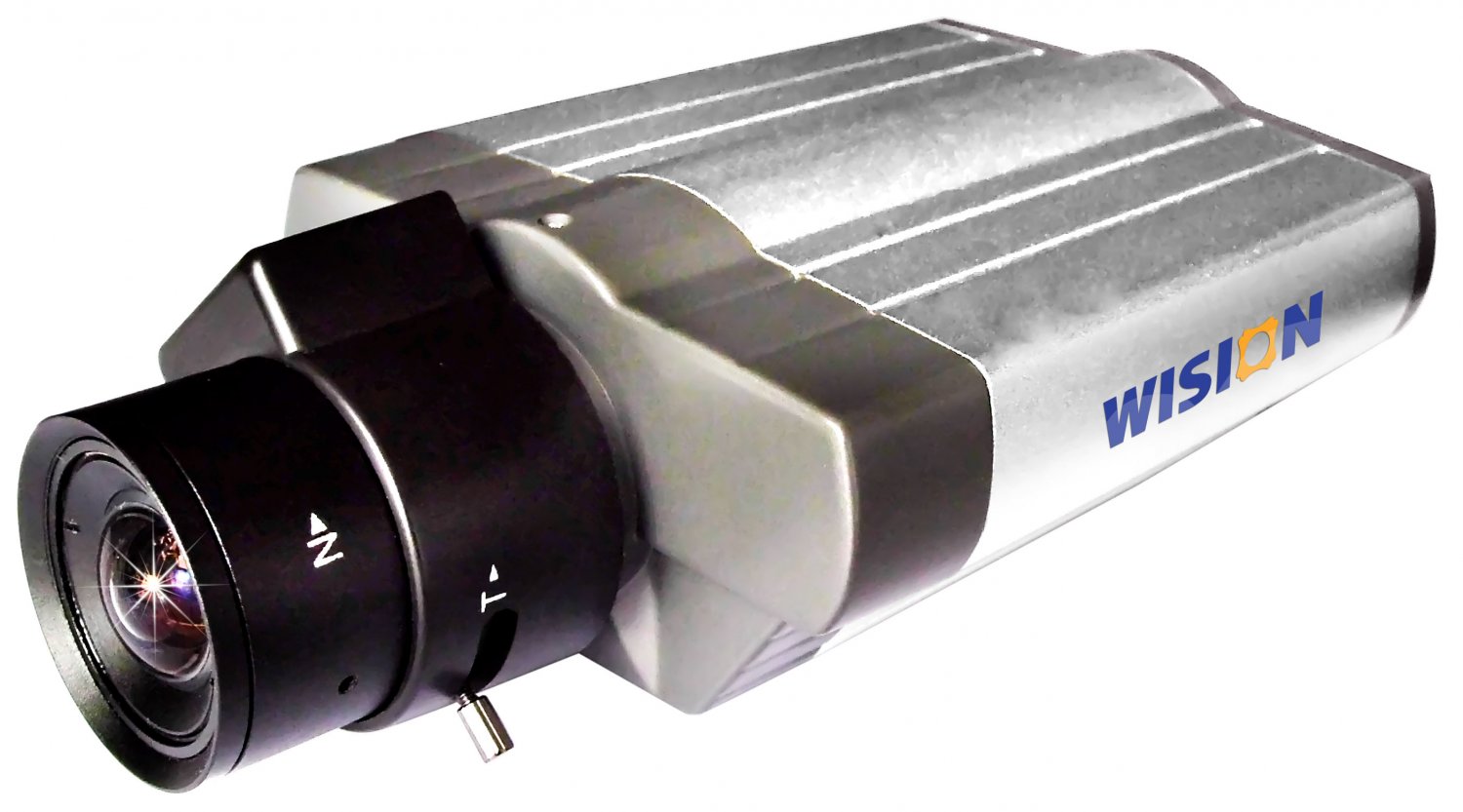

Megapixel HD IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
＊ up to 1280*720 resolution; excellent low illumination effect; output complete real-time FULL real time 720p images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system;
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; built-in SD Card slot; multiple network storage protocols supported
＊ Provide motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ Abnormal auto-recovery, network interrupt auto-connected
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality and is required.
Parameters
Model WS-A5V12
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/4” 1M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR C/CS
Auto Iris / Lens DC drive
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 2ch switch value
Alarm Output —
Video Output (analog) —
GeneralSpecification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V / 1.5A
Power Consumption Max.3W
Dimension（mm） 123mm(L)×90mm(W)×49mm(H)
Installment Methods Optional
Weight about 350g
＊ up to 1280*720 resolution; excellent low illumination effect; output complete real-time FULL real time 720p images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system;
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; built-in SD Card slot; multiple network storage protocols supported
＊ Provide motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ Abnormal auto-recovery, network interrupt auto-connected
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality and is required.
Parameters
Model WS-A5V12
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/4” 1M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR C/CS
Auto Iris / Lens DC drive
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions A Reset Button, Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 2ch switch value
Alarm Output —
Video Output (analog) —
GeneralSpecification Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V / 1.5A
Power Consumption Max.3W
Dimension（mm） 123mm(L)×90mm(W)×49mm(H)
Installment Methods Optional
Weight about 350g
