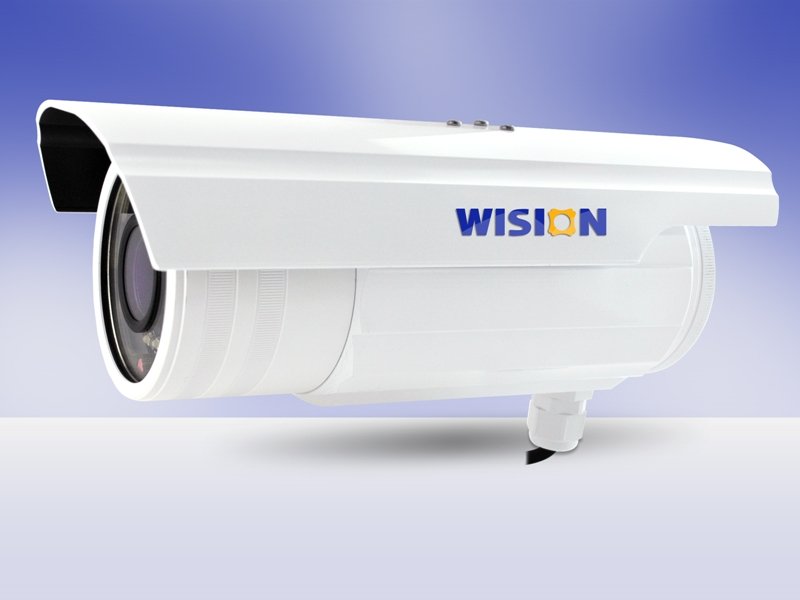

1.3 Megapixels HD Vari-focus Low Illumination IR IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* 1.3MP，up to 1280×960，excellent low illumination; output real time 720p images;
* H.264 Compression; triple code stream; support browsers such as IE、Firfox、Chrome; compatible with smart phone operation platform such as iPhone, Android etc.
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem);
* Multi users browsing at one time; system online upgrade;
* Local and network storage; multiple network storage protocols supported;
* Provide watching dog, motion detection (Area, Sensitivity Selectable) and sensor alarm;
* Support two-way voice intercom and broadcast, I/O Alarm, RS485 control and POE;
* AWB and AGC;
* High reliability with IP66 waterproof and dustproof design;
* CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
* Built-in long-life, high efficiency infrared components; non-spherical IR lens brings sharp and clear images without distorting; IR distance: 20-30 meters;
* Vari-focus lens can be used in various scenes.
Application Scene
Applicable to the finance, hotels, schools, airports, public security, justice, transportation, museum and other places where 24 hours ultra-high quality and low illumination are required.
Ordering Model
WS-B5M80-PZ
Dimension
Product
Parameters
Model WS-B5M80-PZ
Camera Processor TI single chip SOC：built-in（ARM9＋DSP）and high-speed video processor
Sensor 1/3 inch 1.3M low illumination progressive CMOS
Min. Lux Color: 0.1Lux/F1.2， B/W: 0.01Lux/F1.2（IR OFF），0Lux/F1.2（IR ON）
SNR ＞50dB
Shutter 1/5 sec. to 1/50,000 sec.
Lens Interface φ14
Lens 2.8-12mm/F1.4
Day & Night ICR
IR distance 20-30 meters
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps~12Mbps
Audio Compression G.711
Image Max. Size 1280x960P（30fps）
Resolution& Frame Rate 30fps 1280x960P（960P）；(1280x720P)(720P)
30fps (640x352)(VGA)
30fps (352x192))(QVGA)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable; reversible color
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Intelligent Alarm Motion detection, off net, I/O alarm
Network Protocol HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF，PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch
Alarm Output 1ch
Storage SD card storage
General Specification Temperature & Humidity —10℃～+50℃，30%～90%RH
Power Supply PoE or DC12V
Power Consumption Max. 8W
Waterproof degree IP66
Dimension(mm) 245mm(L)X 93.5mm(W) X 88mm(H)
Installation Wall
Weight About 1.1kg
* 1.3MP，up to 1280×960，excellent low illumination; output real time 720p images;
* H.264 Compression; triple code stream; support browsers such as IE、Firfox、Chrome; compatible with smart phone operation platform such as iPhone, Android etc.
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem);
* Multi users browsing at one time; system online upgrade;
* Local and network storage; multiple network storage protocols supported;
* Provide watching dog, motion detection (Area, Sensitivity Selectable) and sensor alarm;
* Support two-way voice intercom and broadcast, I/O Alarm, RS485 control and POE;
* AWB and AGC;
* High reliability with IP66 waterproof and dustproof design;
* CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
* Built-in long-life, high efficiency infrared components; non-spherical IR lens brings sharp and clear images without distorting; IR distance: 20-30 meters;
* Vari-focus lens can be used in various scenes.
Application Scene
Applicable to the finance, hotels, schools, airports, public security, justice, transportation, museum and other places where 24 hours ultra-high quality and low illumination are required.
Ordering Model
WS-B5M80-PZ
Dimension
Product
Parameters
Model WS-B5M80-PZ
Camera Processor TI single chip SOC：built-in（ARM9＋DSP）and high-speed video processor
Sensor 1/3 inch 1.3M low illumination progressive CMOS
Min. Lux Color: 0.1Lux/F1.2， B/W: 0.01Lux/F1.2（IR OFF），0Lux/F1.2（IR ON）
SNR ＞50dB
Shutter 1/5 sec. to 1/50,000 sec.
Lens Interface φ14
Lens 2.8-12mm/F1.4
Day & Night ICR
IR distance 20-30 meters
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps~12Mbps
Audio Compression G.711
Image Max. Size 1280x960P（30fps）
Resolution& Frame Rate 30fps 1280x960P（960P）；(1280x720P)(720P)
30fps (640x352)(VGA)
30fps (352x192))(QVGA)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable; reversible color
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Intelligent Alarm Motion detection, off net, I/O alarm
Network Protocol HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF，PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch
Alarm Output 1ch
Storage SD card storage
General Specification Temperature & Humidity —10℃～+50℃，30%～90%RH
Power Supply PoE or DC12V
Power Consumption Max. 8W
Waterproof degree IP66
Dimension(mm) 245mm(L)X 93.5mm(W) X 88mm(H)
Installation Wall
Weight About 1.1kg
