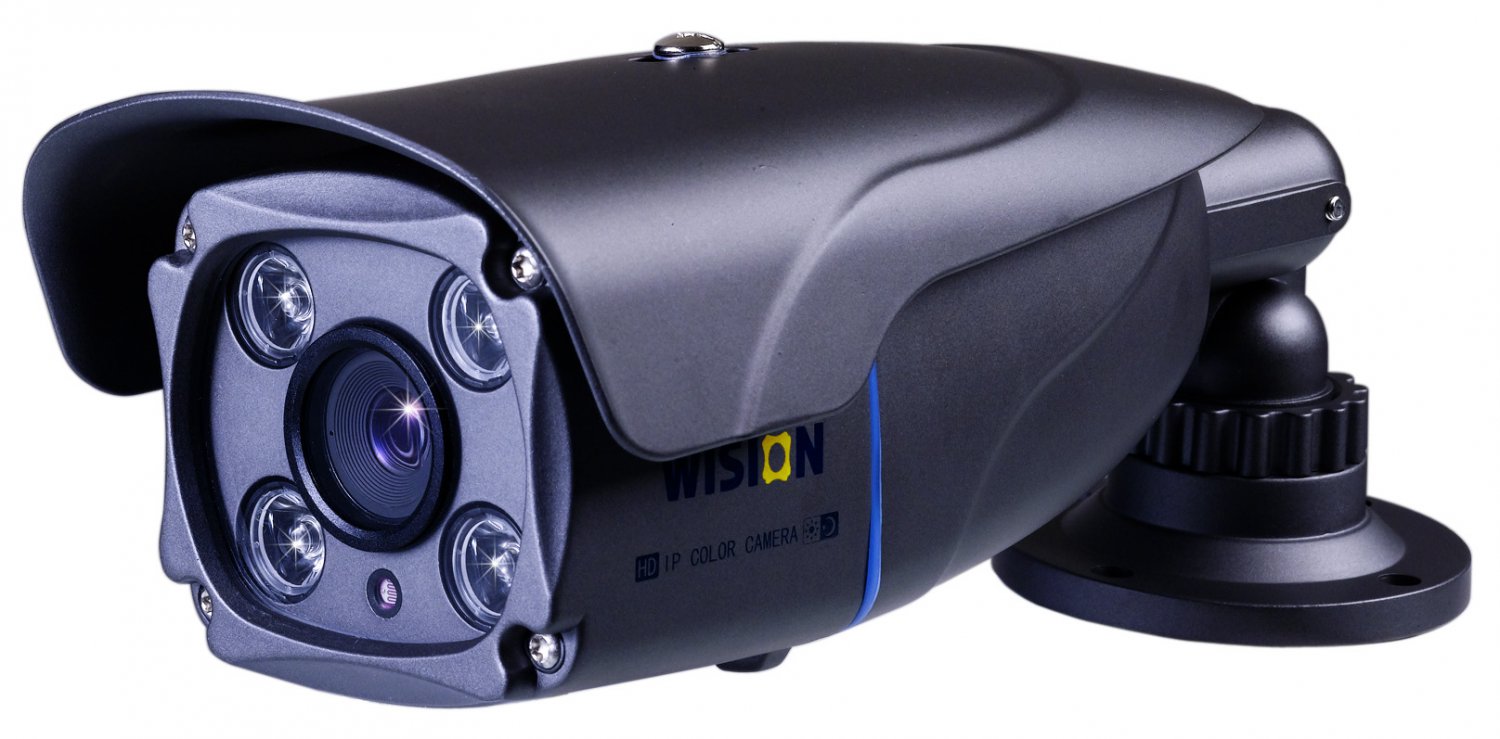

3 Megapixels HD WDR IR IP Camera

Features
＊ 3MP, up to 2048*1536 resolution; excellent WDR and low illumination effect; output complete real-time FULL HD1080P images
＊ H.264 Compression, dual streaming, mobile surveillance; Support browsers such as IE,Firfox, Chrome; compatible with various smart Phone operating system;
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; multiple network storage protocols supported; supporting 4：3 (1600*1200@20fps）Mode
＊ Provide motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ IP66-rated waterproof and dustproof design, high reliability and safety;
＊ AWB and AGC and CVBS Video output
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
＊ Built-in long-life, high efficiency infrared emission components; non-spherical IR lens brings sharp and clear images without distorting.
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality, WDR, IR are required.
Ordering Model
WS-B8R31-06（6mm lens）,WS-B8R31-08（8mm lens），WS-B8R31-12（12mm lens），WS-B8R31-16（16mm lens）
Parameters
Model WS-B8R31
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 3.1M Pixels, Progressive WDR low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2 (IR OFF), 0Lux/F1.2 (IR ON)
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR ＞100dB
Auto Iris / Lens 6mm/ 8mm / 12mm / 16mm /; infared lamp with light distance 25m
Day&Night Electronic or ICR
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 2048 x 1536
Resolution& Frame Rate 20fps(2048 x 1536), 30fps(1600 x 1200), 30fps(1920 x 1080P)
30fps(1280 x 720)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch (optional)
Audio Output 1ch (optional)
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch (optional)
Alarm Output 1ch (optional)
Video Output (analog) —
GeneralSpecifications Temperature&Humidity Heater starts working when temperature is below 5 ℃; 30%-90% RH
Power Supply DC12V / 1.5A
Power Consumption Max.15W
Dimension（mm） 317mm(L)×119mm(W)×102mm(H)
Installment Methods Comes with mounting bracket
Weight about 940g
