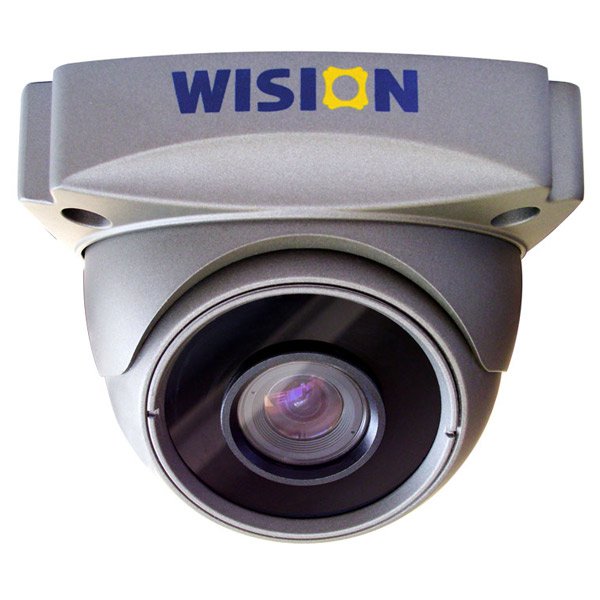

Megapixel HD Dome IP Camera

Features
＊ Up to resolution 1280*720; excellent low illumination; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Abnormal auto-recovery, network interrupt auto-connected
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC
＊ 3 Axis adjustment design makes installation more convenient
Application Scene
Applicable to hotels, supermarkets, offices, corridors, stairs and other indoor places where ultra-high quality is required.
Ordering Model
WS-C5V12-2.8（2.8mm lens）,WS-C5V12-04（4mm lens）, WS-C5V12-06（6mm lens）
Parameters
Model WS-C5V12
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/4” 1M Pixels, Progressive CMOS
Min.Lux Color: 1.0Lux/F1.2; B/W:0.1Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens 2.8mm / 4mm / 6mm
Day&Night Electronic
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression —
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm —
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions —
Interface Audio Input —
Audio Output —
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input —
Alarm Output —
GeneralSpecifications Temperature&Humidity -10℃～50℃; 30%-90% RH
Power Supply DC12V /1. 5A
Power Consumption Max.3W
Dimension（mm） 123mm(L)×123mm(W)×97mm(H)
Installment Methods Ceiling mount
Weight about 625g
