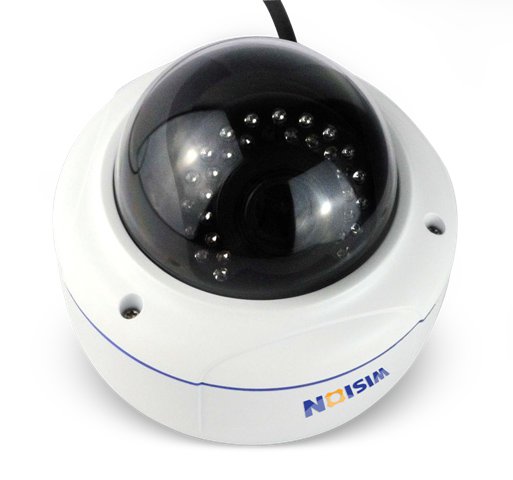

2 Megapixels HD Vari-focus Vandal-proof Dome IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
* 2MP, up to 1920×1080; output 1080P images;
* H.264 Compression; triple code stream; support browsers such as IE、Firfox、Chrome; compatible with smart phone operation platform such as iPhone, Android etc.
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem);
* Multi users browsing at one time; system online upgrade; Abnormal auto-recovery, network interrupt auto-connected;
* Provide watching dog, motion detection (Area, Sensitivity Selectable) and sensor alarm;
* Support two-way voice intercom and broadcast, I/O Alarm, RS485 control and POE;
* AWB and AGC; Local and network storage; multiple network storage protocols supported;
* Vandal-proof level: IK10; waterproof: IP66；
* 3 Axis adjustment design makes installation more convenient;
* DC12V or POE;
* CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
* Built-in long-life, high efficiency infrared components; non-spherical IR lens brings sharp and clear images without distorting; IR distance: 20 meters;
* ari-focus lens can be used in various scenes.
Application Scene
Applicable to the justice, hotels, supermarkets, offices, corridors, staircase and other places where low illumination and vandal-proof are required.
Ordering Model
WS-C5P810H-Z
Dimension
Product
Parameters
Model WS-C5P810H-Z
Camera Processor TI single chip SOC：built-in（ARM9＋DSP）and high-speed video processor
Sensor 5M 1/2.5″ progressive CMOS
Min. Lux Color: 1.0Lux/F1.2， B/W: 0.1Lux/F1.2，0Lux/F1.2（IR ON）
SNR ＞50dB
Shutter 1/5 sec. to 1/50,000 sec.
Lens Interface φ14
Lens 3.0-10.5mm/F1.4
Day & Night ICR
IR distance 20 meters
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps~12Mbps
Audio Compression G.711
Image Max. Size 1920x1080（30fps）
Resolution& Frame Rate 20fps (1920x1080)
30fps (1280x720)
30fps (640x352)；30fps (352x192)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable; reversible color
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Storage SD、SDHC 32G
Intelligent Alarm Motion detection, off net, I/O alarm
Network Protocol HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF，PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch
Alarm Output 1ch
Storage SD card storage
General Specification Temperature & Humidity —10℃～+50℃，30%～90%RH
Power Supply DC12V or POE
Power Consumption Max. 6W
Waterproof degree IP66
Vandal-proof degree IEC60068-2-75 test，Eh，50J；EN50102，more than IK10
Dimension(mm) φ148×122.4mm
Installation Ceiling
Weight About 1.2kg
* 2MP, up to 1920×1080; output 1080P images;
* H.264 Compression; triple code stream; support browsers such as IE、Firfox、Chrome; compatible with smart phone operation platform such as iPhone, Android etc.
* Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem);
* Multi users browsing at one time; system online upgrade; Abnormal auto-recovery, network interrupt auto-connected;
* Provide watching dog, motion detection (Area, Sensitivity Selectable) and sensor alarm;
* Support two-way voice intercom and broadcast, I/O Alarm, RS485 control and POE;
* AWB and AGC; Local and network storage; multiple network storage protocols supported;
* Vandal-proof level: IK10; waterproof: IP66；
* 3 Axis adjustment design makes installation more convenient;
* DC12V or POE;
* CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
* Built-in long-life, high efficiency infrared components; non-spherical IR lens brings sharp and clear images without distorting; IR distance: 20 meters;
* ari-focus lens can be used in various scenes.
Application Scene
Applicable to the justice, hotels, supermarkets, offices, corridors, staircase and other places where low illumination and vandal-proof are required.
Ordering Model
WS-C5P810H-Z
Dimension
Product
Parameters
Model WS-C5P810H-Z
Camera Processor TI single chip SOC：built-in（ARM9＋DSP）and high-speed video processor
Sensor 5M 1/2.5″ progressive CMOS
Min. Lux Color: 1.0Lux/F1.2， B/W: 0.1Lux/F1.2，0Lux/F1.2（IR ON）
SNR ＞50dB
Shutter 1/5 sec. to 1/50,000 sec.
Lens Interface φ14
Lens 3.0-10.5mm/F1.4
Day & Night ICR
IR distance 20 meters
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps~12Mbps
Audio Compression G.711
Image Max. Size 1920x1080（30fps）
Resolution& Frame Rate 20fps (1920x1080)
30fps (1280x720)
30fps (640x352)；30fps (352x192)
OSD Control Channel Name, Date and time Information Superimposition supported; Location adjustable; reversible color
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Network Storage SD、SDHC 32G
Intelligent Alarm Motion detection, off net, I/O alarm
Network Protocol HTTP、DHCP、UDP、RTP/RTSP、NTP、FTP
Access Protocol ONVIF，PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch
Audio Output 1ch
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch
Alarm Output 1ch
Storage SD card storage
General Specification Temperature & Humidity —10℃～+50℃，30%～90%RH
Power Supply DC12V or POE
Power Consumption Max. 6W
Waterproof degree IP66
Vandal-proof degree IEC60068-2-75 test，Eh，50J；EN50102，more than IK10
Dimension(mm) φ148×122.4mm
Installation Ceiling
Weight About 1.2kg
