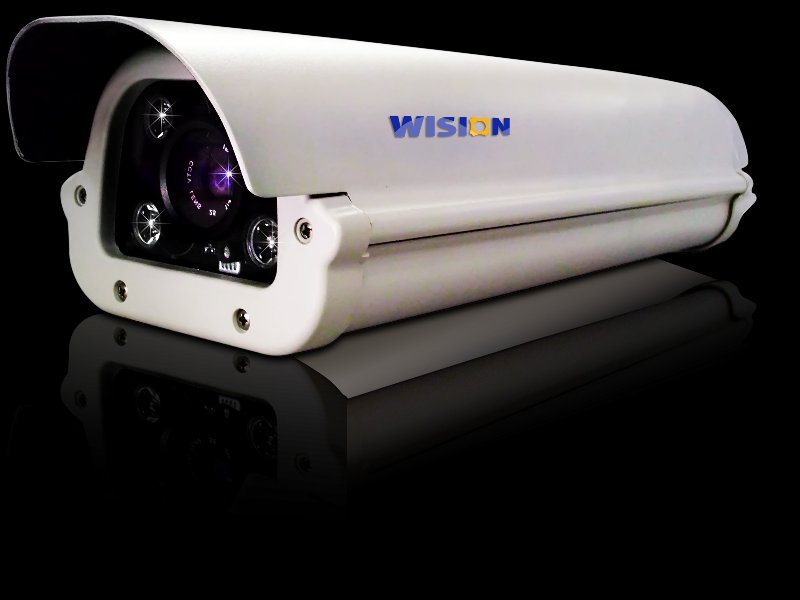

Megapixel HD Low Illumination IR IP Camera (with Heater)
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features
＊ Up to 1.3MP; up to 1280*720 resolutions; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; multiple network storage protocols supported
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ IP66-rated waterproof and dustproof design, high reliability and safety;
＊ CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
＊ Heater equipment makes working in low-temperature environment possible;
＊ Built-in long-life, high efficiency infrared emission components; non-spherical IR lens brings sharp and clear images without distorting.
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality and low illumination are required.
Ordering Model
WS-B2309M-H08（6mm lens）,WS-B2309M-H12（12mm lens）,WS-B2309M-H16（16mm lens），WS-B2309M-H25（25mm lens）
Model WS-B2309M-H
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 1.3M Pixels, Progressive low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR 8mm / 12mm / 16mm / 25mm
Auto Iris / Lens Third Generation IR lamp; 25m
Day&Night Electronic or ICR
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch (optional)
Audio Output 1ch (optional)
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch (optional)
Alarm Output 1ch (optional)
Video Output (analog) —
GeneralSpecifications Temperature&Humidity Auto temperature control: under 15℃, heater is ON; fan always ON; 30%-90% RH
Power Supply DC12V / 5A
Power Consumption Max.45W
Dimension（mm） 467mm(L)×144mm(W)×100mm(H)
Installment Methods Wall
Weight about 1500g
＊ Up to 1.3MP; up to 1280*720 resolutions; output complete real-time 720P images
＊ H.264 Compression, multi streaming, mobile surveillance; compatible with various smart Phone operating system
＊ Support Wision Unique Video Release System, LAN and Internet(ADSL、Cable Modem)
＊ Multi users browsing at one time; system online upgrade
＊ Local and network storage; multiple network storage protocols supported
＊ Provide watching-dog, motion detection (Area, Sensitivity Selectable) and sensor alarm
＊ Support two-way voice intercom and broadcast, Alarm I/O, RS485 control
＊ AWB and AGC and CVBS Video output
＊ IP66-rated waterproof and dustproof design, high reliability and safety;
＊ CDS light control design, IR-CUT dual filter automatically switch and delay technology to achieve true day and night surveillance;
＊ Heater equipment makes working in low-temperature environment possible;
＊ Built-in long-life, high efficiency infrared emission components; non-spherical IR lens brings sharp and clear images without distorting.
Application Scene
Applicable to the finance, hotels, schools, airports,public security, justice, transportation, museums, safe cities and other places where ultra-high quality and low illumination are required.
Ordering Model
WS-B2309M-H08（6mm lens）,WS-B2309M-H12（12mm lens）,WS-B2309M-H16（16mm lens），WS-B2309M-H25（25mm lens）
Model WS-B2309M-H
Camera Processor TI single chip SOC, built-in (ARM9 + DSP) and high-speed video processor
Image Sensor 1/3” 1.3M Pixels, Progressive low illumination CMOS
Min.Lux Color: 0.1Lux/F1.2; B/W:0.01Lux/F1.2
SNR ＞50dB
Shutter 1/5-1/50,000sec
Lens Interface / WDR 8mm / 12mm / 16mm / 25mm
Auto Iris / Lens Third Generation IR lamp; 25m
Day&Night Electronic or ICR
Compression Video Compression H.264/MJPEG
Bit Rate 64 Kbps-12Mbps
Audio Compression G.711
Image Max.Size 1280 x 720
Resolution& Frame Rate 30fps(1280 x 720), 30fps(640 x 352)
30fps(352 x 192)
OSD Control Channel Name, Date and time Information Superimposition supported,Location adjustable
Image Setting BLC,Saturation,Brightness,Contrast,Sharpness,Gain,Multi-Streams,Bit Rate, Frame Rate are adjustable through Client software or IE
Function Storage —
Intelligent Alarm Motion detection，Interruption Network, I/O Alarm
Network Protocol HTTP, DHCP, UDP, RTP/RTSP, ANNP(NTP, FTP)
Access Protocol Standard ONVIF,PSIA
General Functions Anti-flash, Multi-stream, Password protected, OSD Technology
Interface Audio Input 1ch (optional)
Audio Output 1ch (optional)
Network Interface RJ45 10M/100M self adaptive Ethernet; RS485
Alarm Input 1ch (optional)
Alarm Output 1ch (optional)
Video Output (analog) —
GeneralSpecifications Temperature&Humidity Auto temperature control: under 15℃, heater is ON; fan always ON; 30%-90% RH
Power Supply DC12V / 5A
Power Consumption Max.45W
Dimension（mm） 467mm(L)×144mm(W)×100mm(H)
Installment Methods Wall
Weight about 1500g
