$169.95
Add to Cart
Stage Pro
More than 10 available
Details
Shipping: USPS calculated - check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

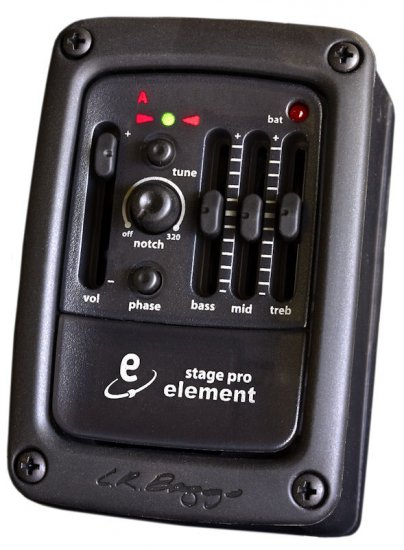

STAGEPRO--------The Element Active System combines Element under saddle pickup with a pre-contoured, all-discrete class A endpin preamp. Including an onboard system with a side-mounted class A preamp/EQ that features volume, treble, midrange, bass, notch filter and phase inversion controls with tuner. The Element Active is designed to interface with just about anything you plug into, but best results will be achieved with a high-quality, full-range P.A. Plugging in and unplugging the cord will turn the preamp on and off.
We recommend that this system be installed by a professional dealer/installer. We do not provide installation advice or support for home or hobbyist installations. Installers: please read the instructions carefully before proceeding. We will not be responsible for any damage to the guitar or personal injury resulting from installation, improper installation, use or misuse of the product.
Users' Manual - L.R. Baggs Element Active System Under saddle Pickup with Stage Pro Element Preamp
Preamp Features:
Chromatic Tuner
Volume, Bass, Mid and Treble controls
Notch Filter
Phase Inversion
Easy click-lock battery access
Class A discrete fet input preamp/eq for warm analog sound
Element Features:
Impressive presence and dynamic range One size fits most string spacings and saddle widths Even string-to-string balance
Specs:
Preamp size: 3.5” x 2.8” x 2.2”
Weight (including battery): 5.6 oz.
Battery: single 9V
Current Consumption: Preamp-4.5mA, Tuner-14mA
Battery Life: 100+ hrs
Bass: +/- 9dB @ 80 Hz
Mid: +5/-9 @ 1 kHz
Treble: +/- 12 dB unweighted
Iput Impedance: 10 megohms
Output Impedance: 620 ohms
Notch Filter: off to 320hZ (sweepable), 1/8 octive, fixed -21 dB
We recommend that this system be installed by a professional dealer/installer. We do not provide installation advice or support for home or hobbyist installations. Installers: please read the instructions carefully before proceeding. We will not be responsible for any damage to the guitar or personal injury resulting from installation, improper installation, use or misuse of the product.
Users' Manual - L.R. Baggs Element Active System Under saddle Pickup with Stage Pro Element Preamp
Preamp Features:
Chromatic Tuner
Volume, Bass, Mid and Treble controls
Notch Filter
Phase Inversion
Easy click-lock battery access
Class A discrete fet input preamp/eq for warm analog sound
Element Features:
Impressive presence and dynamic range One size fits most string spacings and saddle widths Even string-to-string balance
Specs:
Preamp size: 3.5” x 2.8” x 2.2”
Weight (including battery): 5.6 oz.
Battery: single 9V
Current Consumption: Preamp-4.5mA, Tuner-14mA
Battery Life: 100+ hrs
Bass: +/- 9dB @ 80 Hz
Mid: +5/-9 @ 1 kHz
Treble: +/- 12 dB unweighted
Iput Impedance: 10 megohms
Output Impedance: 620 ohms
Notch Filter: off to 320hZ (sweepable), 1/8 octive, fixed -21 dB
