$80.00
Add to Cart

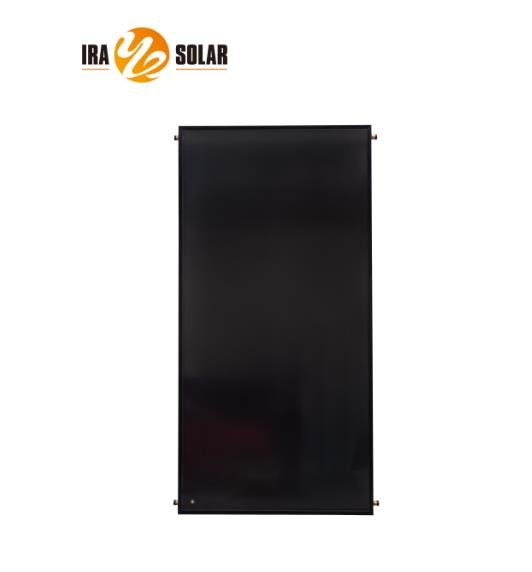

IRASOLAR Flat Collector 2sqm
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Absorb material: Aluminum alloy
Dimension: 2000*1000*80
Absorb coating: Black chrome/Blue Coating
Absorption rate: 0.95
Emission rate: 0.25
Cover glass: Tempered patterned glass
Edging materials and color: Aluminum alloy(black/Silver)
Insulation: Fiberglass(30mm)
Materials of back cover: Galvznized steel,σ=0.3mm
Sealing material: Special metal resilience seal,safty and lifetime are better than rubber seal
Solar collector working principle
Flat panel solar collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. IRASOLAR can supply you different kinds of high quality absorber plate with selective film.
Dimension: 2000*1000*80
Absorb coating: Black chrome/Blue Coating
Absorption rate: 0.95
Emission rate: 0.25
Cover glass: Tempered patterned glass
Edging materials and color: Aluminum alloy(black/Silver)
Insulation: Fiberglass(30mm)
Materials of back cover: Galvznized steel,σ=0.3mm
Sealing material: Special metal resilience seal,safty and lifetime are better than rubber seal
Solar collector working principle
Flat panel solar collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. IRASOLAR can supply you different kinds of high quality absorber plate with selective film.
CN, zhejiang
