$6.00
Add to Cart

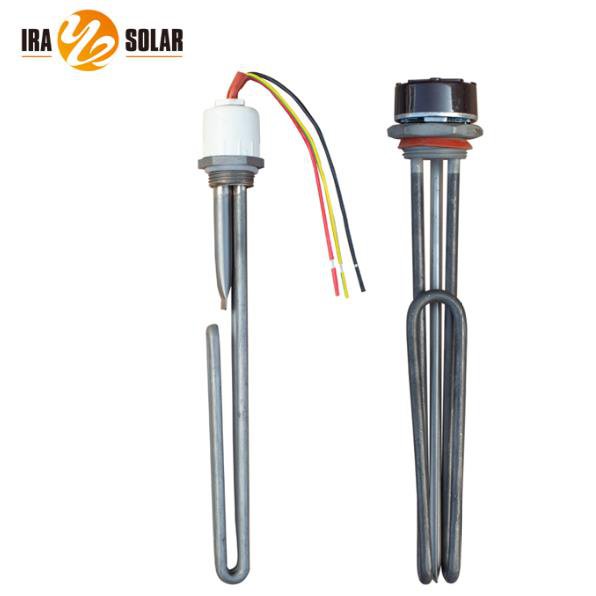

IRASOLAR Heating element
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Model NO.: IRASOLAR-HE
FOB Price:US $ 6.00-15.00 / pieces
Min order:100 pieces
Accept Min order:Yes
Supply Ability:100000 pieces / Week
Country of Origin:China
Stock Time:20 Days
Main Parameters
Model: SY06-30UT
Tube Material: Copper(T2)/Stainless Stell
Output power: 1000W-3000W +5%, -10%
Voltage: 220V-240V/50Hz. 110V/60Hz
Hi-pot test: 1800V/S min cold condition
Leakage Current: 0.75ma max
Insulation: 500MΩ
Heating resistance wire: Ocr25AI5, Cr20NI80 or as custom's requirement
Sheath Diameter: 8mm-8.4mm
Hydraulic testing: 8.0KG
Total Length: 30cm
Flange: 1 1/4"brass flange with/without Mg anode holding M6/M8
Thermostat: With 16A 250V. L=275mm. Double safety thermostat.
Temperature Range: 20-80℃
FOB Price:US $ 6.00-15.00 / pieces
Min order:100 pieces
Accept Min order:Yes
Supply Ability:100000 pieces / Week
Country of Origin:China
Stock Time:20 Days
Main Parameters
Model: SY06-30UT
Tube Material: Copper(T2)/Stainless Stell
Output power: 1000W-3000W +5%, -10%
Voltage: 220V-240V/50Hz. 110V/60Hz
Hi-pot test: 1800V/S min cold condition
Leakage Current: 0.75ma max
Insulation: 500MΩ
Heating resistance wire: Ocr25AI5, Cr20NI80 or as custom's requirement
Sheath Diameter: 8mm-8.4mm
Hydraulic testing: 8.0KG
Total Length: 30cm
Flange: 1 1/4"brass flange with/without Mg anode holding M6/M8
Thermostat: With 16A 250V. L=275mm. Double safety thermostat.
Temperature Range: 20-80℃
CN, zhejiang
