High Torque Clock Movement (Silent ) Extended Shaft w/12 in. Spaded Hands (No9) w/Wall Mount

Make that large clock with this high torque quartz movement (silent sweep) with extended shaft for extra clearance when running long balanced hands, large 12" black spaded shaped balanced metal hands. Includes high torque motor 9/16" threaded shaft and 14" black balanced hands and mounting hub w/ built-in hanger for direct wall mounting of your clock. Conceals your motor for that finished look

This is a continuous motion high torque movement, no stepping of gears, super quiet......most quiet high torque motor available. Those of you with keen hearing will greatly appreciate it's quietness.

high torque movement:
case size: 2-1/8" sq x 5/8" thick, shaft diameter is 5/16"
threaded shaft is 9/16" total 15/16"

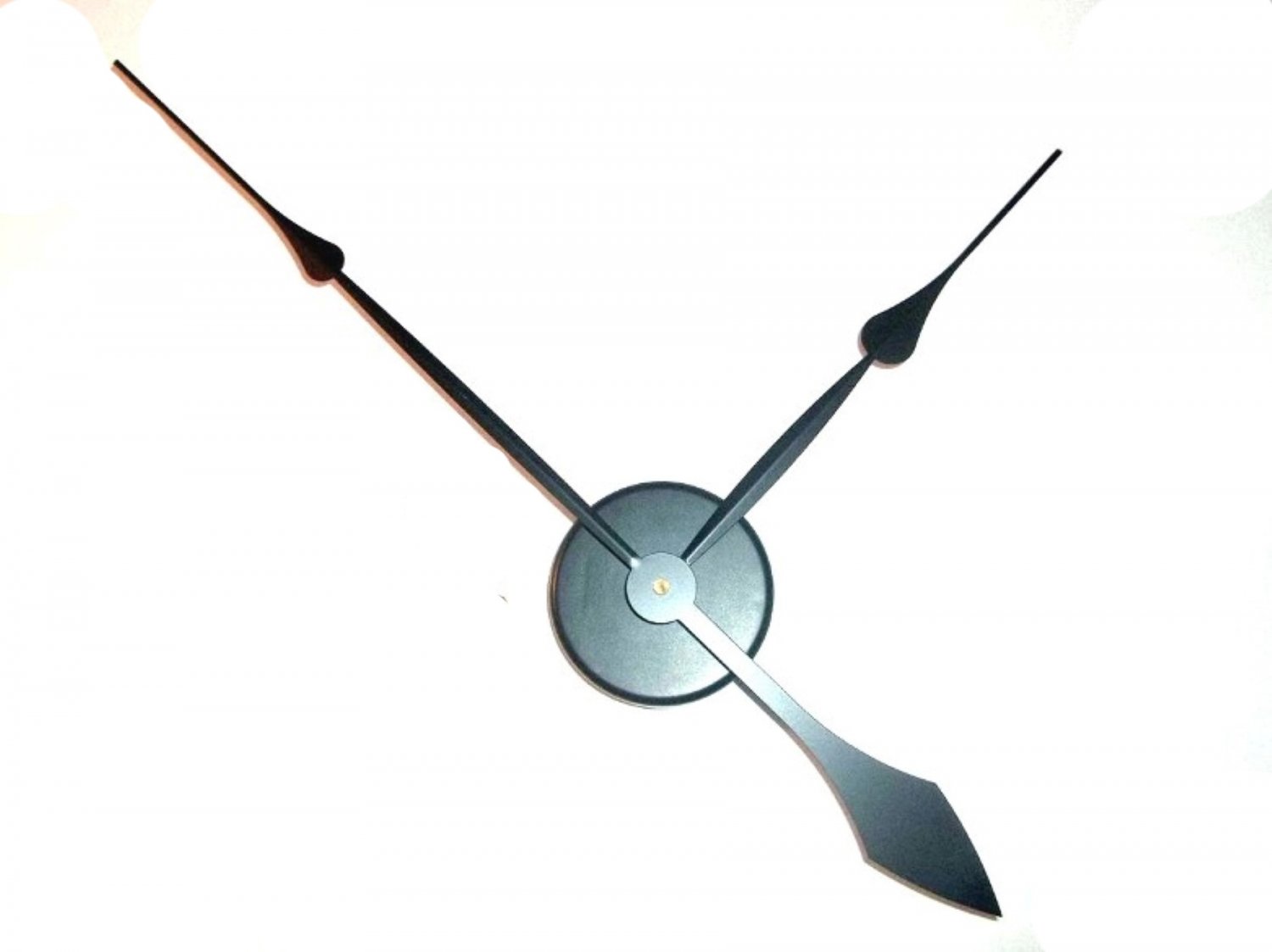

12" balanced hands:
minute hand is 12" long, from center of mounting hole to end tip, total length is 18-3/8" end to end and counterbalanced (weight to balance hand)
hour hand is 9" from end tip to center of mounting hole, total length is 9-1/2" (end to end)

Mounting hub size: 3-3/8" (85mm) dia. x 1" deep. High impact molded plastic and may be painted any color, use a primer then your color coat

3 yr factory warranty
requires one "AA" battery (not incl.)
brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)

PLEASE NOTE; I do have 1/4" and 7/16" threaded shafts in place of the furnished 9/16". If so please note on checkout or email me.

I will send photos of assembly in my purchase email, or email me.

FOR LARGER VOLUME - PLEASE SEE CATEGORY "WHOLESALE LOTS".

Here's a link for making a simple DIY photo frame wall clock

http://homemakerschallenge.com/make-time-for-a-simple-diy-project-how-to-create-a-photo-wall-clock/


NOTE ON MEASURING:

Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clock face....then order the 38" threaded shaft)

MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length.


For larger volume and questions please email me

I accept personal checks, money orders and paypal

I do offer combined shipping for multi items to save on shipping charges in checkout

For larger volume see my other listings or email me
