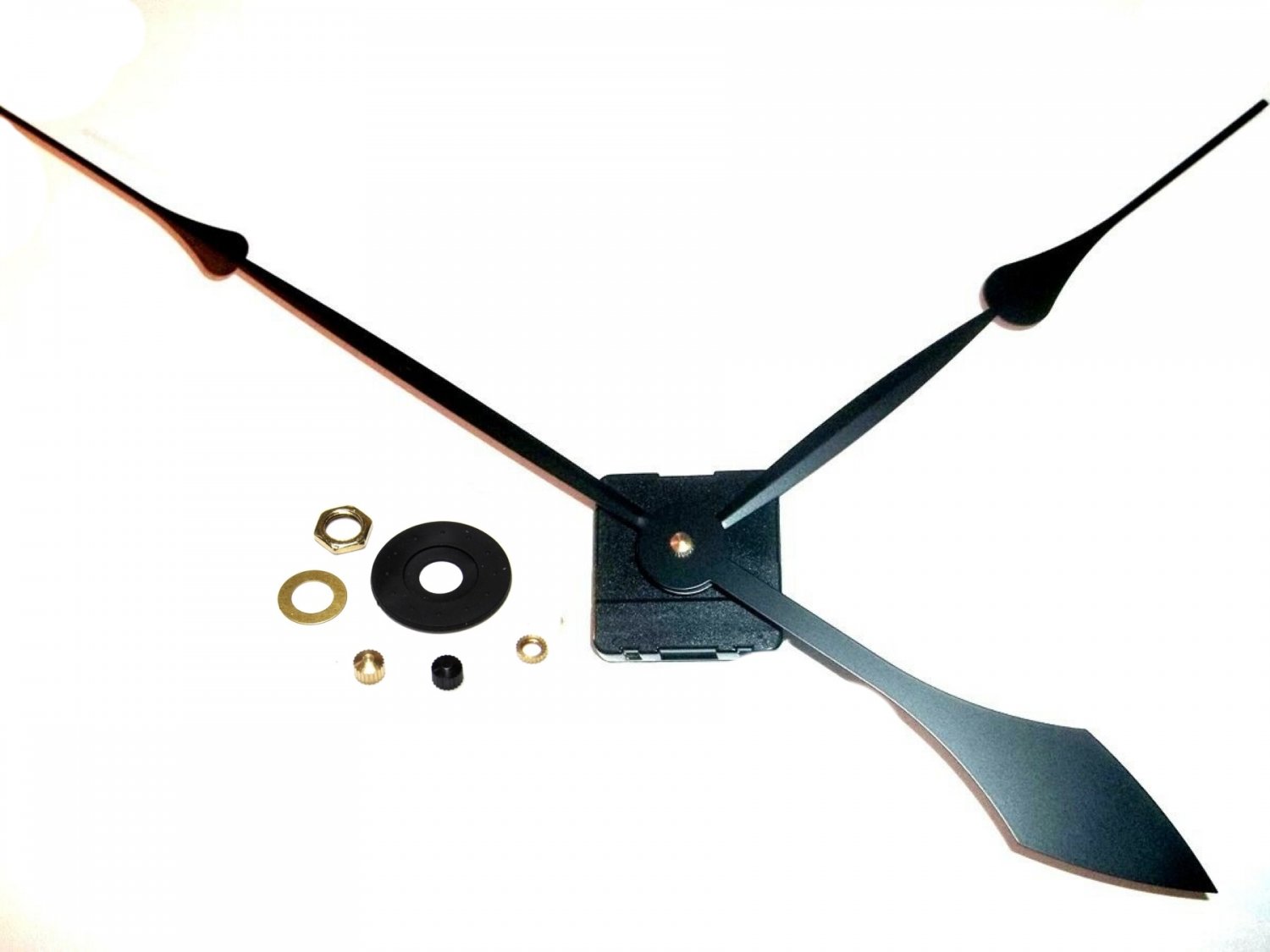

High Torque Clock Movement (Silent Sweep) Extended Shaft w/13-5/8 in. Black Spadad Hands (No10)

Make that large clock with this high torque quartz movement(silent sweep) with extended shaft for extra clearance when running long balanced hands, and large 13-5/8" balanced metal spaded hands. Includes high torque motor 7/16" threaded shaft with long 13-5/8" hands

This is a continuous motion high torque motor, super quiet, no advancing (stepping) of gears. Those of you with keen hearing will greatly appreciate it's quietness

high torque movement:
case size: 2-1/8" sq. x 5/8" thick
threaded shaft is 7/16" x 5/16" dia.
total shaft length is 13/16", including hand stem

13-5/8" balanced hands:
minute hand is 13-5/8" long, from center of mounting hole to end tip, total length is 21" end to end
hour hand is 10-1/4" from end tip to center of mounting hole, total length is 10-13/4" (end to end)

For direct wall mounting of motor you may need a metal clock hanger (not incl.)

3 yr. warranty on factory defects
requires one "AA" battery (not incl.)
brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)

I also have 1/4" and 9/16" threaded shaft, optional, in place of the furnished 7/16" shaft. If so, you may note on checkout.

I will attach a photo of assembly to your purchased email. You may also email me.

For larger volume please see my other listings

NOTE ON MEASURING:
Shaft length is brass threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clock face....then order the 38" threaded shaft)

MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length
