S&A chiller for optics element in construct prototype machine
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
S&A chiller for optics element in construct prototype machine

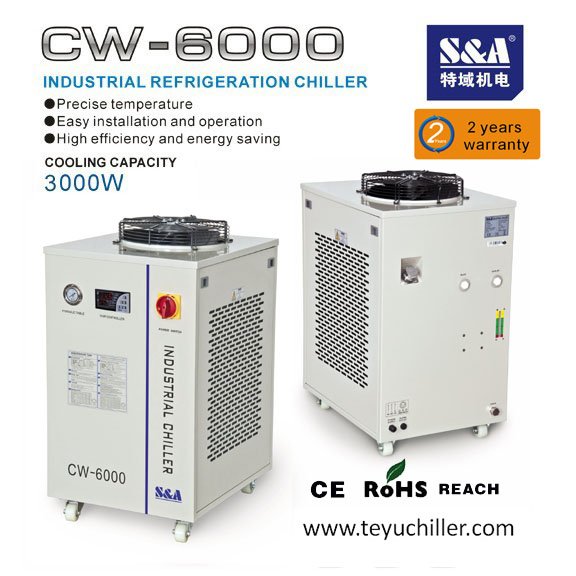

CW-6000 water chiller with compressor refrigeration is developed and produced by S&A company of China, it is fit for cooling for optics element in construct prototype machine.
CW-6000 water chiller has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. Since January 2016, the warranty period of S&A chiller has extended to 2 years.
S&A chiller parameter:
Model CW-6000AH CW-6000BH CW-6000DH CW-6000AI CW-6000BI CW-6000DI CW-6000AN CW-6000BN CW-6000DN
Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V
Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz
Current 1~4.5A 1~10A 1.5~5.5A 1.5~10.5A 2~6A 2~11A
Compressor power 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW
1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP
Refrigeration capacity 10286Btu/h 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h
3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW
2592Kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395Kcal/h 2711Kcal/h
Refrigerant R-22/R-410a
Refrigerant charge 800g 750g 650g 800g 750g 650g 800g 750g 650g
Precision ±0.5℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.05KW 0.1KW 0.37~0.75KW
Tank capacity 15L
Inlet and outlet Rp1/2"
Max. lift 12M 25M 28~53M
Max. flow 13L/min 16L/min 70L/min
N.W 60Kgs 72Kgs
G.W 70Kgs 82 Kgs
Dimension 67 X 47 X 89 cm (L X W X H)
Package dimension 74 X 60 X 109 cm(L X W X H)
Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona .
CONTACT S&A
TEL:+86-20-89301885, FAX:+86-20-84309967
SKYPE: teyuchiller
Email:[email protected], Website: http://www.teyuchiller.com
CW-6000 water chiller with compressor refrigeration is developed and produced by S&A company of China, it is fit for cooling for optics element in construct prototype machine.
