S&A air cool process chiller for welding cell of metal stamping

S&A air cool process chiller for welding cell of metal stamping

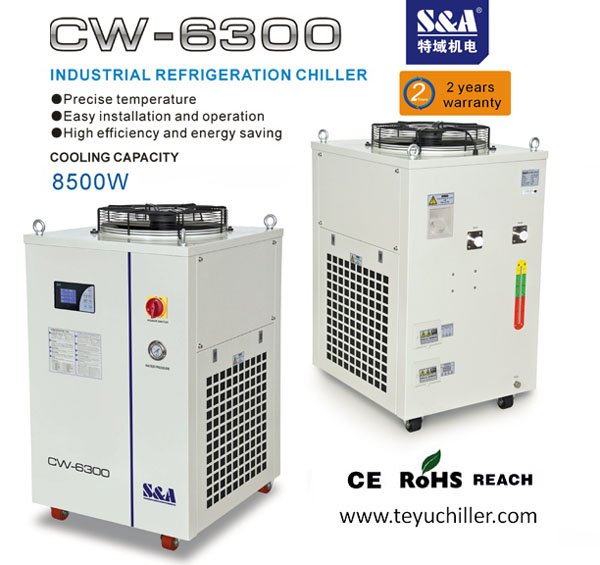

S&A CW-6300 series is air cool process chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
CW-6300 chiller is fit for cooling welding cell of metal stamping, it is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Since January 2016, the warranty period of S&A chiller has extended to 2 years.
S&A laser chiller CW-6300 features
1. 8500W cooling capacity; optional environmental refrigerant;
2.±1℃ precisely temperature control;
3.The intelligent temperature controller has 2 control modes, applicable to different applied occasions;
with various setting and display functions;
4.Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,
water flow alarm and over high / low temperature alarm;
5.Multiple power specifications; CE approval; RoHS approval;
6. Long working life and simple operation;
Model CW-6300AN CW-6300BN CW-6300EN
Voltage AC 1P 220V AC 1P 220V AC 3P 380V
Frequency 50Hz 60Hz 50Hz
Current 3~20 A 3~20 A 2~6A
Compressor power 2.8KW 2.7KW 2.6KW
3.73HP 3.6HP 3.46HP
Refrigeration capacity 28498Btu/h 27850Btu/h 27986Btu/h
8.35KW 8.16KW 8.2KW
7181Kcal/h 7017Kcal/h 7052Kcal/h
Refrigerant R-22 / R-410a
Refrigerant charge 2150g 2100g 2350g
Precision ±1℃
Reducer Capillary
Protection Overcurrent protection for compressor, flow alarm, over temperature alarm
Pump power 0.37~1.1KW
Tank capacity 45L
Inlet and outlet Rp1"
Max. lift 28-53M
Max. flow 70-116L/min
N.W 150Kgs
G.W 163Kgs
Dimension 83 x 65 x 117cm (L x W x H)
Package dimension 95 x 85 x 140cm (L x W x H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized.
