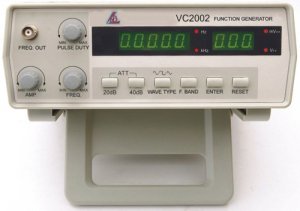

The key features

Output wave-form such as sine, square, rectangle, sawtooth and triangle waves.
frequency and amplitude can be adjusted.
4 or 5 digit LED display.
Range from 0.2Hz to 2MHz.
stability and low cost.
Convenient and safe to operate
General Specifications

Power supply: 110V/220V 50Hz/60Hz
Size: 270mm x 215mm x 100mm
Weight: 5 lbs
Working temperature: 0ºC ~ 40ºC
Technical Specifications

Frequency range: 0.2Hz ~ 2MHz. Seven ranges: 0.2Hz ~ 2Hz, 2Hz ~ 20Hz, 20Hz ~ 200Hz, 200Hz ~ 2KHz, 2KHz ~ 20KHz, 20KHz ~ 200KHz, 200KHz ~ 2MHz.
Output signal wave form: sine, square, rectangle, sawtooth and triangle waves.
Output signal amplitude (peak-peak value):
Non-attenuate (2Vp-p ~ 20Vp-p) ? 20% continuously adjustable.
Attenuate 20dB (0.2Vp-p ~ 2Vp-p) ? 20% continuously adjustable.
Attenuate 40dB (20mVp-p ~ 200mVp-p) ? 20% continuously adjustable.
Function output symmetry adjust scope: 20% ~ 80%
Sine wave distortion : less than 2%.
Triangle wave linear: more than 99%.
Square wave rise edge times: less than 100ns.
Square wave fall edge times: less than 100ns.
Square wave rise and fall pulse: less than 5%Vo.
Measurement error: less than 0.5%.
