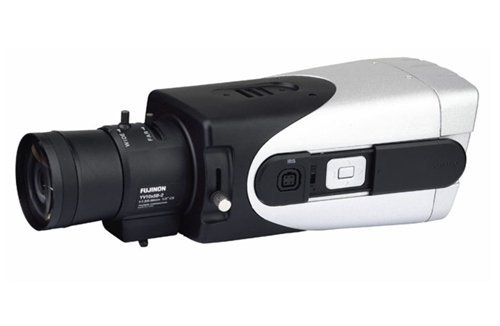

IC Realtime has recently developed the new EFFIO™ DSP line of cameras. The XL8 (CCD Box Style) camera, utilize Sony's new EFFIO chipset capable of achieving 700TVL horizontal lines and 960 horizontal pixels @ 18MHz. This represents the latest technology in camera development in manufacturing today.

Color reproduction is enhanced through the cameras DSP chips. The 3DNR feature produces un-blurred recorded videos of moving objects.

XL8 camera has dual stage Wide Dynamic Range (WDR) cameras with full OSD, RS485, True Day/Night function. The cameras are capable of operating at a low lux level of 0.0001. S/N ratio.

The XL-8 has a sensitivity improvement of a minimum of +4dB, a significant improvement when compared to the current HAD technology sensors.


- 1/3" SONY 960H WD Double Scan CCD II
- Effective Pixels: 960(H) X 494(V)
- True ICR Mechanical Day/Night feature
- 650TV Lines in Day Mode / 700TV Lines Night Mode
- WDR Mode (dual stage for automatic disabling at night time)
- 2D/3D DNR noise reduction
- 0.2 Lux at F1.2 / 0.0001 Lux at F1.2 (DSS on)
- Motion Detection
- Face Detection
- Full OSD Menu accessible via RS-485 or on camera buttons
- Back Focus Function for easy set up
- 4 Privacy Zones
- Camera Titles
- Mirror/Reverse/Flip image mode
- RS485 connection for remote programming
- CS and C mount Lens Support
- Dual Voltage 12VDC / 24VAC


Specifications are as follows:

Imager / Electrical

Image Sensor- 1/3" Sony Double Scan CCD
Resolution- Color = 650 TV Line / Black & White = 700+ TV Line
Effective Pixels- NTSC = 768 (H) x 494 (V) PAL = 752 (H) x 582 (V)
Synchronization- Internal / Line Lock
Scanning System- 2:1 Interlace
Video Output- 1.0Vp-p Composite. 75 Ohms
S/N Ratio- More than 52 dB (AGC off)
Min Illumination- 0.0001 Lux (F1.2)
Lens- C/CS Mount (Manual / DC / Video)
True Day / Night- With mechanical filter change ( a blue filter built-in )


OSD Menu Options

WDR- OFF / WDR1 / WDR2
2DNR / 3DNR- 2DNR : OFF / 0~6, 3DNR : OFF / 0~31
White Balance- ATW / Push Lock / Hold / User selectable ( Push : 1,800K~10,500K )
Gain Control- OFF 12dB / 18dB / 24dB / 30dB / 36dB / 42dB / 44dB selectable
Shutter Speed- NTSC = 1 / 60sec ~ 1 / 10,000 PAL = 1 / 50sec ~ 1 / 10,000
Digital Slow Shutter- OFF / 2~160x (DSS)
Privacy Masking- OFF / Mosiac / Color (4 programmable zones)
Digital Zoom- OFF / 1.5x / 2x / 3x (Digital Pan / Tilt)
Motion Detect- OFF / On ( 4 Programmable zones )
Face Detection- OFF / On ( 4 face detections )


Power / Physical / Environmental

Power- 12 VDC (230mA) / 24 VAC (130mA)
Operating Temp- 14˚F ~ 122˚F ( -10˚C ~ +50˚C )
Humidity- Within 90% RH
Dimensions- 2.44" (62mm) Width x 2.28" (58mm) Height x 5.51" (140mm) Length
Weight- 1.10lb or 17.64oz or 500g
