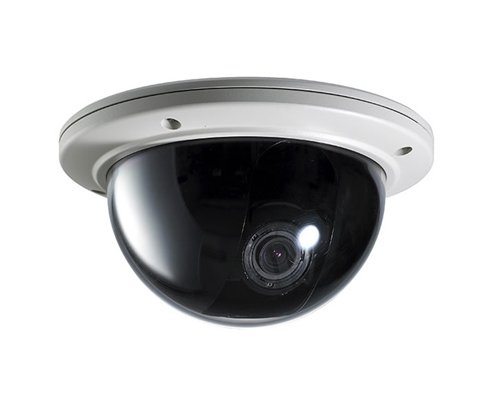

The EL-430PIXIM dome provides a number of technical improvements in picture quality for viewing areas of extreme dynamic lighting conditions. It is powered by Pixim's Ultra Dynamic Pixel system. This PIXIM technology overcomes an over-exposure problem against strong back-light situations. As each pixel acts as a camera, the picture taken by one pixel does not affect the picture quality captured by other pixels. Based on this technology, the EL430PIXIM delivers a very high quality, high resolution and very accurate picture.

Facial and object recognition in a variety of light conditions such as doorways, windows, shadows, high-contrast environments, and outdoors with strong light reflections are easily achievable with EL-430PIXIM.



FEATURES:

High performance 1/3" Pixim WDR digital imaging
3.3-12mm Aspherical Extra-Low Dispersion Glass Vari-focal Lens
High resolution of 540 TVL at Day / 560 TVL Night
Greatly enhanced Sensitivity of 0.03 Lux at F1.2
Super Wide Dynamic Range (S WDR)
Dual-voltage power supply ( with auto line-lock) DC12V or AC24V
3 layers of IR filter
Easy to use OSD function
Mechanical IR filter eliminates color interferance in the night
Vandal-Proof Slim All Weather Housing


Specifications are as follows:

Imager / Electrical

Image Sensor- 1/3" Pixim WDR digital imaging device
Effective Pixels- 380,000 pixels 720 ( H ) x 540 ( V )
H.Resolution- 540 TVL ( Day ) / 560 TVL ( Night )
Sync System- Internal 12VDC / Line Lock 24VAC
Scanning system- NTSC / PAL - compatible
Video output- 1.0Vp-p Composite. 75 Ohms
S/N Ratio- More than 50dB ( AGC Off )
Smear Effect- 0.005%
Minimum Illumination- 0.6 Lux at F1.4 (DSS Off ), 0.03 Lux at F1.4 ( DSS on )
Lens- 3.3~12mm Vari-focal Lens ( F1.4 )


OSD Menu Options

Backlight Compensation- On / Off by OSD
Camera ID- Up to 11 Charaters ( alphanumeric & symbols )
Gamma Correction- Standard r = 0.45 by OSD selectable ( 25%~100% )
Gain Control- Off / Low / Middle / High
Digital slow shutter- Off / 2x / 4x / 6x / 8x / 16x / 32x ( DSS )
WDR- Off / Low / Middle / High
Privacy- Off / On ( 6 zone selectable )
White Balance- ATW / ATW Limit / AWC / Manual - User selectable
Motion Detection- Off / On ( zone selectalbe )
Day / Night- Auto / Color / B/W


Power / Physical / Environmental

Power- 12VDC ( 200mA ) / 24VAC ( 110mA )
Operating Temperature- 14 ° F~122 ° F (-10 ° C ~+ 50 ° C)
Operating Humidity- Within 90%
Dimensions- 6.39" (162.4mm) Diameter x 3.29" (83.5mm) Height
Weight- 2.87lb or 45.86oz or 1300g
