$659.99
Add to Cart

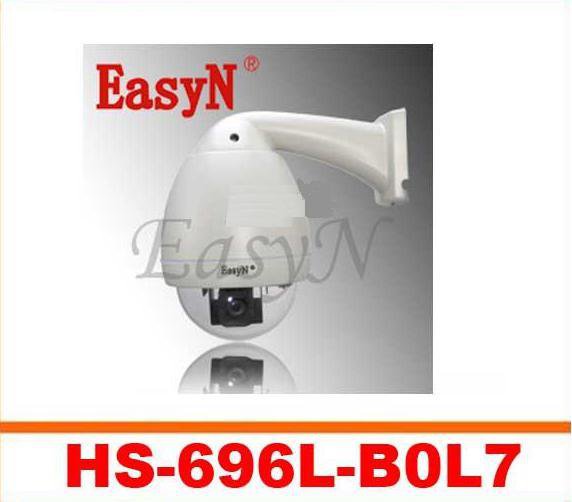

EasyN HS-696L-B0L7 ver. H3 Outdoor use 27X Optical Zoom Constant Speed Dome IP Camera
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
EasyN HS-696L-B0L7 ver. H3 Outdoor use 27X Optical Zoom Constant Speed Dome IP Camera
Features:
'Support IE browser view in Chinese and English,
Friendly GUI, DIY installation
'Free domain name bounded
'H.264 standard compression format
dual stream,D1/CIF/QCIF optional for resolution
'Support 27X optical zooming
'Mobile view,support most of the intelligent cellphone
'Support Email photo, FTP photo , FTP record,
when alarm is triggered
'Certified by Microsoft ActiveX
Specifications:
Model No. :HS-696L-B0L7 H3
Features
System security
Supports three-level account, password, user multi-level authority management
DDNS(free)
Built in free DDNS system,like http://demo.easyn.hk,`demo` is serial code
IE multi-channel view client(free)
No need to install software, support multi-channel monitor &management & check alarm picture via IE
CMS
EasyN multi-window mangement software,no user limited , centralized monitor, remote record
Superiority
Support monitor via computer and most of intelligent cellphones in the market(such as Android ,sambian,Iphone cellphone)
CPU
Operation system
Embedded Linux OS
Video
Compression format
H.264 main profile level 3,dual stream
Signal system
PAL or NTSC
Sensor
1/4 SONY CCD
Horizontal resolution
480TVL
Frame rate
Main stream:1-25fps second stream:1-25fps
Resolution
Main stream: D1, CIF, QCIF Second stream:CIF, QCIF
shutter speed
PAL:1/50s- 1/100,000s NTSC:1/60s -1/100,000s
Video adjustment
Brightness, contrast, chroma, saturation.
Minimum illumination
0.1 Lux/F1.2
S/N ratio
>48DB
WB,BLC
Auto
Optical zooming
27X optical zoom f=3.2-86.7mm
Audio
Compression format
G.726/G.711
Input/Output
Two way audio,one channel linear input,one channel linear output
Network
Network interface
10Base-T/100Base-TX Ethernet slot
Protocol
TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
Online visitor
Support 10 visitors at the same time
IP mode
Dynamic IP address, static IP address, PPPOE
P/T
P/T control
Built-in RS485 control
Rotation angle
Horizontal: 360 vertical: 90
Rotation speed
Horizontal: 20 /s vertical: 20 /s
Preset positon
16 preset positions, auto-cruise
Others
Use enviroment
Outdoor use
Waterproof grade
IP66
Power
DC15V 2.4A
Temperature
-10~50 C
Humidity
95% RH
Size
Item size:362*373*268mm (L*W*H)
Package size:570*328*268mm (L*W*H)
Weight
G.W.: 5671g (Note: for real products )
Accessories
Power adapter,CD,manual,warranty card,bracket,srews
Alarm
Motion detection regions
support 4 Motion detection regions
Alarm action
Support Email photo.etc.
System
System requirement
Microsoft Win98 SE/ME/2000/XP,Vista IE5.0, NET4.5,firefox,chrome
Certification
Certificate
ISO FCC CE SASO RoHS
-------------------------------------------------------------
Payment:
We accept PayPal as payment which includes purchase Protection for Recipient. Please make payment in 3 days after buying item. Please only purchase what you intend on paying for.
Shipping & Processing:
Processing takes 5 days or less for Double Quality Testing, Preparation & Packaging. We ship World Wide. Shipping is from China mainland and items are shipped by EMS (5-10 Days), DHL (3-5 Days), FedEx (3-7 Days) or UPS (3-7 Days). We select the most reliable and efficient way to ship to you. Most quoted shipping prices are for DHL Shipping. All though we will do what we can by marking the item price way down to help with your country's customs/import Tax, the Recipient is still responsible for customs/import tax's do in there country.
Warranty:
Once received we have a 30 days refund policy on defective items. Buyer is responsible on return of the defective item with tracking number information.
12 month replacement warranty policy on defective items. Buyer is responsible on the return of the defective item and provide tracking number information.
