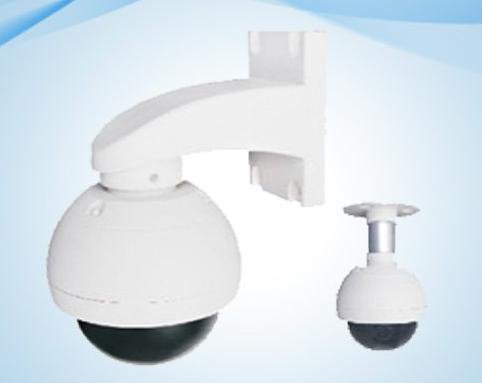

EC-SP3286 PTZ CCD camera Mini 360 Degree Pan Tilt Zoom Dome Camera CCTV Security camera
More than 10 available
Details
Shipping: US-Mainland: $38.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
EC-SP3286 PTZ CCD camera Mini 360 Degree Pan Tilt Zoom Dome Camera CCTV Security camera
Specs:
Model No. EC-SP3886 EC-SP3286 EC-SP4086
Camera Type 4Mini 360 Degree Pan Tilt Zoom Dome Camera
Image Sensor 1/3 Inch SONY Super HAD CCD Effective Pixels PAL:500(H) x 582(V) 290K
NTSC:510(H) x 492(V) 250K
Sensing Area 4.9mm x 3.7mm
Signal System PAL /NTSC
Horizontal Resolution 420 TV Lines
Min. Illumination 0.5 Lux/F1.2(IR OFF)
Lens Mount Synchronous Focus 4-9 mm Lens (Option:5-15/8-20mm)
Zoom 3X Optical Zoom
S/N Ratio More Than 48dB (AGC Off)
Electronic Shutter 1/50(1/60) ~ 1/10,000 Sec
White Balance Auto
AGC Auto
Pan Speed 0-60/s
Tilt Speed 0-30/s
Preset speed 100/s
Pan Range 360Continues rotation
Tilt Range 0-90
Communication RS485 Control Built-in Decoder
Control Protocol PELCO-P,PELCO-D
Baud Rate 1200/2400/4800/9600bps
Address 0-255
Preset Points 32 points
Protection IP66 for outdoor use(Wall Mount)
I/O Connector Power : DC Power Jack , Video Output : BNC,RS485+-
Video Output Level 1.0 Vp-p (75 Ohms, composite)
Supplied Voltage DC12 Voltage
Power Consumption Less than 600mA
Product Size 123mm×146mm(×H)
Package Size 240(L)x170(W)x200(H)MM
Weight(gross) Approx.1.1kg
-------------------------------------------------------------
Payment:
We accept PayPal as payment which includes purchase Protection for Recipient. Please make payment in 3 days after buying item. Please only purchase what you intend on paying for.
Shipping & Processing:
Processing takes 5 days or less for Double Quality Testing, Preparation & Packaging. We ship World Wide. Shipping is from China mainland and items are shipped by EMS (5-10 Days), DHL (3-5 Days), FedEx (3-7 Days) or UPS (3-7 Days). We select the most reliable and efficient way to ship to you. Most quoted shipping prices are for DHL Shipping. All though we will do what we can by marking the item price way down to help with your country's customs/import Tax, the Recipient is still responsible for customs/import tax's do in there country.
Warranty:
Once received we have a 30 days refund policy on defective items. Buyer is responsible on return of the defective item with tracking number information.
12 month replacement warranty policy on defective items. Buyer is responsible on the return of the defective item and provide tracking number information.
Specs:
Model No. EC-SP3886 EC-SP3286 EC-SP4086
Camera Type 4Mini 360 Degree Pan Tilt Zoom Dome Camera
Image Sensor 1/3 Inch SONY Super HAD CCD Effective Pixels PAL:500(H) x 582(V) 290K
NTSC:510(H) x 492(V) 250K
Sensing Area 4.9mm x 3.7mm
Signal System PAL /NTSC
Horizontal Resolution 420 TV Lines
Min. Illumination 0.5 Lux/F1.2(IR OFF)
Lens Mount Synchronous Focus 4-9 mm Lens (Option:5-15/8-20mm)
Zoom 3X Optical Zoom
S/N Ratio More Than 48dB (AGC Off)
Electronic Shutter 1/50(1/60) ~ 1/10,000 Sec
White Balance Auto
AGC Auto
Pan Speed 0-60/s
Tilt Speed 0-30/s
Preset speed 100/s
Pan Range 360Continues rotation
Tilt Range 0-90
Communication RS485 Control Built-in Decoder
Control Protocol PELCO-P,PELCO-D
Baud Rate 1200/2400/4800/9600bps
Address 0-255
Preset Points 32 points
Protection IP66 for outdoor use(Wall Mount)
I/O Connector Power : DC Power Jack , Video Output : BNC,RS485+-
Video Output Level 1.0 Vp-p (75 Ohms, composite)
Supplied Voltage DC12 Voltage
Power Consumption Less than 600mA
Product Size 123mm×146mm(×H)
Package Size 240(L)x170(W)x200(H)MM
Weight(gross) Approx.1.1kg
-------------------------------------------------------------
Payment:
We accept PayPal as payment which includes purchase Protection for Recipient. Please make payment in 3 days after buying item. Please only purchase what you intend on paying for.
Shipping & Processing:
Processing takes 5 days or less for Double Quality Testing, Preparation & Packaging. We ship World Wide. Shipping is from China mainland and items are shipped by EMS (5-10 Days), DHL (3-5 Days), FedEx (3-7 Days) or UPS (3-7 Days). We select the most reliable and efficient way to ship to you. Most quoted shipping prices are for DHL Shipping. All though we will do what we can by marking the item price way down to help with your country's customs/import Tax, the Recipient is still responsible for customs/import tax's do in there country.
Warranty:
Once received we have a 30 days refund policy on defective items. Buyer is responsible on return of the defective item with tracking number information.
12 month replacement warranty policy on defective items. Buyer is responsible on the return of the defective item and provide tracking number information.
