$135.00
Add to Cart
Handheld Satlink WS 6908 DVB-S digital satellite finder meter
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

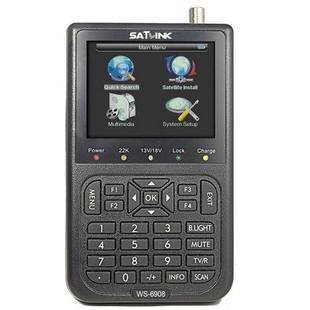

Satlink WS 6908 digital satellite signal finder meter
One year WarrantyMain Function:
It's with English / Russian / French / Italian /Spanish / German / Nederlands / Polish / Slovak / Arabic / Farsi / Portuguese / Turkish menu.
It is a battery powered hand held Satellite alignment meter demodulating DVB-S Signal. It's very convenient for installer to catch quick and accurate Alignment for Antenna to the best position.
It's with microprocessor controller, reliable and stable performance. When it's turned on, channel picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local DVB-S Parameter. Also, it enables you to select big menu window for data figure which is helpful for alignment.
It shows Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound
It detects very faint signal, and supports antenna power OFF/13V/18V selectable.
It's with auto-protection for LNB short-circuit. It includes both AV IN and AV OUT for Camera, LCD...etc
It's used with 12V Power Adaptor when you need to use external power.
It includes high capacity Lithium Battery 8.4V3000mAh which works for more than 4 hours after it's fully charged.
Technical Specification:
System Capabilities
Fully DVB-S Compliant
Yes
LNB input
Connector
F type, Female
Frequency Range
950MHz-2150MHz
Signal Level
-65dBm~-25dBm
LNB Powewr
13/18V,Max350mA
LNB Switch Control
22KHz
DiSEqC
Ver 1.0/ 1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC Capable
Yes
System Resources
Processor
32bit processor (133MHz)
FLASH
8Mbyte
SDRAM
4*16Mbyte
Video Decoder
MPEG 2
MP@ML
Data Rate
Max15M bits/s
Resolution
720*576,720*480
Video format
PAL/NTSC/SECAM
Audio
MPEG
MPEG-1&2
Type
Single
Sampling Rate
32,44.1 & 48KHz
Data Transfer
Connector
USB
Power Supply
LI-ION battery
3000 mAH/8.4V Max
Power Adaptor
In
AC 100-220
Out
DC 12V
Physical characteristics
Size
9.5x15.5x4.5 (cm)
Net Weight
0.5KG
1 X CD user manu
1 X satellite finder
1 X bag
1 X Adaptor
1 X belt
1 X car charger
1 X AV line
Package Details:
TI172
One year WarrantyMain Function:
It's with English / Russian / French / Italian /Spanish / German / Nederlands / Polish / Slovak / Arabic / Farsi / Portuguese / Turkish menu.
It is a battery powered hand held Satellite alignment meter demodulating DVB-S Signal. It's very convenient for installer to catch quick and accurate Alignment for Antenna to the best position.
It's with microprocessor controller, reliable and stable performance. When it's turned on, channel picture, Signal Strength and Signal Quality will be showed on LCD Screen after you set up your local DVB-S Parameter. Also, it enables you to select big menu window for data figure which is helpful for alignment.
It shows Azimuth and Elevation, CBER/VBER, S/N, Signal Strength and signal lock sound
It detects very faint signal, and supports antenna power OFF/13V/18V selectable.
It's with auto-protection for LNB short-circuit. It includes both AV IN and AV OUT for Camera, LCD...etc
It's used with 12V Power Adaptor when you need to use external power.
It includes high capacity Lithium Battery 8.4V3000mAh which works for more than 4 hours after it's fully charged.
Technical Specification:
System Capabilities
Fully DVB-S Compliant
Yes
LNB input
Connector
F type, Female
Frequency Range
950MHz-2150MHz
Signal Level
-65dBm~-25dBm
LNB Powewr
13/18V,Max350mA
LNB Switch Control
22KHz
DiSEqC
Ver 1.0/ 1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC Capable
Yes
System Resources
Processor
32bit processor (133MHz)
FLASH
8Mbyte
SDRAM
4*16Mbyte
Video Decoder
MPEG 2
MP@ML
Data Rate
Max15M bits/s
Resolution
720*576,720*480
Video format
PAL/NTSC/SECAM
Audio
MPEG
MPEG-1&2
Type
Single
Sampling Rate
32,44.1 & 48KHz
Data Transfer
Connector
USB
Power Supply
LI-ION battery
3000 mAH/8.4V Max
Power Adaptor
In
AC 100-220
Out
DC 12V
Physical characteristics
Size
9.5x15.5x4.5 (cm)
Net Weight
0.5KG
1 X CD user manu
1 X satellite finder
1 X bag
1 X Adaptor
1 X belt
1 X car charger
1 X AV line
Package Details:
TI172
