Satellite Spectrum Analyzer Satellite Finder Meter DVB-S WS6902

Digital Satellite Finder Meter DVB-S With Spectrum Analyzer WS-6902,Professional Meter Version Includes A Digital Satellite Spectrum Analyzer Plus Wach All FTA Satellite Channels On Colour LCD Screen

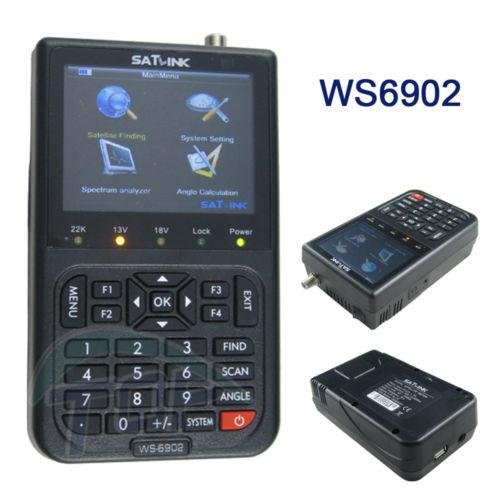

Sat-link WS-6902 Satellite Finder Meter With Spectrum Analyzer Specifications:

First Time Available On Any Low Priced Satellite Meter That You Are Able To:

View the actual channel on the screen of the meter.
Quickly and accurately align the satellite dish and instantly check the stability of the channel right on the screen of the meter.
Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
There is never a need to send your meter in for a upgrade.
The meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
SPECIAL FEATURES INCLUDE:

View And Adjust Satellites With The Built In Spectrum Analyzer
View All The Actual FTA Satellite Channels On The Meters Screen.
Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
Automaticlly Calculates Dish Angles And Settings Based On Your Longditude And Latitude.
Calculates Your Dish Angles And Alignment Settings so you can quickly and accurately align the satellite dish and you can instantly check the stability of the channel right on the screen of the meter.
Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
View All FTA Satellite Channels On Screen With Sound.
OTHER FEATURES INCLUDE:

3.5 Inch High definition TFT LCD Screen which Can show live Channels
NEC Solution
Shows both S/N and C/N
Shows strength and quality readings
Sound and Light Alarm When Lock Signal
Shows channel picture
Show numerical reading and bar reading
Digital Meter for Signal Strength(in numerical & #118alue and picture)
Easy Satellite Manager ( EDIT, delete and SCAN)
Edit TP, Frequency, LNB switch, Symbol Rate etc.
Completely programmable by the user
Input Frequency 950-2150MHz
Input Level -65-25dBm
Input Impedance 75(ohm)
Auto Calculate Angle of AZ ,EL
Upgrade S/W by PC
Easy to carry, size only 9.5cm X 15.5cm X 4.5cm
DisEqC Control
22KHz Control
Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours
Indicator Lights for 13/18 volts
Indicator lights for 22 KHz
USB port for software upgrades
Items Included:

Sat-Link Meter WS6902 With Battery
USB Software Upgrade Cable
Neck Strap
Carrying case
12VDC Power Charger
Two Pin 12VAC Mains Power Charger
Technical Specification:

System capabilities Fully DVB compliant Yes
LNB/Tuner input Connector F type,male
Frequency range 950MHz-2150MHz
Signal lever -65dBm~-25dBm
LNB supply 13/18V,max400mA
LNB switch control 22KHz
DiSEqC Ver 1.0
Demodulator Front end QPSK
Symbol rate 2Mbps~45Mbps
SCPC and MCPC Capable Yes
Spectral inversion Auto conversion
System resource Processor 32bit processor (200MHz)
SDRAM 16Mbyte
FLASH 2Mbyte
EEPROM 8Kbyte
Video decoder MPEG 2 Main Proflie@Main Level
Data Rate up to 15M bits/s
Resolution 720*576,720*480
Video format PAL/NTSC/SECAM
MPEG Audio MPEG 1 layer 1&2
Type Mono
Sampling rates 32,44.1 and 48KHz
Serial data interface Connector USB type
Power supply Li-oN Battery 1950 mA
Supply voltage 12.6Volt
charger 90-240V
Panel connectors Digital tuner input F type, male
Physical Specification Size 9.5x15.5x4.5 (cm)
Weight(Net) 0.5 Kg
