The processor main parameters

Cortex-M3 processor highest running frequency for 72 MHz
256 kB Flash
64 kB SRAM
USB 2.0 full-speed device/host/OTG
2 CAN (2.0 B Active)
10/100 Ethernet MAC
IEEE1588 hardware
10 timers
5 UART
2 CAN
ISP and IAP programming


Hardware configuration

20 needle JTAG interface standards
10/100 M Ethernet interface
USB2.0 interface from equipment (mini)
USB2.0 Lord device interface
USB OTG (with within the piece PHY)
A fully functional serial ports (ISP)
Two way CAN2.0 interface
SD memory card interface
AD adjustable resistance
24 C04 serial EEPROM
8 a controllable LED
Three key


Network part

Http web server program-which can be read on the control board LED through a web AD value, etc.
Http upload-can through the network to the local file transfer to development board SD card, can also check out in a web page in SD card in the documents and content, the function is strong!!!!!
LEDSwitch-but by using computer use UDP or TCP mode control development board hardware resources, PC program providing VC++ code.
An SNMP agent program-can be through the PC software with the network management agreement on the board control development hardware resources, PC program providing VC++ code.
Telnet server supporting procedures-can Telnet program through on the control board machines, such as LED.
SMTP client program-can E-mail to your mailbox oh.
DNS analytical procedures-such as www.google.com can get IP address 66.249.89.104
LwIP web server program-use of open source LwIP protocol stack, but through the web page on the control board LED and read the AD value.


USB part

USB the main controller reading and writing U plate program-only realize read U disk function.
USB the main controller USB keyboard program-may meet USB interface of keyboard.
USB card reader program-support SDHC card SD card, the biggest support, support FAT12, 32 GBytes FAT16 and FAT32 file format.
USB program-can turn serial ports USB equipment into a serial port equipment virtual.
USB HID equipment program-this control type of equipment to make good points.


CAN part

With the operating system CAN program-STM32F107 take two road CAN not meet many other board CAN test the communication CAN, at the proven RTX operation under the performance of the system.


SD storage part

Take the file system SD card program-support SDHC card SD card, the biggest support, support FAT12, 32 GBytes FAT16 and FAT32 file format.


IAP part

The bootloader-can be way UART through serial transmission agreement with Ymodem update application, provide modified test procedures.


Basic function:

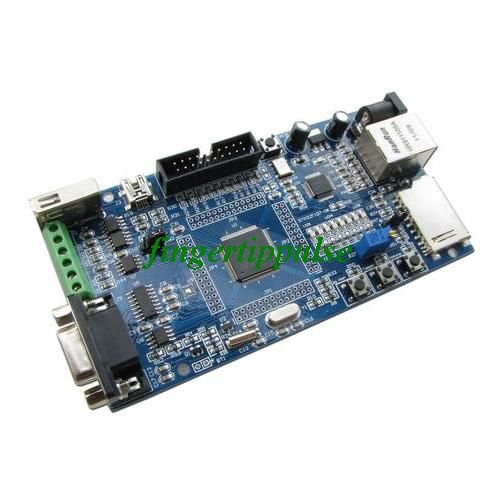

STM32F107 x1 development board
Mini USB line x1
Serial line x1
Crossover cable x1
CD: development x1

TE38
