$59.00
Add to Cart

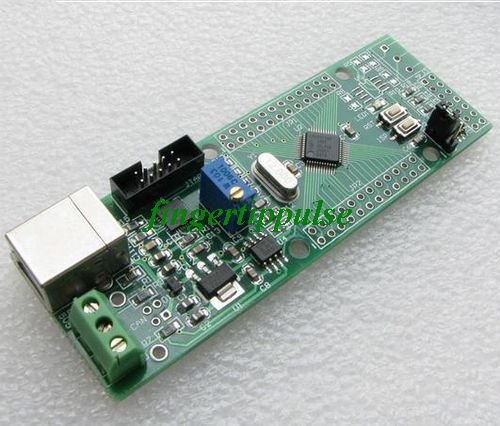

NXP LPC11C14 development board with C_CAN Cortex M0 kernel
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Chip main function
ARM Cortex-M0 processor
Frequencies up to 50 MHz
32 kB Flash
8 kB of an SRAM
UART
Standard RS485 transceiver control
8 channel 10-bit ADC
SPI interface
The I2C interface
C_CAN controller
CAN CANopen driver. And
SWD interface
On-board function
SWD debugging interface (10 Pin 2.0 mm spacing) support JLINK/ULINK2
USB turn UART interface (CP2102, but through the Flash Magic download program)
A CAN interface
IIC EEPROM
A controllable LED
Two keys
10 K adjustable resistance
So I/O leads
2.54 mm double row needles interface can be mounted on universal board
Shipping list:
LPC11C14 x1 development board
USB line x1
TE42
ARM Cortex-M0 processor
Frequencies up to 50 MHz
32 kB Flash
8 kB of an SRAM
UART
Standard RS485 transceiver control
8 channel 10-bit ADC
SPI interface
The I2C interface
C_CAN controller
CAN CANopen driver. And
SWD interface
On-board function
SWD debugging interface (10 Pin 2.0 mm spacing) support JLINK/ULINK2
USB turn UART interface (CP2102, but through the Flash Magic download program)
A CAN interface
IIC EEPROM
A controllable LED
Two keys
10 K adjustable resistance
So I/O leads
2.54 mm double row needles interface can be mounted on universal board
Shipping list:
LPC11C14 x1 development board
USB line x1
TE42
CN, Guangdong
