$24,000.00
Add to Cart

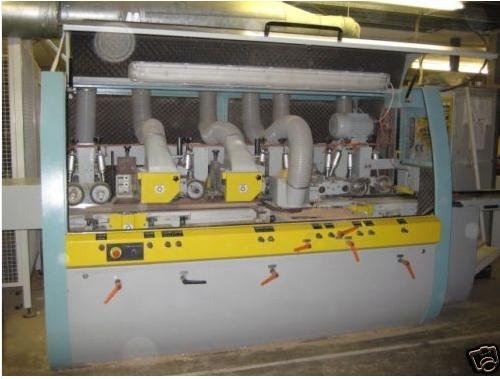

Interwood M623 6 Headed Moulder
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
6 Head Through Feed Planer Moulder
Model M623
Capacities
Maximum size of timber admitted width……………………………………………. 15-230mm
Maximum size of timber admitted thickness………………………………………. 10-150mm
Feed System
* Maintenance free full cardan shaft drive to feed works for balanced drive performance with individual worm reduction gear box to each feed roller station.
* Feed roller diameter 140mm
* Infinitely variable feed speeds 6-24 Mt/min
* Feed motor power 4kW / 5.5hp
* Steel feed rollers up top head are hardened and chromed to resist wear and to prevent chips sticking to them.
* Polyurethane feed rollers after top head
* 1 unit infeed driven serrated bed roller
* 1 unit full width idle plain bed roller between first and second top heads
* 1 unit driven plain out feed bed roller
* Intermediate top driven feed roller station with pneumatic loading for feeding
* Pneumatic pressures to feed roller loading with pressure regulator controls
* Powered rise and fall to feed beam with .75kw / 1hp motor
* All feed rollers and pressures move with top beam rise and fall, including safety switches at extreme points
* Inch forward and reverse to feed with duplicate control at top head position for fast and easy setting
Features
* Electro magnetically braked motors
* Edge reference straightening system
* 25mm high fences
* Side guide after near side head moving with near side head
* Chip breaker before top heads with vertical screw adjustment
* 2000mm pre-straightening infeed table with fence each 10mm adjustment
* 40mm diameter spindles belt driven, with spindle speed of 6000rpm
* All spindles have horizontal and vertical adjustment for fast and accurate setting, except first bottom head and second bottom head which have vertical only
* Independent manual vertical adjustment to top head
* High precision spindle units
* All bed plates and fences have 0.3mm hardened chrome HRC at 60°
* Manual bed lubrication system
* One piece heavy duty main frame with optimum vibration absorption
* Safety interlock at infeed to prevent feeding oversized material
* Lift up sound and safety enclosure including internal lighting and safety interlocks
* Dust hoods
* Toolkit
* Instruction and maintenance manual, electrical diagram and parts list
* Machine supplied with electrics arranged 3/50/415v
* Machine conforms to CE specification
Model M623
Capacities
Maximum size of timber admitted width……………………………………………. 15-230mm
Maximum size of timber admitted thickness………………………………………. 10-150mm
Feed System
* Maintenance free full cardan shaft drive to feed works for balanced drive performance with individual worm reduction gear box to each feed roller station.
* Feed roller diameter 140mm
* Infinitely variable feed speeds 6-24 Mt/min
* Feed motor power 4kW / 5.5hp
* Steel feed rollers up top head are hardened and chromed to resist wear and to prevent chips sticking to them.
* Polyurethane feed rollers after top head
* 1 unit infeed driven serrated bed roller
* 1 unit full width idle plain bed roller between first and second top heads
* 1 unit driven plain out feed bed roller
* Intermediate top driven feed roller station with pneumatic loading for feeding
* Pneumatic pressures to feed roller loading with pressure regulator controls
* Powered rise and fall to feed beam with .75kw / 1hp motor
* All feed rollers and pressures move with top beam rise and fall, including safety switches at extreme points
* Inch forward and reverse to feed with duplicate control at top head position for fast and easy setting
Features
* Electro magnetically braked motors
* Edge reference straightening system
* 25mm high fences
* Side guide after near side head moving with near side head
* Chip breaker before top heads with vertical screw adjustment
* 2000mm pre-straightening infeed table with fence each 10mm adjustment
* 40mm diameter spindles belt driven, with spindle speed of 6000rpm
* All spindles have horizontal and vertical adjustment for fast and accurate setting, except first bottom head and second bottom head which have vertical only
* Independent manual vertical adjustment to top head
* High precision spindle units
* All bed plates and fences have 0.3mm hardened chrome HRC at 60°
* Manual bed lubrication system
* One piece heavy duty main frame with optimum vibration absorption
* Safety interlock at infeed to prevent feeding oversized material
* Lift up sound and safety enclosure including internal lighting and safety interlocks
* Dust hoods
* Toolkit
* Instruction and maintenance manual, electrical diagram and parts list
* Machine supplied with electrics arranged 3/50/415v
* Machine conforms to CE specification
GB, London
