$15.00
Add to Cart
BNC Ground Loop Isolator Video Surveillance
More than 10 available, 2 sold
Details
Shipping: US-Mainland: $2.50 (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

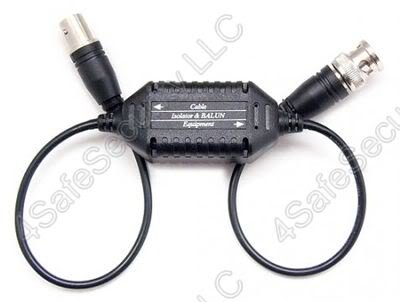

BNC Ground Loop Isolator Video Surveillance
Video Ground Loop Isolator could reduce "Ground Loop Interference" with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.
Description:
• 100% brand new and high quality
• BNC male to BNC female with mini cable 15 on both sides
• Passive, no power required
• Prevents video-signal distortion caused by video ground loops
• Eliminates picture tearing , cross talk and rolling
• Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection
• Built in TVS for surge protection
• Insertion loss: 0.5dB
• Frequency response: 0-3dB at 10Mhz
• Input / output resistance: 75ohm
• Isolation voltage: DC 600V
• Insulation resistance: 100m ohm
• Transient voltage suppressors: 12Vrms
• Cable length: 50cm( approx)
Package includes:
• BNC Ground Loop Isolator Video Surveillance x 1
• English user manual x 1
Video Ground Loop Isolator could reduce "Ground Loop Interference" with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.
Description:
• 100% brand new and high quality
• BNC male to BNC female with mini cable 15 on both sides
• Passive, no power required
• Prevents video-signal distortion caused by video ground loops
• Eliminates picture tearing , cross talk and rolling
• Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection
• Built in TVS for surge protection
• Insertion loss: 0.5dB
• Frequency response: 0-3dB at 10Mhz
• Input / output resistance: 75ohm
• Isolation voltage: DC 600V
• Insulation resistance: 100m ohm
• Transient voltage suppressors: 12Vrms
• Cable length: 50cm( approx)
Package includes:
• BNC Ground Loop Isolator Video Surveillance x 1
• English user manual x 1
