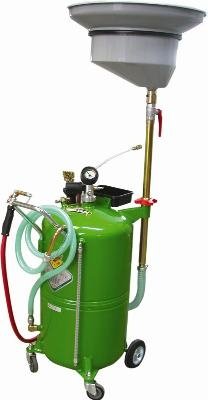

Features
* Adjustable waste oil drain with minimum height 55 inches and maximum height 75 inches
* 23-gallon wheel mounted tank with front and rear ball bearing wheels (3” front casters and 6”
rear wheels)
* Centrally mounted bowl on swivel joint for positioning
* Maximum collection capacity without draining is 19.7 gallons
* 22.5 inch diameter oversize funnel
* 3.5 gallon capacity collection bowl with adjustable height
* 6.5 foot long drain hose
* 7 PSI maximum draining air pressure
* Level sight gauge: Scale in litres and gallons
* Anti-splash screen/filter provides useful support for draining used filters
* Removable steel tool tray

Applications/Instructions

For gravity drain of fluids from engines, gearboxes or differentials of all motor vehicles placed
on an auto-lift or pit.
To evacuate tank:
1) Close all valves and raise funnel tubes up until it snaps
2) Apply air to the tank
3) Once the tank has pressurized, roll the tank to where you want to discharge the old oil
4) Place drain tube in new container
5) Open the valve at the opposite end of the drain hose
