$17.25
Add to Cart

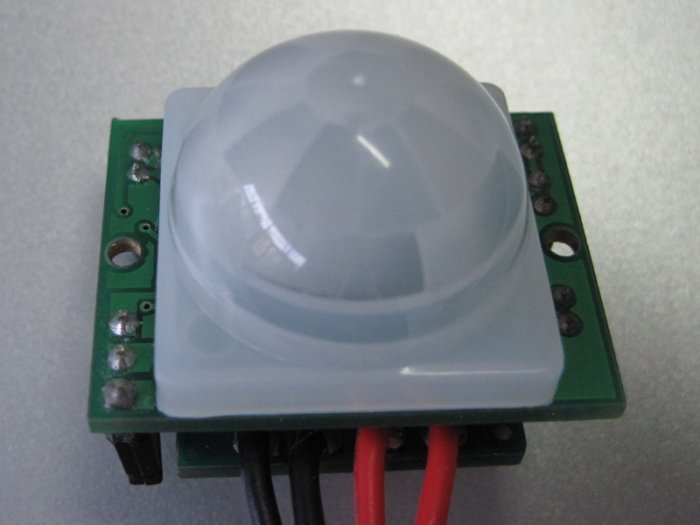

DIY PIR Motion Activated Switch 12V DC Lights
More than 10 available, 17 sold
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Specifications:
- Rated Voltage: 7V ~ 18 V
- Rated Current : 5A
- Maximum Instantaneous Current : 20A
- Micropower: quiescent current < 60 uA
- Time delay: 3--60 seconds ( can be adjusted , default: 3 s )
- Distance : 5 - 7 Meter ( can be adjusted )
- Trigger: L, Non-repeatable trigger / H, Repeat Trigger ( default )
- Detector range: 7M
- Detector angle: 140°
- Turn off during daylight: Use CDS ( default: included , weld)
- Dimensions: 24 x 32 x 28 mm (0.945 x 1.26 x 1.1 inch)
- Work temperature: - 20˚C ~ + 60˚C
Note: The output load can not be shorted, not use with a motor and other inductive load
- Rated Voltage: 7V ~ 18 V
- Rated Current : 5A
- Maximum Instantaneous Current : 20A
- Micropower: quiescent current < 60 uA
- Time delay: 3--60 seconds ( can be adjusted , default: 3 s )
- Distance : 5 - 7 Meter ( can be adjusted )
- Trigger: L, Non-repeatable trigger / H, Repeat Trigger ( default )
- Detector range: 7M
- Detector angle: 140°
- Turn off during daylight: Use CDS ( default: included , weld)
- Dimensions: 24 x 32 x 28 mm (0.945 x 1.26 x 1.1 inch)
- Work temperature: - 20˚C ~ + 60˚C
Note: The output load can not be shorted, not use with a motor and other inductive load
