$4,050.00
Add to Cart

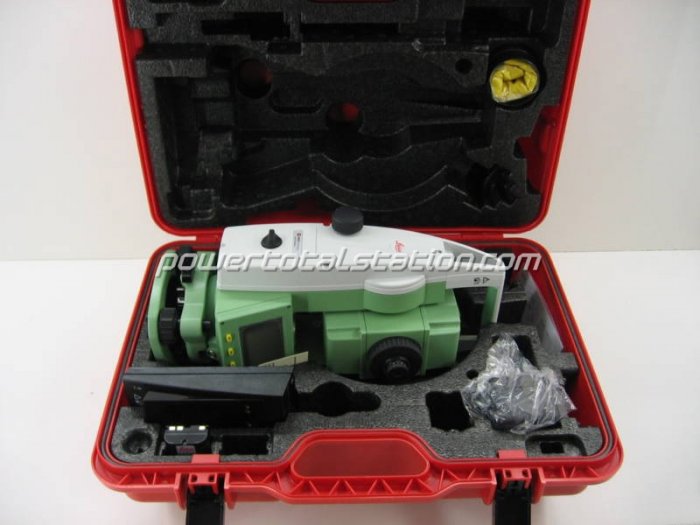

Leica Flexline TS02 [FTS02]
![Leica Flexline TS02 [FTS02]](https://s.ecrater.com/stores/144334/4b48b79bdb708_144334b.jpg)
5 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Magnification: 30X
Image: Erect
Angle accuracy: 7”/1 mgon
Angle minimum display reading: 1”/5”
Distance measurement: 1Prism: 3.500m/11.480ft, 3Prism: 5.000m/16.400ft
Distance measurement precision: +/-(1mm + 2ppm)
Distance measuring time: 0.2s in tracking mode
Distance measuring time: 0.8s in coarse mode
Distance measuring time: 1.2s and 3s initial in fine mode
Distance minimum display: 1mm
Angle units: Switchable between meter or feet, angle degrees or gon
Display: Dual, LCD, 8 lines of 32 characters, graphics capability, on- line help, messages
Keyboard: 32keys (numeric and alphanumeric input) 12-key numeric block, 20 function keys
Data input/output: RS-232C compatible, asynchronous serial
Data recording: Memory card, holder
Servo driving mechanism: Servo control with slow down function
Servo coarse movement shuttle control outside: 7 speed change
Servo fine movement: Jog control Min. 1 sec.
Servo max. Rotating speed: 50deg/sec.
Servo Max. auto tracking speed: 12deg/sec.
ATR1 mode: 1Km/3300’ with prism and 0.5 Km/1650’ with 360deg prism
Lock mode: 0.5 Km/1650’ with prism and 350m/1150’ with 360deg prism
Minimum distance range: 5m/16.4’ (ATR1) and 20m/65’ (LOCK)
Program memory: 3MB
Compensator: Liquid dual axis
Compensating range/Accuracy: 4’/1”
Laser plummet: Provided
Weight: 7.7 kg, 17 lbs including tribrach and battery
Image: Erect
Angle accuracy: 7”/1 mgon
Angle minimum display reading: 1”/5”
Distance measurement: 1Prism: 3.500m/11.480ft, 3Prism: 5.000m/16.400ft
Distance measurement precision: +/-(1mm + 2ppm)
Distance measuring time: 0.2s in tracking mode
Distance measuring time: 0.8s in coarse mode
Distance measuring time: 1.2s and 3s initial in fine mode
Distance minimum display: 1mm
Angle units: Switchable between meter or feet, angle degrees or gon
Display: Dual, LCD, 8 lines of 32 characters, graphics capability, on- line help, messages
Keyboard: 32keys (numeric and alphanumeric input) 12-key numeric block, 20 function keys
Data input/output: RS-232C compatible, asynchronous serial
Data recording: Memory card, holder
Servo driving mechanism: Servo control with slow down function
Servo coarse movement shuttle control outside: 7 speed change
Servo fine movement: Jog control Min. 1 sec.
Servo max. Rotating speed: 50deg/sec.
Servo Max. auto tracking speed: 12deg/sec.
ATR1 mode: 1Km/3300’ with prism and 0.5 Km/1650’ with 360deg prism
Lock mode: 0.5 Km/1650’ with prism and 350m/1150’ with 360deg prism
Minimum distance range: 5m/16.4’ (ATR1) and 20m/65’ (LOCK)
Program memory: 3MB
Compensator: Liquid dual axis
Compensating range/Accuracy: 4’/1”
Laser plummet: Provided
Weight: 7.7 kg, 17 lbs including tribrach and battery
