John Deere 1424 Mower-Conditioner Technical Service Repair Manual TM1264

This is an Original John Deere Service And Repair Manual Which Contains High Quality Images, Circuit Diagrams and Instructions to Help You to Service And Repair Your Machine. All Manuals Are Printable, without restrictions, contains images, Searchable Text and bookmarks.

MODELS COVERED:

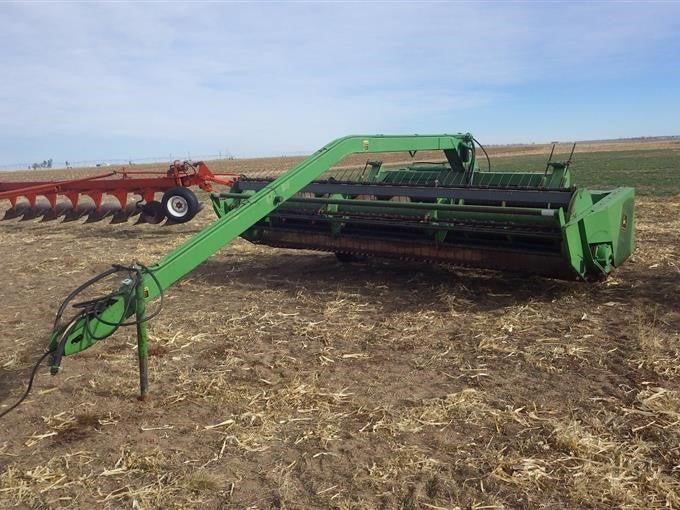

John Deere 1424 Mower-Conditioner

MANUAL CONTENTS:
SECTION 10 – GENERAL
Group 05 – Safety
Group 10 – Specifications and Torques
Group 15 – Diagnosing Malfunctions
Group 20 – Description
Group 25 – Lubrication
Group 30 – Special Tools
SECTION 20 – PLATFORM
Group 05 – General Information and Removal
Group 10 – Reel
Group 15 – Auger
Group 20 – Conditioner
Group 25 – Right and Left-Hand Cross Shafts
SECTION 30 – HYDRAULIC SYSTEM
Group 05 – General Information, Diagnosis and Tests
Group 10 – Hydraulic Pump
Group 15 – Planetary
Group 20 – Hydraulic Motor
Group 25 – Relief Valve, Shutoff Valve and Filter
Group 30 – Hydraulic Steering System
Group 35 – Hydraulic Lift System
SECTION 40 – CUTTING COMPONENTS
Group 05 – Knife Drive Case
Group 10 – Cutterbars
Group 15 – Knives
SECTION 50 – MISCELLANEOUS
Group 05 – Wheel Hub
Group 10 – Pivot Bushing
Group 15 – Tongue

Pages: 176
Language: English
Instant Download: After Payment
File Format: PDF (Portable Document Format)
