Product Details

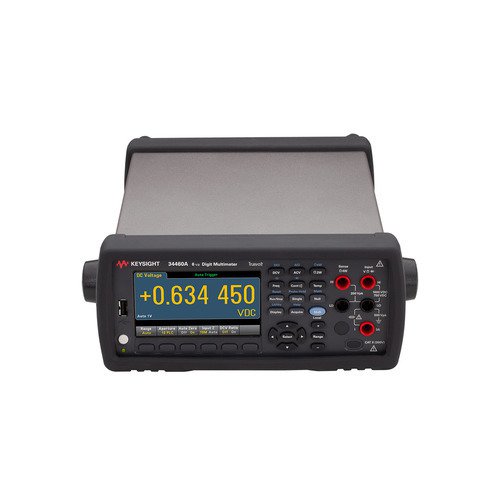

Keysight 34460A Truevolt Digital Multimeters
Truevolt DMMs are designed by the team that created the Keysight 34401A, the world best-selling digital multimeter. The measurements, reliability and familiarity of the 34401A are integrated in the design of the Truevolt 34460A and 34461A. Truevolt technology starts with an analog-to-digital converter which enables a patented metrology-grade architecture. Using this architecture, Keysight delivers a beautifully engineered balance of measurement resolution, linearity and speed at a value price.

Features and Benefits
• Bright 4.3in (109mm) high-resolution colour graphical display
• Intuitive menu-driven interface
• Press and hold a key to display built-in help
• Display operation can be customised to meet user needs
• Customised labels can be added
• Quick insight with graphical views of measurement results

Next Generation
The 34461A is the next generation replacement for the popular Keysight 34401A Digital Multimeter and offers 100% of the features with improved usability and measurement technology.

New features
The Digital Multimeter results are displayed in a way you have never seen before: Colour, graphical display with built-in bar chart, histogram, trend and statistics. See your results on a bright 4.3 inches, high-resolution display.
I/O: USB, LAN/LXI, GPIB (optional)
BenchVue Enabled: Control your 34460A from your PC to view and capture your data easily.

Truevolt Technology
The Truevolt Digital Multimeters are designed by the same team that created the 34401A. The 34460A represents everything you have known and trusted with your Keysight Digital Multimeter measurements for decades.

Digitising Data
Capturing a digital readout of log measurements or records for longer periods under PC control or upload data directly from the bench multimeter. Exporting data from a single Multimeter or multiple multimeters with time alignment, to programmes such as Microsoft Excel, Word and MATLAB.

Specifications
Attribute Value
Brand Keysight Technologies
Width 216.2 mm
Length 303.2 mm
Absolute Maximum Resistance Measurement 100 MΩ
Maximum Frequency 300 kHz
Dimensions 303.2 x 216.2 x 103.8 mm
Best DC Voltage Accuracy ±0.003 % +0.0006, ±0.0065 % +0.001, ±0.0085 % +0.001, ±0.011 % +0.001
Functions Measured AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
Multimeter Type Bench
Best Temperature Measurement Accuracy +0.05 °C, +0.1 °C
True RMS Yes
Best AC Voltage Accuracy ±4 % +0.5
Minimum Operating Temperature 0 °C
Height 103.8 mm
Model Number p Truevolt 34460A
Battery Life 10 yr
Weight 3.7 kg
Safety Category Level CAT II
Absolute Maximum DC Current Measurement 3 A dc
Best AC Current Accuracy ±0.23 % +0.04
Best DC Current Accuracy ±0.18 % +0.02, ±0.2 % +0.02 %, ±0.23 % +0.02 %
Absolute Maximum AC Current Measurement 3 A ac
Safety Category Voltage 300 V
Battery Type CR302
Absolute Maximum Temperature Measurement +150 °C, +600 °C
Absolute Maximum AC Voltage Measurement 1000 V ac
Best Resistance Measurement Accuracy ±0.03 % +0.01, ±0.8 % +0.01
Absolute Maximum DC Voltage Measurement 1000 V dc
Display Type Digital
Maximum Operating Temperature +55 °C
