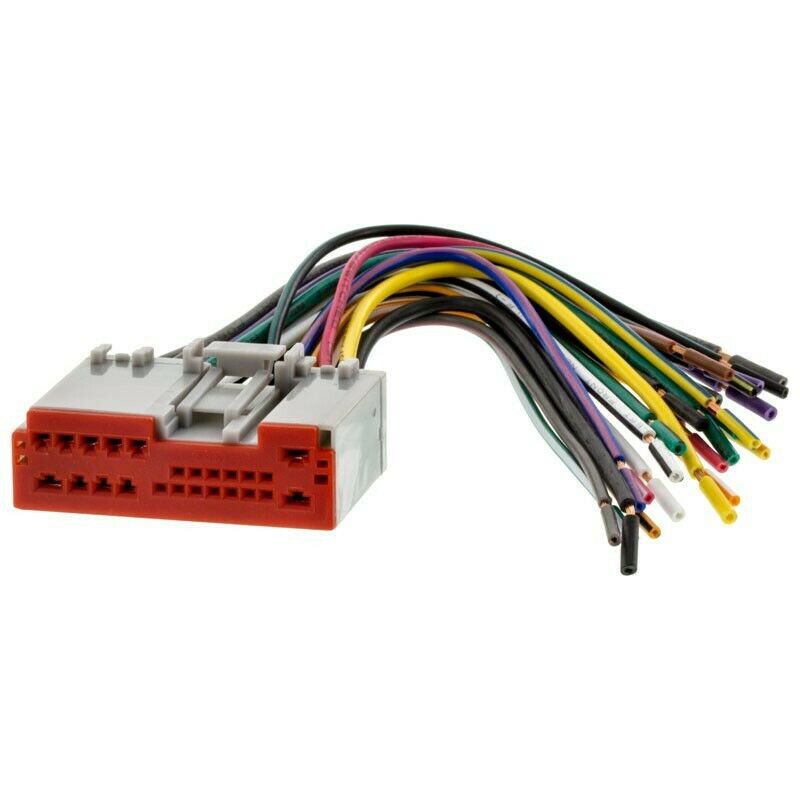

Wiring harness replacement stereo plug. Many 2003+ Ford original factory radio
ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.
DETAILS
This is a replacement for the 24 pin main plug found on the back of many Ford, Lincoln and Mercury radios. (If you need the opposite version check out store for the FDW-AP24.) Wiring pigtails of approximately 6 inches are attached.
This would be used if your original plug was cut off and you are trying to install a factory radio in the vehicle. This was the only 24-pin plug offered by Ford in the vehicles listed, so if you've counted 24 pins on your main connector, this is the one you need.
This style of plug was used on most Ford, Lincoln and Mercury radios from 2003 and newer, in some vehicles. See APPLICATIONS below for examples of vehicles that used this plug, as well as a list of Ford radio engineering (part) numbers.
This harness uses E.I.A. standard wiring colors. The wiring colors in your vehicle may differ. See more details on wiring colors in the ADDITIONAL INFO section.
APPLICATIONS
Some radio engineering (part) numbers known to use this plug are listed here. Other numbers are possible. If you think yours applies but you do not see it listed, please email us before purchasing.
--6L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 06 Explorer
--6L2T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 06 Explorer
--6L2T-18C868-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Explorer
--6L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Explorer
--6E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Fusion
--6E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 06 Fusion
--6E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 06 Fusion
--6E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 06 Fusion
--7A2T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Sport Trac
--7E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Fusion
--7E5T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Fusion
--7E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 07 Fusion
--7E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Fusion
--7E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Fusion
--7L1T-18C815-R (RA, RB, RC, RD, RE, RF, RG, RH, etc) -- 07 Expedition
--7L1T-18C869-E (EA, EB, EC, ED, EE, EF, EG, EH, etc) -- 07 Expedition
--7L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 07 Explorer
--7L2T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 07 Explorer
--7L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Explorer
--7L3T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, BI, BJ, BK) -- 07 F150
--7R3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 07 Mustang
--7R3T-18C869-M (MA, MB, MC, MD, ME, MF, MG, MH, etc) -- 07 Mustang
--7T4T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, BI, BJ, BK) -- 07 Edge
--8E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08 Fusion
--8E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 08 Fusion
--8E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08 Fusion
--8L2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 08/09 Explorer
--8L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 08/09 Explorer
--8L2T-18C869-H (HA, HB, HC, HD, HE, HF, HG, HH, etc) -- 08/09 Explorer
--8L3T-18C815-K (KA, KB, KC, KD, KE, KF, KG, KH, etc) -- 08 F150
--8L3T-18C869-F (FA, FB, FC, FD, FE, FF, FG, FH, etc) -- 08 F150
--8L3T-18C869-M (MA, MB, MC, MD, ME, MF, MG, MH, etc) -- 08 F150
--8E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 08 Fusion
--9E5T-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
--9E5T-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 09 Fusion
--9E5T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
--9E5T-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 09 Fusion
--9E51-18C815-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
--9E51-18C815-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 09 Fusion
--9E51-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Fusion
--9E51-18C869-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 09 Fusion
--9L1T-18C869-J (JA, JB, JC, JD, JE, JF, JG, JH, etc) -- 09 Expedition
--9L2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 09 Explorer
--AC3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2010+ F250-F450
--AL2T-18C815-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 2010 Explorer
--AL2T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2010 Explorer
--BC2T-18C869-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 2011+ E Van
--BC3T-18C869-A (AA, AB, AC, AD, AE, AF, AG, AH, etc) -- 2011+ F250/F350
--BC3T-18C869-E (EA, EB, EC, ED, EE, EF, EG, EH, etc) -- 2011+ F250/F350
--BC3T-19C157-B (BA, BB, BC, BD, BE, BF, BG, BH, etc) -- 2011+ F250/F350
--BC3T-19C157-C (CA, CB, CC, CD, CE, CF, CG, CH, etc) -- 2011+ F250/F350
--Other applications possible. Part number sticker must say VISTEON. Email us.
ADDITIONAL INFO
The color codes used on this harness comply with the E.I.A (Electronics Industry Association) standard. Depending on your vehicle manufacturer, the colors found on this harness may differ from the wiring colors found in your vehicle. Always refer to a wiring diagram for your exact vehicle for specific wiring details before making any connections.
EIA Color Codes and Connections
--Yellow 12V Battery / Constant
--Red 12V Ignition / Switched
--Black Ground
--Black / White Amplifier Ground
--Blue Power Antenna / Amplifier Remote Turn On
--Blue / White Amplifier Remote Turn On
--Orange Dash Light Dimmer / Illumination
--Orange / White Dash Light Dimmer / Illumination
--Orange / Black Dash Light Dimmer Ground / Illumination Ground
--Brown Mute / Not Used
--White Left Front Speaker (+)
--White / Black Left Front Speaker (-)
--Gray Right Front Speaker (+)
--Gray / Black Right Front Speaker (-)
--Green Left Rear Speaker (+)
--Green / Black Left Rear Speaker (-)
--Purple Right Rear Speaker (+)
--Purple / Black Right Rear Speaker (-)
RCA Color Codes
--White RCA Left Front Speaker
--Gray RCA Right Front Speaker
--Green RCA Left Rear Speaker
--Purple RCA Right Rear Speaker
--Red / White combinations
--Red RCA Right input
--White RCA Left input Video
--Yellow RCA Video
Additional Notes:
Cap off and insulate all unused wires individually to prevent short circuits. The harness offered here may not include all wire colors listed above. This is a generic list.
