nullFeatures:1. High pressure: generally 4-7kg2. Low power consumption: only 1.4-2.4a.3. Long service life: normal use, motor service life is more than 5 years.4. Corrosion resistance: the use of large and small diaphragm, from a variety of imported materials. With oil resistance, heat resistance, acid resistance, alkali resistance, corrosion resistance, chemical resistance and other properties.

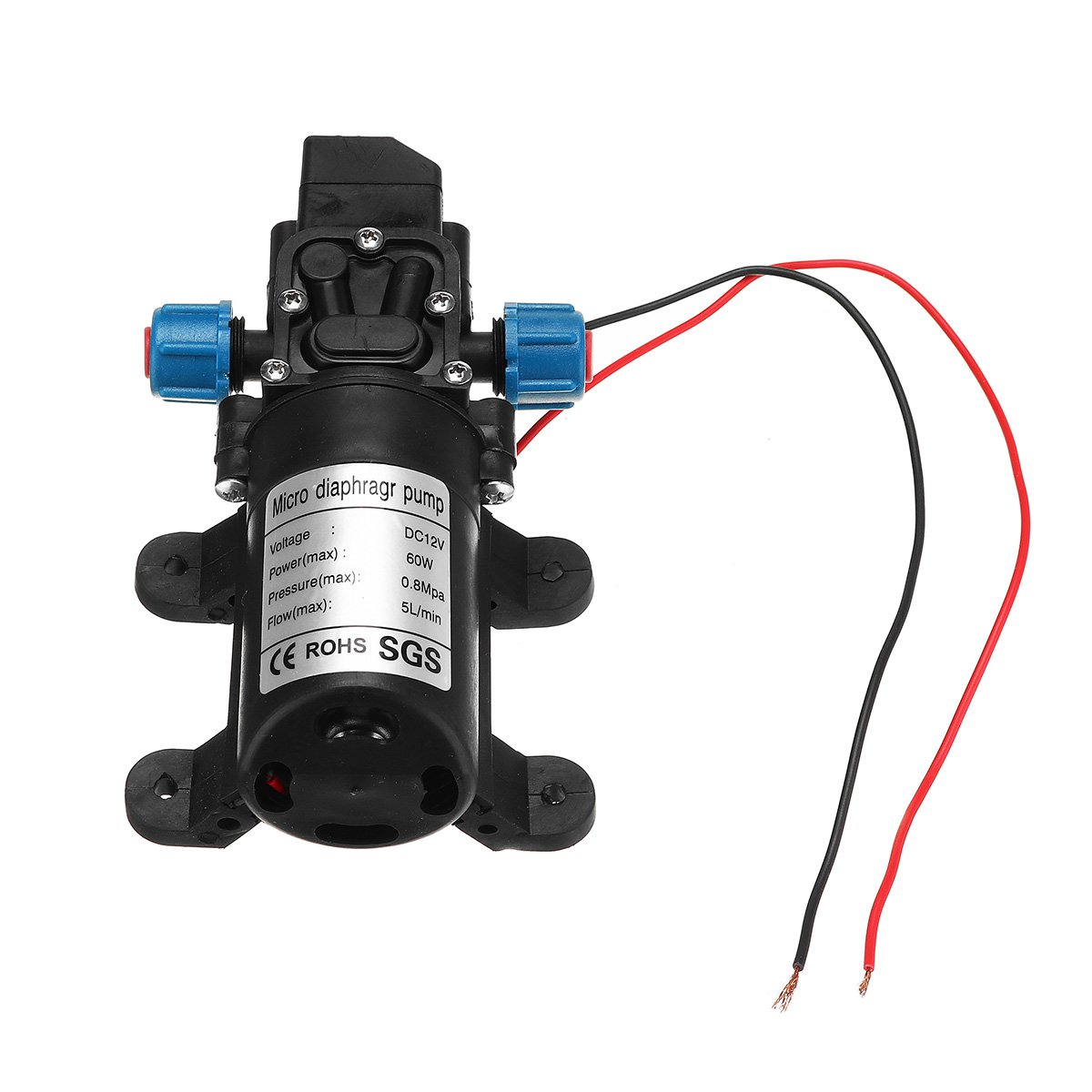

Specification:Type: A: Two-sided thread, B: Two-sided straight pipeVoltage: 12VCurrent: about 4-5aProtection pressure: 0.8MPaGeneral pressure: 0.4-0.5mpaOpening flow: 3-5l / minExternal dimension: 160x100x60mmThe suction head is 1-2m and the lift is up to 30m.Flow capacity: 6L/MIN(6.0 Liters per minute) Working medium: no oil, no strong corrosive, non-acid and alkali, without solid particles of liquid;Medium temperature: 0 в„ѓ -100 в„ѓ
Package included:1x Pump
Usage:1. The direction of arrow on the water pump is the water outlet.2. Wires are not divided into positive and negative poles.3. The water pump can be placed in any direction.
Precautions for use:1. Do not soak in water.2. The pressure adjusting screw can not be adjusted at will. Before delivery, the pressure has been adjusted. If it is adjusted at will, it is easy to increase the backflow pressure, and it is easy to hold and burst the outlet pipe.3. The water inlet must be equipped with filtering device, and no impurities can enter. Otherwise, it is easy to block the water pump, resulting in pressure reduction or even no water.
Common faults and Troubleshooting:1. With electricity, the water pump does not rotate. Check whether the wires behind the motor fall off.2. The water pump rotates and sprays water, but the amount of fog is small and the pressure is reduced. Turn on the water pump and check whether there is any blockage in the pump cavity. If the motor bracket is loose, tighten the screws. Note that the inlet and outlet valves cannot be installed reversely.3. After half a year or one year, the pressure decreases and the volume of spray is small. Turn on the water pump, tighten the screws of the motor bracket; change the direction of the small die plate up and down in the cavity, or change the small grinding plate.
Scope of use:Vehicle cleaning, ship, beverage, carpet cleaning, ground cleaning, water purification and water treatment equipment.1. The electric sprayer used in the production of agriculture can also be equipped with an electric sprayer by hand pressure sprayer (directly installed with a mini pump on the hand pressure sprayer, and then equipped with a battery or portable lamp).2. Solve the problem of using water for eating, washing, bathing, toilet and washing in vehicles, ships, yachts and boats.3. Food and beverage processing and processing equipment to realize the transfer, distribution and filling of fluid food.4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, water pipe pressurization system, etc.5. Solar energy industry.6. Water purification industry. For example, purification equipment, water treatment equipment, drinking water machine, pure water machine, etc. It can be used for production enterprises such as soft towel machine, drinking machine, coke machine, dishwasher, sterilizer, solar bonsai, automobile glass washing, etc.7. Other equipment and systems requiring liquid transfer, injection and even metering. For example, garbage truck, sprinkler, carpet cleaning equipment, ground cleaning equipment, vehicle cleaning equipment, road construction equipment, dishwasher, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling system, pressurization system, etc.
