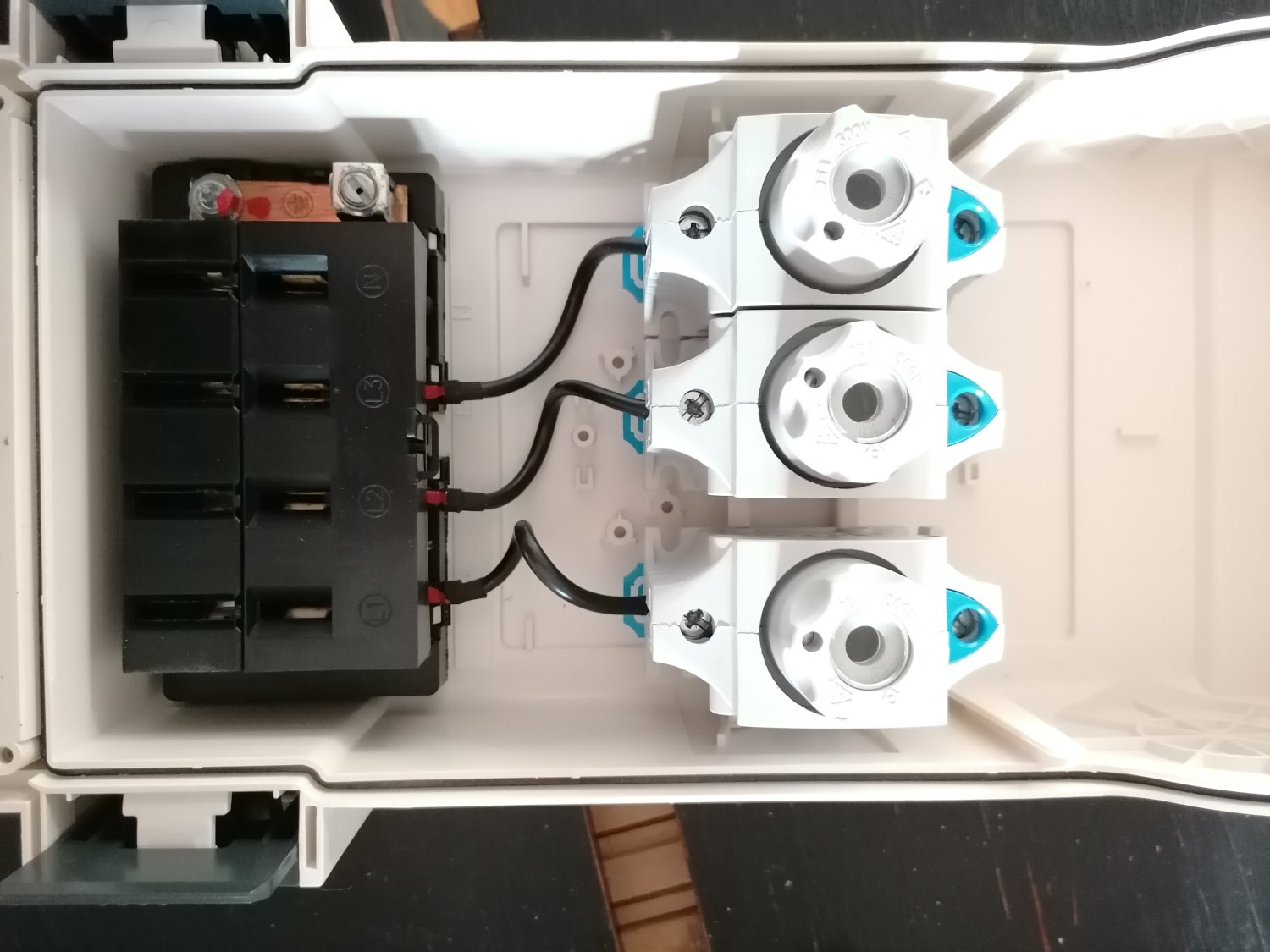

TAP OFF UNIT 25A FUSE E27 from Schneider Electric (Newer used)

range of product
Canalis
range compatibility
KT busbar trunking
KS busbar trunking
product or component type
Tap-off unit
busbar trunking compatibility
Canalis KS busbar trunkingplug-in
Canalis KT busbar trunking with KS type plug-in
[Ie] rated operational current
25 A at 35 °C
protection type
fuse isolator: Diazed fuse, size E27 conforming to DIN
provided equipment
fuse to be ordered separately
mounting mode
Plug-in with fixed polarity
tap-off unit polarity
3L+N+PE
colour
White (RAL 9001)
Complementary
device application
Medium power distribution
[Ue] rated operational voltage
230...690 V depending on protective device
[Uimp] rated impulse withstand voltage
6.8 kV
[Ui] rated insulation voltage
690 V depending on protective device
network frequency
50/60 Hz
electrical connection
Cable clamp terminal - ISO50 25 mm² flexible
Cable clamp terminal - ISO50 25 mm² rigid
door/cover opening side
Right
tap-off unit disconnection mode
By opening the door
standards
IEC 61439-1
IEC 61439-6
body material
Plastic
width
356 mm
depth
103 mm
depth (door open)
432.5 mm
height
167 mm
net weight
2.4 kg
Environment
earthing system
TT
TN-S
IT
IP degree of protection
IP55 conforming to IEC 60529
IK degree of protection
IK08 conforming to IEC 62262
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh Declaration
REACh free of SVHC
Yes
EU RoHS Directive
Compliant
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Yes
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Product Environmental Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance
Halogen free product
