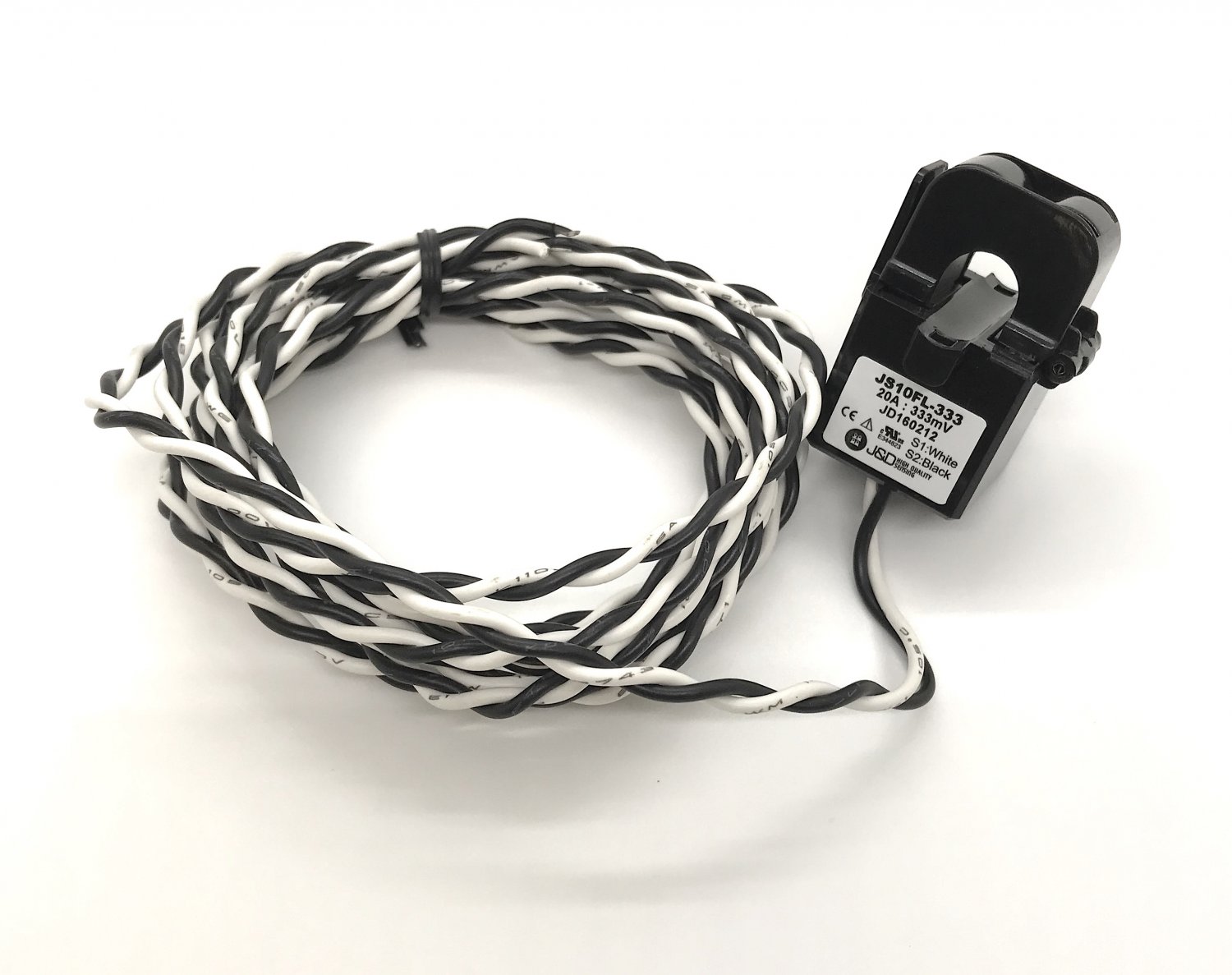

eGauge 20A AC Split-core CT Clamp by J&D Smart Sensing JD-SCT-010-0020

Split-core CTs from J&D Sensing offer a well-constructed hinged body and are accurate to +/-1% from 1%-100% of their stated current rating, offering a 333mV output based on the ratio from the source current. The quantity of physical size options allow for a flexible installation. Each current transformer size has a hinge and clipping mechanism, making it easy to close the CT in tight situations.

Applications
• Switchgear
• Power meters
• General sets
• Distributed measurement systems
• Control panels

Features
• PC spring, output-terminal, secure locking hinge, one-touch structure make easy to install to the existent equipment such as a power distribution boards.
• Isolated plastic case recognized according to UL94-V0
• UL / EN 61010 - 1 certified

Benefits
• Small-size, light-weight
• Simple Installation
• Over-Voltage protection circuit is installed

Inner Diameter: 10mm (0.39”) Round
Outer Diameter: 40.5mm x 23.7mm x 26.6mm (1.6” x 0.93” x 1.05”)
Lead Color: S1 White, S2 Black
Lead Length: 11 feet
Amperage: 20A
Amperage Range: 1%-100%
Accuracy: Class 1.0 +/- 1%
System Voltage: 720V(0.72kV)
Compliant with IEC/EN61869-2 & IEC61010-1
Operating Temperature Range: -20°C to 55°C
Relative Humidity: 0-85% non-condensing
Test Voltage: 3kV for 1 minute
Frequency Range: 50/60Hz
Protection Level: 3.0V0-P
Insulation Category: Cat II or Cat III 600VAC

Manufacturer: J&D Smart Sensing for eGauge
eGauge Part JD-SCT-010-0020
J&D Smart Sensing Part JS10FL-333 JD160212

Warranty: Old store stock, items are new and unused.

This item is sold as-is and cannot be returned.
