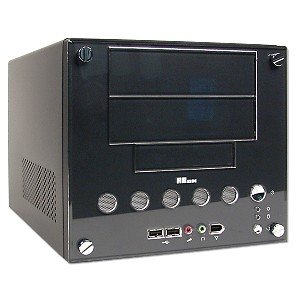

Albatron ABox 865G Socket 478 Barebone System EVRTK

** Albatron ABox 865G Socket 478 Barebone System **- NEW

The ABox 865G chassis is designed to mini-pc dimensions of
8.8 x 7.8 x 12.9-inches. The outer casing was designed with
a unique Anodized Chassis Coat that protects it from
scratches and scrapes. The ABox, Can house two 5.25 drives
and one 3.5 drive. The ABox 865G has Intel 865G and ICH5
chipsets and can support the latest Socket 478, FSB 800 MHz
Prescott processors. This mainboard also is capable of
implementing Dual Channel DDR 400 MHz memory providing 6.4
GB/s data transfer rates between processor and memory. In
addition, the Northbridge 865G chip also integrates Intels
Extreme Graphics 2 feature. The ABox also provides an AGP
8x slot, a built-in Marvell Ethernet interface providing
efficient, reliable network connectivity. It also provides
a Mini-PCI slot and a proprietary Albalink wireless
interface both supporting the 802.11g Wireless Ethernet
standard.

--> General Features:
- Black case
- Anodized Chassis Coat
- Space saving design
- Socket 478 Northwood/Prescott & Celeron/Celeron D support

--> Front Panel Features:
- PC power button
- PC reset button
- Two (2) 5.25-inch drive bays
- One (1) 3.5-inch drive bay
- Two (2) USB ports
- Headphone/Mic Jacks
- One (1) Firewire port

--> Motherboard Features:
- Model: ABox 865G
- Intel 865G chipset
- Socket 478 Northwood/Prescott & Celeron/Celeron D
- Supports 800FSB processors
- Supports 2 DIMM DDR 400 MHz up to 2 GB max (Dual Channel
Support)
- Built-in SATA interface
- Two (2) UDMA/133 controllers
- One (1) Floppy port
- IEEE 1394 integrated FireWire
- Intel Extreme Graphics 2 integrated 8x AGP video
- AC'97 integrated audio
- Integrated 10/100 Ethernet controller
- Albalink wireless interface

--> Expansion Slots:
- One (1) 8x AGP slot
- One (1) PCI slot
- Two (2) 184-pin DIMM slots

--> I/O Ports:
- Two (2) PS/2 ports
- One (1) 15-pin standard VGA connector
- Two (2) SPDIF connectors (one in and one out)
- Two (2) 6-pin IEEE 1394 Firewire port (one on front and
one on rear)
- Six (6) USB ports (four at front and two on back)
- One (1) RJ-45 standard Ethernet jack
- Line-in, microphone, and line-out jacks at back
- Microphone and headphone jacks at front

--> Supported Processors:
- Socket 478 for Intel Northwood CPU and up to 3.2G

--> Case Features:
- Two (2) 5.25-inch external drive bay
- One (1) 3.5-inch external drive bays
- One (1) 3.5-inch internal drive bays

--> Power Supply Features:
- 220-watt power supply
- Model: ENP-2222D
- 115V-230V manual switch
- +3.3V, 17A
- +5V, 13A
- +12V, 16A
- -12V, 0.3A
- +5Vsb, 2A

--> Case Dimensions:
- 7.8 x 8.8 x 12.9 (H x W x D approximate)

--> Regulatory Approvals:
- FCC
- CE

--> Package Includes:
- Albatron ABox 865G Barebone Socket 478 System
- Quick Installation Guide
- Driver and Utility CD
- Fan and Heatsink
- Power cord

** Requirements **

* Supported Socket 478 CPU
* Supported RAM
* Hard disk drive
* Optical drive
* VGA monitor or better
* Keyboard, mouse, etc.
* Available power outlet
