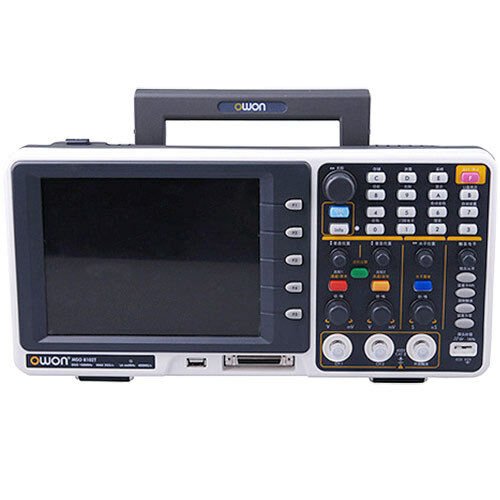

OWON MSO8202T Digital Logic Analysator Oscilloscope 200 Mhz 8 inch color LCD OWON MSO Series LA + digital oscilloscope Product Series : Multi-function DSO Main Features- 2 in 1 (DSO + LA) - 8 inch color LCD - USB data transmission supported - 20 group automatic measurement optionsDigital Storage Oscilloscope- Bandwidth : 60MHz - 200MHz - Sample rate : up to 2GS/s - Auto-scale function - FFTLogic Analyzer- Bandwidth : 100MHz - 200MHz - Sample rate : 20S/s - 2GS/s - 16 digital channelsWhat's in the package :1. Owon MSO8202T Mixed Logic Analyzer/Oscilloscope – 1 pc. 2. Logic analyzer module – 1 pc. 3. Measuring probes – 1 pair 4. Power cord – 1 pc. 5. USB data cable – 1 pc. 6. CD – 1 pc. 7. Probe adjust – 1 pc. 8. User's Manual – 1 pcApplicationdesign and debug circuit function test identified signals logic information education and training mixed signal circuit test Oscilloscope SpecificationModel NameMSO5022SMSO7102TMSO7102TDMSO8102TMSO8202TBandwidth25MHz100MHz100MHz200MHzSample Rate(Real time)100MS/s1GS/s (500MS/s for dual channels)2GS/s (1GS/s for dual channels)Rise time ≤14ns≤3.5ns≤1.7nsDisplay7.8''color LCD, STN display8.0'' color LCD , TFT screen, 640×480 pixelsChannelDual channels + external triggerHorizontal scale (s/div)5ns/div-5s/div step by 1-2.5-52ns/div~100s/div,step by 1~2~51ns/div~100s/div step by 1~2~5DC accuracy(Average)Average>16:±(3%reading+0.05div) for ΔVVertical Sensitivity5mV/div -5V/div2mV/div -10V/divDC Gain Accuracy±3%Vertical resolution (A/D)8 bits (2 channels simultaneously)Interpolation(sin x)/xMax. Input Voltage300V (DC + AC PK-PK)400V ( DC + AC PK-PK )Input impedance1MΩ±2% in parallel with 20pF±3pFProbe attenuation factor1X, 10X, 100X, 1000XTrigger ModeEdge, Video, Alternate,Pulse,SlopeAcquisition modeNormal, Peak Detect, AverageRecord lengthMax.6K points on each channelMax.2M pointsWaveform storage4 waveformsAutomatic MeasurementVpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,Width,Overshoot ,Preshoot ,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B↑, Delay A→B↓Waveform math+, - , ×, ÷, FFTPower supply100-240V ACRMS,50Hz/60Hz,CATIILissajou’s figureBandwidth25MHz100MHz200MHzPhase difference±3 degreesCommunication interfaceUSB,Support USB Flash Disk StarageFuse1A, T grade, 25
