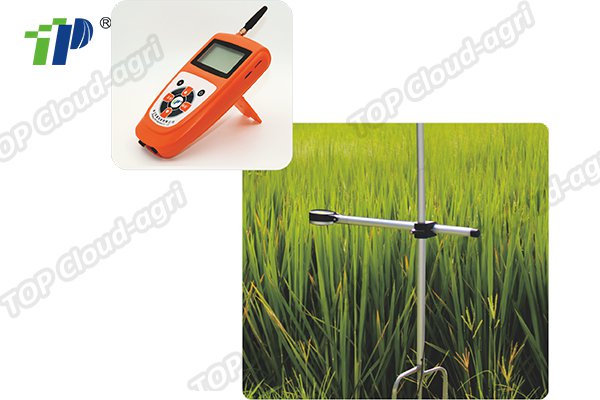

Plant Canopy analyzer

Plant Canopy analyzer

Great Measurements without Disturbing the Canopy
Nodel:TOP-1200

Brief Introduction:

Plant Canopy Analyzer can measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization.This canopy analyzer uses a non-destructive method and it is widely applied for farming production and agricultural research, canopy energy resource investigation.



Characteristic:

· High waterproof grade: all aluminum alloy, waterproof grade IP

· Using visible/near-infrared light reflection spectrum technology and multi-channel spectral information scanning technology. The vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters, plant pests and diseases can be quickly determined.

· Many software analysis functions: it can analyze the vegetation index RVI, CMM, nitrogen content in the crop leaf layer, nitrogen accumulation, leaf area index, leaf dry weight, etc.



Host function:

· With Cloud platform and mobile APP.

· With GPS positioning.

· With voice broadcast



Technical Parameter:

Working environment: 0~ 60 ℃, 0 ~ 100% RH (no condensation of water vapor)

Storage environment:-10 ~ 80℃, 0 ~ 40% RH

Power supply: 8 ~ 12VDC

Light Source: LED

Center Wavelength: 680nm, 800nm

Spectral bandwidth:
